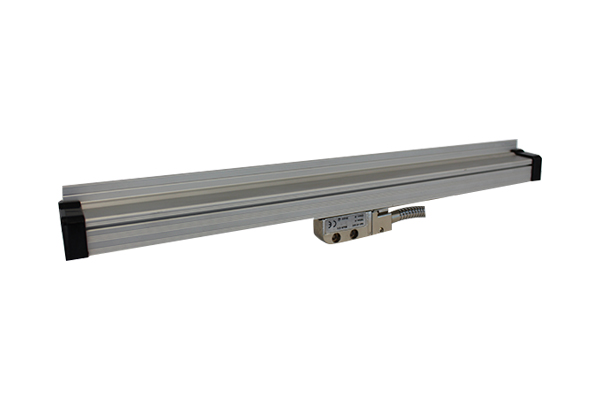

    EMS110 MAGNETIC LINEAR ENCODER

    EMS110 Magnetic Scales are used in lathe, milling, boring, grinding, and similar machine tools, special machinery, and automation applications.

    The EMS110 Magnetic Scales provide non-contact measurement since there is no mechanical sliding between the reader sensor and the scale.

    The supply voltage is produced as 5Vdc - TTL or 24Vdc - PPL.

    It provides an incremental (encoder/pulse) signal output.

    It has a standard resolution of 5 µm (0.005).

    It can be applied up to a measurement length of 20 meters.

    The EMG120 or EMG121 Magnetic Reader Sensors operate non-contact at a maximum distance of 2 mm.

    By eliminating mechanical shrinkage and parallelism issues, the reader sensor is protected against breakage.

    With an IP67 protection class, they are resistant to oil, water, dust, and other environmental factors.

    Its Z-shaped body allows it to be applied in tight machine spaces.

    The cables are protected with a Steel Galvanized Spiral Tube to prevent damage under heavy production conditions.

    Cable lengths are produced as standard 3.5 and 5 meters. Optionally, they can be produced as a single piece up to 50 meters.

    You can use EMS320 Magnetic Scales with EMOS80, EMOS100 Digital Indicators, PLCs, CNC Systems, Digital Counters, and all devices with Encoder Reading features.

    Resolution 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage PPL: 10..30 VDC or TTL: 5 VDC
    Housing Material Aluminum Z Type Profile
    Output Type Push-Pull or TTL RS422 Line Driver
    Protection Class IP67
    Sensor-Band Working Distance 1 mm (Max. 2 mm)
    Magnetic Band Type B5 (Optional B2)
    Lifetime Infinite (non-contact)
    Output Signals A, /A, B, /B, Z, /Z
    Repeatability ±1 Pulse
