    EMS320 Magnetic Linear Encoders

    EMS320 Magnetic Scales are used in lathes, milling machines, boring mills, grinding machines, special machines, and automation applications. They offer a standard resolution of 5 µm (0.005) and are manufactured with measurement/stroke lengths up to 1000 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

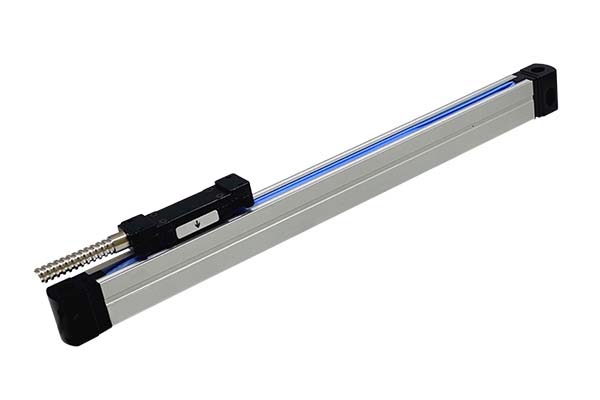

    EMS320 MAGNETIC LINEAR ENCODER

    EMS320 Magnetic Scales are used in lathes, milling machines, boring mills, grinding machines, special machines, and automation applications.

    EMS320 Magnetic Scales perform non-contact measurements as there is no mechanical friction between the reader sensor and the scale.

    They are produced with a supply voltage of 5Vdc - TTL or 24Vdc - PPL.

    Provide incremental (encoder/pulse) output signals.

    Standard resolution is 5 µm (0.005).

    Manufactured with measurement/stroke lengths up to 1000 mm.

    EMG320 Magnetic Reader Sensors, with their spring-loaded design, minimize mechanical contraction and parallelism issues, protecting the sensor from breakage.

    The EMG320 Reader Sensor is mounted using shafts within an aluminum profile.

    Equipped with a sealed protection system.

    With IP67 Protection Class, they are resistant to oil, water, dust, and similar contaminants.

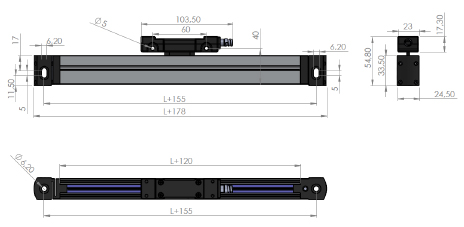

    Thanks to its 24.50 mm body size, it can be installed in compact machine spaces.

    Cables are protected with Steel Galvanized Spiral tubing to withstand harsh industrial conditions.

    Standard cable lengths are 3.5 and 5 meters. Optionally, single-piece cables up to 50 meters can be produced.

    EMS320 Magnetic Scales can be used with EMOS80, EMOS100 Digital Displays, PLCs, CNC Systems, Digital Counters, and all devices with encoder reading capability.

    Resolution 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage PPL: 10..30 VDC or TTL: 5 VDC
    Output Type Push-Pull or TTL RS422 Line Driver
    Protection Class IP67
    Pole Distance 2 mm, 1 mm
    Magnetic Band Type B2
    Output Signals A, /A, B, /B, Z, /Z
    Repeatability ±1 Pulse
    Accuracy ±40 µm/m or ±20 µm/m
