    EMS200 Magnetic Linear Encoders

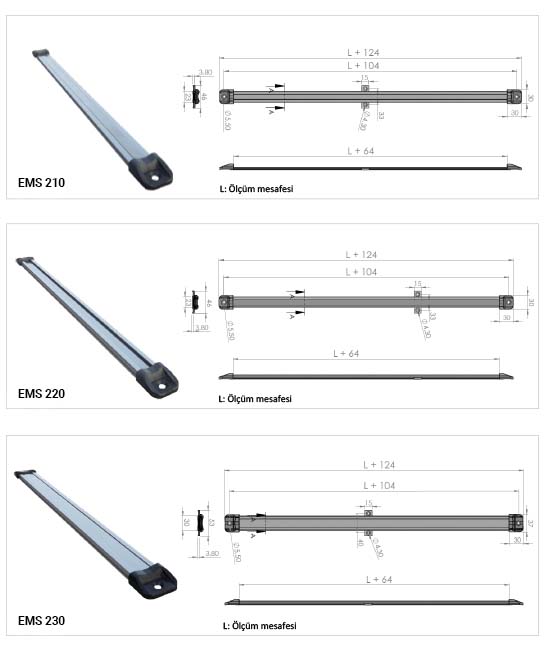

    EMS210-220-230 Magnetic Scales are used in lathes, milling machines, boring mills, grinding machines, special machines, and automation applications. They offer a standard resolution of 5 µm (0.005) and can be applied up to a measurement length of 20 meters.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

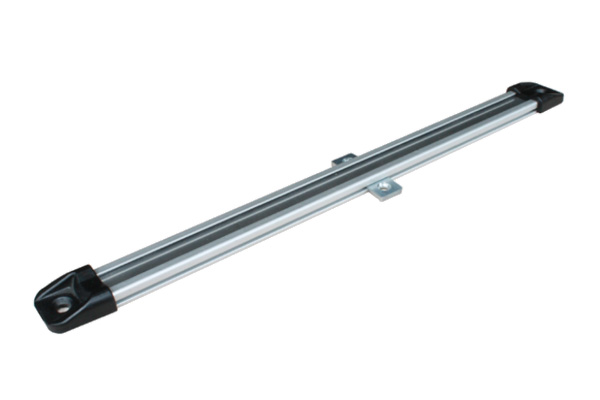

    EMS200 MAGNETIC LINEAR ENCODER

    EMS200 Magnetic Scales are used in lathes, milling machines, boring mills, grinding machines, special machines, and automation applications.

    Magnetic scales perform non-contact measurements as there is no mechanical friction between the reader sensor and the scale.

    They are produced with a supply voltage of 5Vdc - TTL or 24Vdc - PPL.

    Provide incremental (encoder/pulse) output signals.

    Standard resolution is 5 µm (0.005).

    They can be applied up to a measurement length of 20 meters.

    EMG120 or EMG121 Magnetic Reader Sensors work non-contact from a maximum distance of 2 mm.

    They protect the reader sensor from breakage by eliminating mechanical contraction and parallelism issues.

    With IP67 Protection Class, they are resistant to oil, water, dust, and similar contaminants.

    Thanks to their slim body, they can be installed in compact machine spaces.

    The cables are protected with Steel Galvanized Spiral tubing to prevent damage under harsh industrial conditions.

    Standard cable lengths are 3.5 and 5 meters. Optionally, single-piece cables up to 50 meters can be produced.

    EMS320 Magnetic Scales can be used with EMOS80, EMOS100 Digital Displays, PLCs, CNC Systems, Digital Counters, and all devices with encoder reading capability.

    Resolution 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage PPL: 10..30 VDC or TTL: 5 VDC
    Housing Material Aluminum
    Protection Class IP67
    Sensor-Band Working Distance 0.1 mm to 2 mm
    Magnetic Band Type B5 or B2
    Lifetime Infinite (non-contact)
