    EMS320 Magnetic Scales

    EMS320 Magnetic Scales are used in lathes, milling machines, boring machines, grinding machines, and other machine tools, as well as in special machines and automation applications. It has a standard resolution of 5 µm (0.005). It is produced with measurement/stroke lengths of up to 1000 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

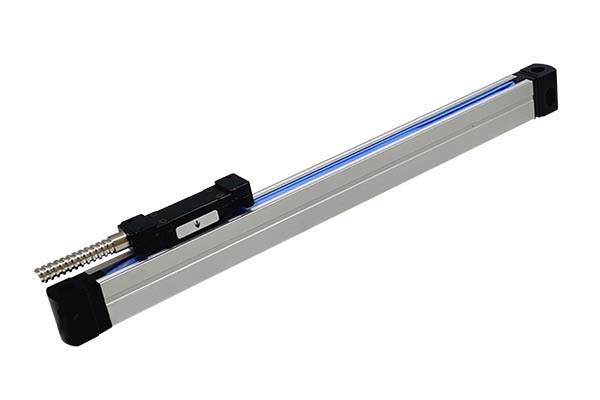

    EMS320 MAGNETIC SCALES

    EMS320 Magnetic Scales are used in lathes, milling machines, boring machines, grinding machines, and other machine tools, as well as in special machines and automation applications.

    The EMS320 Magnetic Scales provide non-contact measurements as there is no mechanical friction between the reader sensor and the scale.

    The supply voltage is produced as 5Vdc - TTL or 24Vdc - PPL.

    It provides incremental (encoder/pulse) output signals.

    It has a standard resolution of 5 µm (0.005).

    It is produced with measurement/stroke lengths of up to 1000 mm.

    The EMG320 Magnetic Reader Sensors, with their spring design, minimize mechanical distortions and parallelism issues, protecting the sensor from breakage.

    The EMG320 Reader Sensor is supported by shafts within an aluminum profile housing.

    It has a sealed protection system.

    With IP67 protection class, they are resistant to oil, water, dust, and other environmental effects.

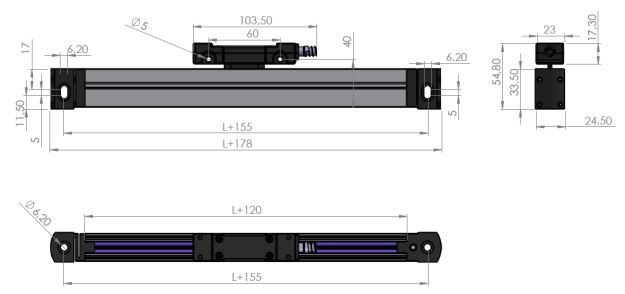

    With a body thickness of 24.50 mm, they can be applied to narrow machine spaces.

    The cables are protected by a galvanized steel spiral tube to prevent damage under harsh production conditions.

    Standard cable lengths are produced as 3.5 and 5 meters. Optionally, they can be produced in a single piece up to 50 meters.

    You can use EMS320 Magnetic Scales in EMOS80, EMOS100 Digital Displays, PLC, CNC systems, digital counters, and all devices with encoder reading capabilities.

    Resolution 1µm, 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage PPL: 10..30 VDC or TTL: 5 VDC
    Output Type Push-Pull or TTL RS422 Line Driver
    Protection Class IP67
    Pole Distance 2 mm, 1 mm
    Magnetic Tape Type B2
    Output Signals A, /A, B, /B, Z, /Z
    Repeatability ± 1 Pulse
    Accuracy ± 40 µm/m or ± 20 µm/m
