    TSG-150E

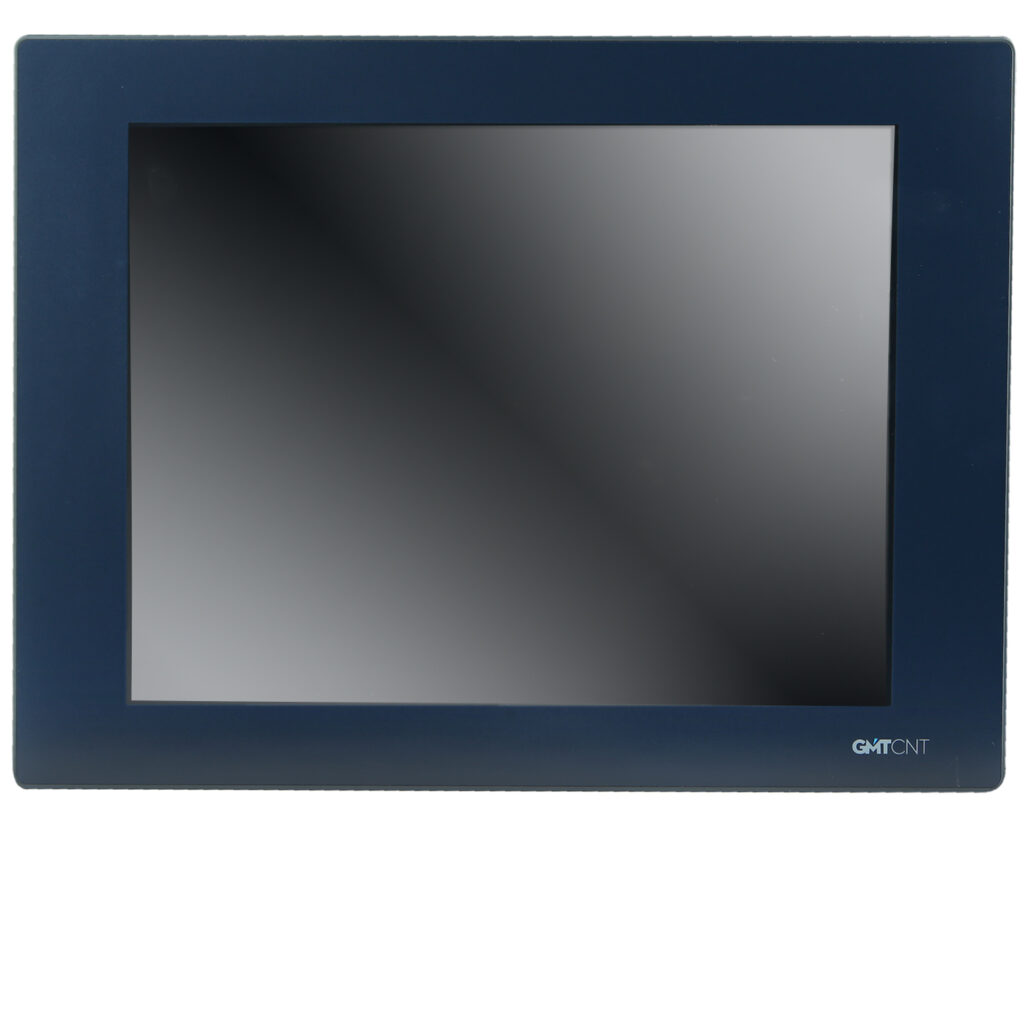

    It is a 15" TFT touchscreen HMI (1024x768) with 65k colors, RTC support, and broad PLC compatibility. Data recording, device connection, and PDF viewing can be done via USB Host. It also features an Ethernet port with MODBUS TCP support and enables remote access and control via VNC software.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    TSG-150E

    The TSG-150E is a 65k color TFT touchscreen operator panel designed for industrial applications. This product comes with a real-time clock (RTC) as a standard feature. Its user-friendly software has a wide library and supports all known PLCs.

    It is compatible with HP LaserJet P1100 series printers.

    With the PDF Viewer function, PDF files can be displayed.

    The USB Host feature allows data logging, program loading, and the connection of a keyboard, mouse, or webcam.

    This model, with its Ethernet port supporting MODBUS TCP communication, allows for fast and secure communication with the GLC39X and GLC49X series CPUs and easy integration into SCADA applications.

    With VNC software, you can access and monitor the device via Ethernet port through local networks or the internet on Windows, IOS, and Android platforms.

    The VNC Client feature allows monitoring and control between devices via the Ethernet port.

    15” TFT (16:9W) Screen Size, 1024 x 768 Resolution, ARM RISC 32bit 792MHz CPU, 100M Ethernet port.

    Display Type 15” TFT
    Resolution 1024 x 768
    Color 65k
    Backlight LED
    Brightness 420cd/m²
    Backlight Life >50,000 hours
    Touchscreen 4-wire precision resistance circuit
    Processor ARM RISC 32bit 792MHz
    Memory 128MB NAND Flash, 128MB DDR3
    RTC Yes
    Expansion Memory 1 USB Host
    Printer Port USB Slave (Pictbridge) / USB Host
    Ethernet Yes
    Program Loading MICRO USB / RS-232
    COM Port COM0: RS-232, RS-485, RS-422
    COM2: RS-232
    Power Consumption 16W
    Operating Voltage 24VDC
    Input Range 10VDC – 28VDC
    Instant Power Failure <3ms
    Scale Isolation Resistance >50MΩ (500VDC)
    Dielectric Strength Test 500VAC 1 minute
    Case Material Engineering Plastic
    Dimensions (mm) 398 x 298
    Panel Cut-out Size (mm) 383 x 283
    Weight (kg) 0.89
    Operating Temperature 0 to 50°C
    Operating Environment Humidity 10%RH to 90%RH, non-condensing
    Storage Temperature -20 to 60°C
    Storage Humidity 10%RH to 90%RH, non-condensing
    Impact Resistance Test 10Hz to 25Hz (X, Y, Z axes, 30 minutes)
    Cooling Method Air cooling
    Protection Rating IP65 (front panel)
    Certificates CE Marked, EN61000-6-2:2005/EN61000-6-4:2007+A1:2011
