    FLG-043

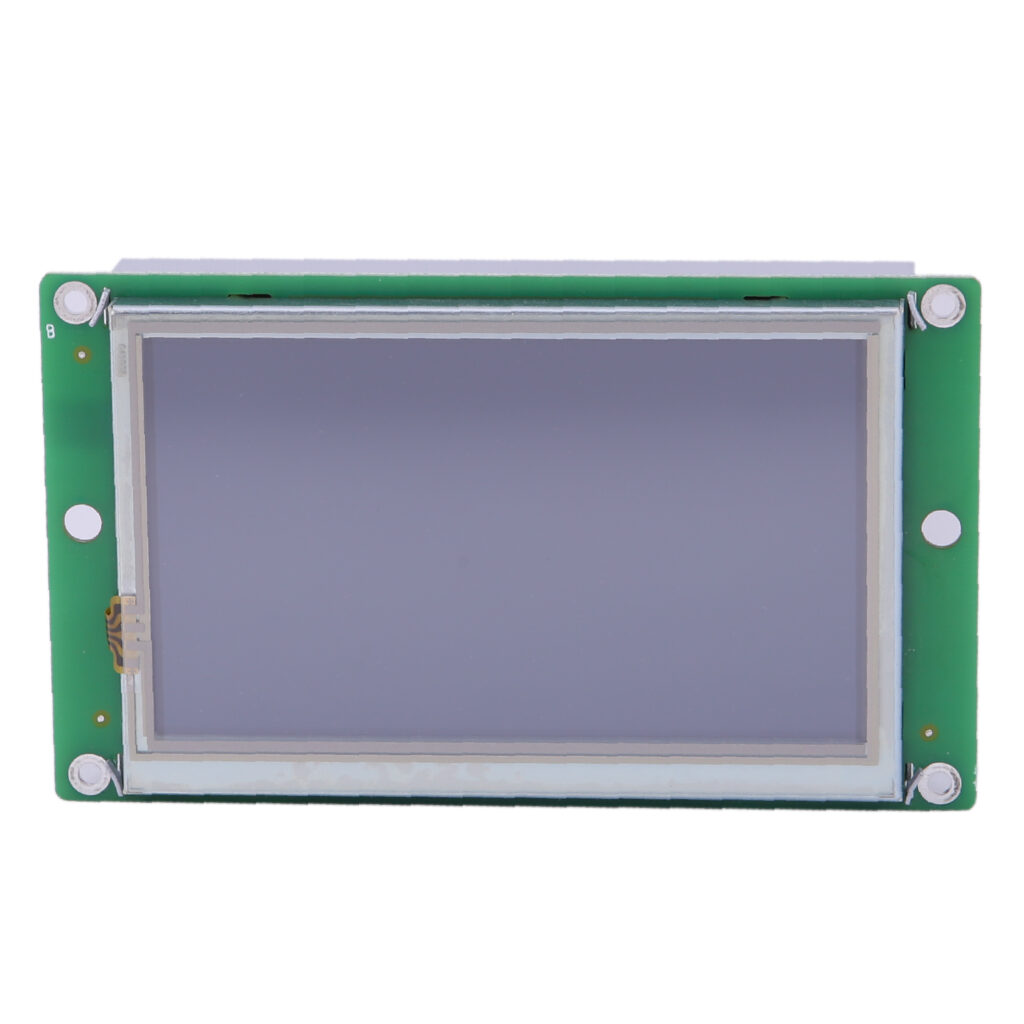

    It is a 16.77M color TFT touch panel designed for industrial applications. With RTC support and wide PLC compatibility, it supports all PLCs. It is compatible with HP LaserJet P1100 printers and provides PDF viewing. Equipped with a 4.3" TFT screen and an ARM RISC 32bit 800MHz CPU.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    FLG-043

    Endüstriyel uygulamalarda kullanılmak için geliştirilmiş 16,77M renkli TFT dokunmatik kasasız operatör panelidir. Bu üründe gerçek zaman saati (RTC) standart olarak mevcuttur. Kullanıcı dostu yazılımı geniş bir kütüphaneye sahiptir ve bilinen tüm PLC’leri desteklemektedir.

    HP LaserJet P1100 serisi yazıcılar ile uyumludur.

    PDF Viewer fonksiyonu ile PDF dosyaları görüntülenebilmektedir.

    4.3” TFT (16:9W) Ekran Boyutu, 480 x 272 Çözünürlük, ARM RISC 32bit 800MHz CPU.

    Display Type 4.3" TFT
    Resolution 480 x 272
    Color 16.77M
    Backlight LED
    Brightness 450cd/m²
    Backlight Lifetime >30,000 hours
    Touch Screen 4-wire capacitive touch
    Processor ARM RISC 32bit 800MHz
    Memory 128MB NAND Flash, 128MB DDR3
    RTC Yes
    Expansion Memory 1 USB Host
    Printer Port USB Host
    Ethernet -
    Program Loading MICRO USB / RS-232
    COM Port COM0: RS-232, RS-485, RS-422
    COM2: RS-232
    Power Consumption 2W
    Operating Voltage 24VDC
    Input Range 10VDC – 28VDC
    Instant Power Failure <3ms
    Isolation Resistance >50MΩ (500VDC)
    Dielectric Strength Test 500VAC 1 minute
    Enclosure Material Metal Case
    Dimensions (mm) 128 x 75 x 27
    Panel Mount Size (mm) 107.2 x 68.9
    Weight (kg) 0.2
    Operating Temperature 0 to 50°C
    Operating Humidity 10%RH to 90%RH, without condensation
    Storage Temperature -20 to 60°C
    Storage Humidity 10%RH to 90%RH, without condensation
    Cooling Method Air Cooling
    Certifications CE Marked
