    GHS-043

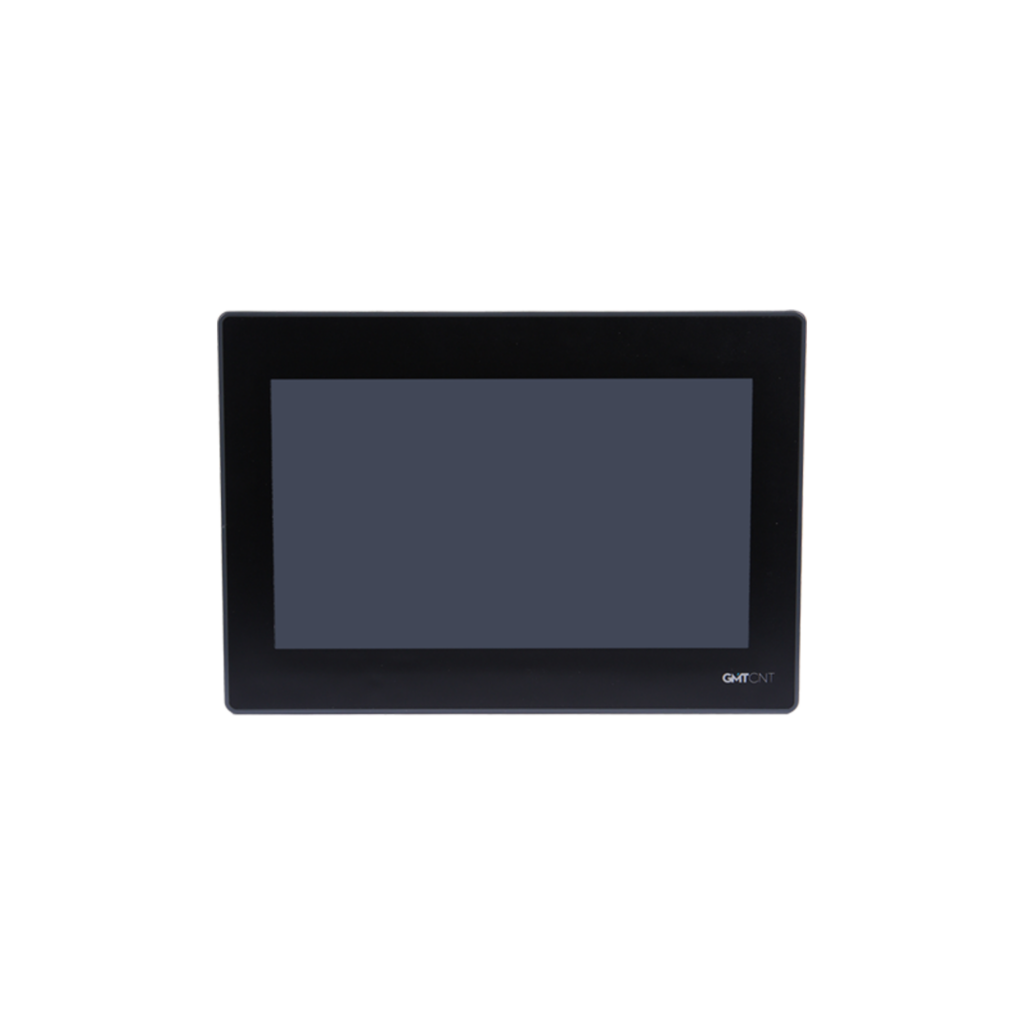

    It is an operator panel with a 16.77M color, 4.3” TFT touchscreen. It features RTC support, a wide library, and software compatible with all PLCs. It offers a PDF viewing function, HP LaserJet P1100 printer compatibility, 800x480 resolution, ARM Cortex-A7 1GHz processor, and 256MB NAND Flash memory.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

    GHS-043

    Endüstriyel uygulamalarda kullanılmak için geliştirilmiş 16,77M renkli TFT dokunmatik operatör panelidir. Bu üründe gerçek zaman saati (RTC) standart olarak mevcuttur. Kullanıcı dostu yazılımı geniş bir kütüphaneye sahiptir ve bilinen tüm PLC’leri desteklemektedir.

    HP LaserJet P1100 serisi yazıcılar ile uyumludur.

    PDF Viewer fonksiyonu ile PDF dosyaları görüntülenebilmektedir.

    4.3” TFT (16:9W) Ekran Boyutu, 800 x 480 Ekran Çözünürlüğü, ARM Cortex-A7 Dual Core 1GHz İşlemci, 256 MB NAND Flash +128 MB DDR3 Hafıza

    Display Type 4.3” TFT
    Resolution 800 x 480
    Color 16.77M
    Backlight LED
    Brightness 500cd/m²
    Backlight Life >30,000 hours
    Touch Screen 4-wire precise resistive circuit
    Processor ARM Cortex-A7 Dual Core 1GHz
    Memory 256 MB NAND Flash + 128 MB DDR3 Memory
    RTC Yes
    Expansion Memory -
    Printer Port USB Slave (Pictbridge)
    Ethernet -
    Program Loading MICRO USB / RS-232
    COM Port COM0: RS-232, RS-485, RS-422
    COM2: RS-232
    Power Consumption 2.4W
    Operating Voltage 24VDC
    Input Range 10VDC – 28VDC
    Instant Power Loss <3ms
    Scale Insulation Resistance >50MΩ (500VDC)
    Dielectric Strength Test 500VAC 1 minute
    Enclosure Material Engineering Plastic
    Dimensions (mm) 132 x 102 x 33
    Panel Cutout Dimensions (mm) 119 x 93
    Weight (kg) 0.21
    Operating Temperature 0 to 50°C
    Operating Humidity 10%rH to 90%rH, without condensation
    Storage Temperature -20 to 60°C
    Storage Humidity 10%rH to 90%rH, without condensation
    Impact Resistance Test 10Hz to 25Hz (X, Y, Z directions, 30 minutes)
    Cooling Method Air Cooling
    Protection Class IP65 (front panel)
    Certifications CE marked, EN61000-6-2:2005/EN61000-6-4:2007+A1:2011
