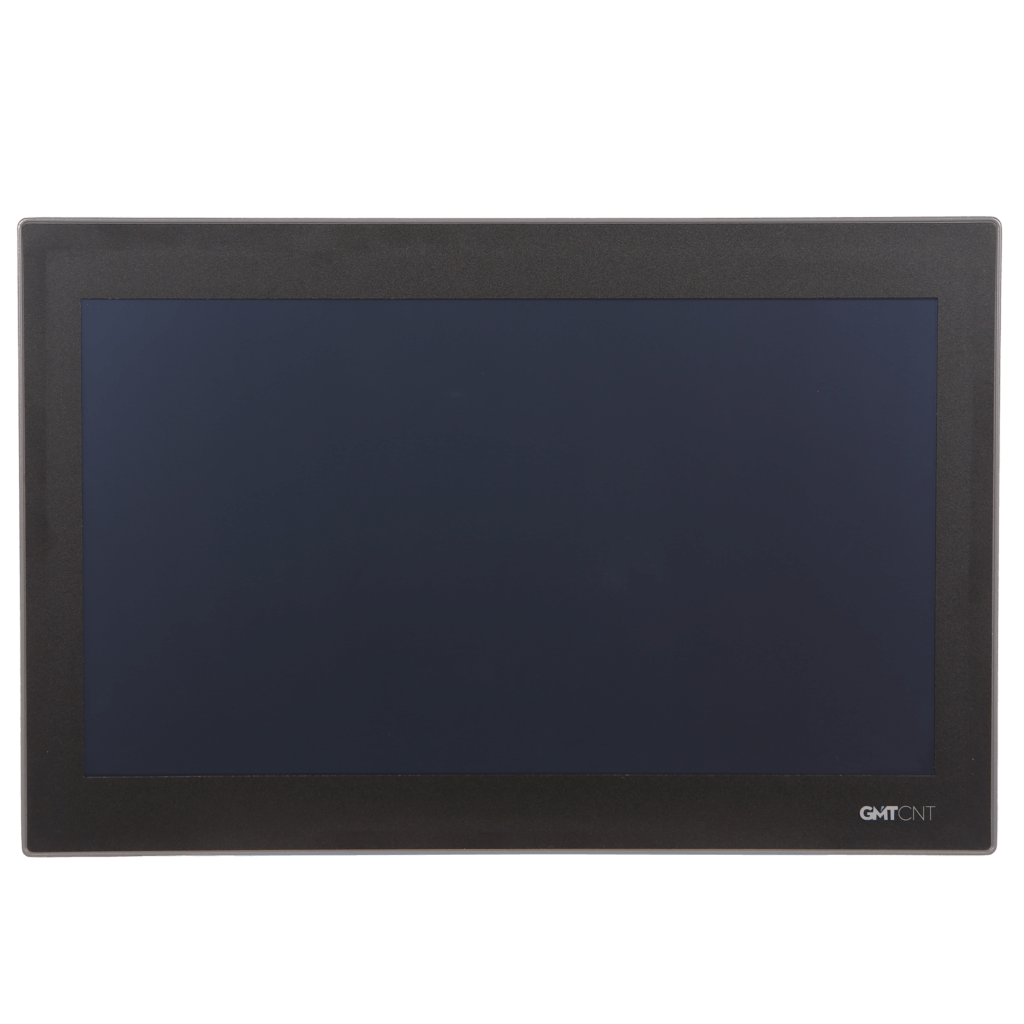

    MSG-156E

    It is an HMI with a 15.6" TFT screen (1920x1080) and 16.77M colors. With a Quad-Core 1.8 GHz processor, USB, RS232/RS485 connections, and VNC support, it provides remote monitoring and control. Multiple HMI connections, data logging, and alarm tracking can be done via GMTCNT protocol.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    MSG-156E

    16.77 M Color

    15.6 inch TFT Screen 1920*1080

    Quad-Core 1.8 GHz Processor

    4 GB Flash Memory + 512 MB RAM

    RTC (Real Time Clock)

    USB Slave port

    USB Host port

    RS232 and RS232/RS485 ports

    For Ethernet models, remote monitoring and control via Tablet, Smartphone, and PC with VNC support

    Front panel IP65 protection

    GMTCNT protocol feature for communication between multiple HMIs connected to one PLC

    Connect keyboard, mouse, flash disk, etc., to the USB Host port

    Store data, alarms, trends, and perform historical queries with the flash disk connected to the USB Host port

    Create macros using C language

    Add security levels and user definitions

    Access the HMI and external USB flash disk connected via FTP in Ethernet models

    Display Type 15.6” TFT
    Resolution 1920 x 1080
    Color 16.77M
    Backlight LED
    Brightness 250cd/m²
    Backlight Lifetime >20,000 hours
    Touch Screen 4-wire resistive touch screen
    Processor Quad-Core 1.8 GHz Processor
    Memory 4 GB Flash Memory + 512 MB RAM
    RTC Yes
    Expansion Memory 1 USB Host
    Printer Port USB Slave (Pictbridge) / USB Host
    Ethernet Yes
    Program Loading MICRO USB / RS-232 / Ethernet
    COM Port COM0: RS-232, RS-485, RS-422
    COM2: RS-232
    Power Consumption 15W
    Operating Voltage 24VDC
    Input Voltage Range 18VDC – 28VDC
    Instant Power Interruption < 3ms
    Isolation Resistance >50MΩ (500VDC)
    Dielectric Strength Test 500VAC 1 minute
    Case Material Metal
    Dimensions (mm) 395 x 259 x 25.5
    Panel Cut-out Dimensions (mm) 381.5 x 245.5
    Weight (kg) 2.5
    Operating Temperature 0 to 50°C
    Operating Humidity 10% rH to 90% rH, non-condensing
    Storage Temperature -20 to 60°C
    Storage Humidity 10% rH to 90% rH, non-condensing
    Shock Resistance Test 10Hz to 500Hz (X,Y,Z axis, 30m/s²)
    Cooling Method Air cooling
    Protection Rating IP65 (front panel)
    Certifications CE marked, EN IEC 61000-6-4:2019, EN IEC 61000-6-2:2019
