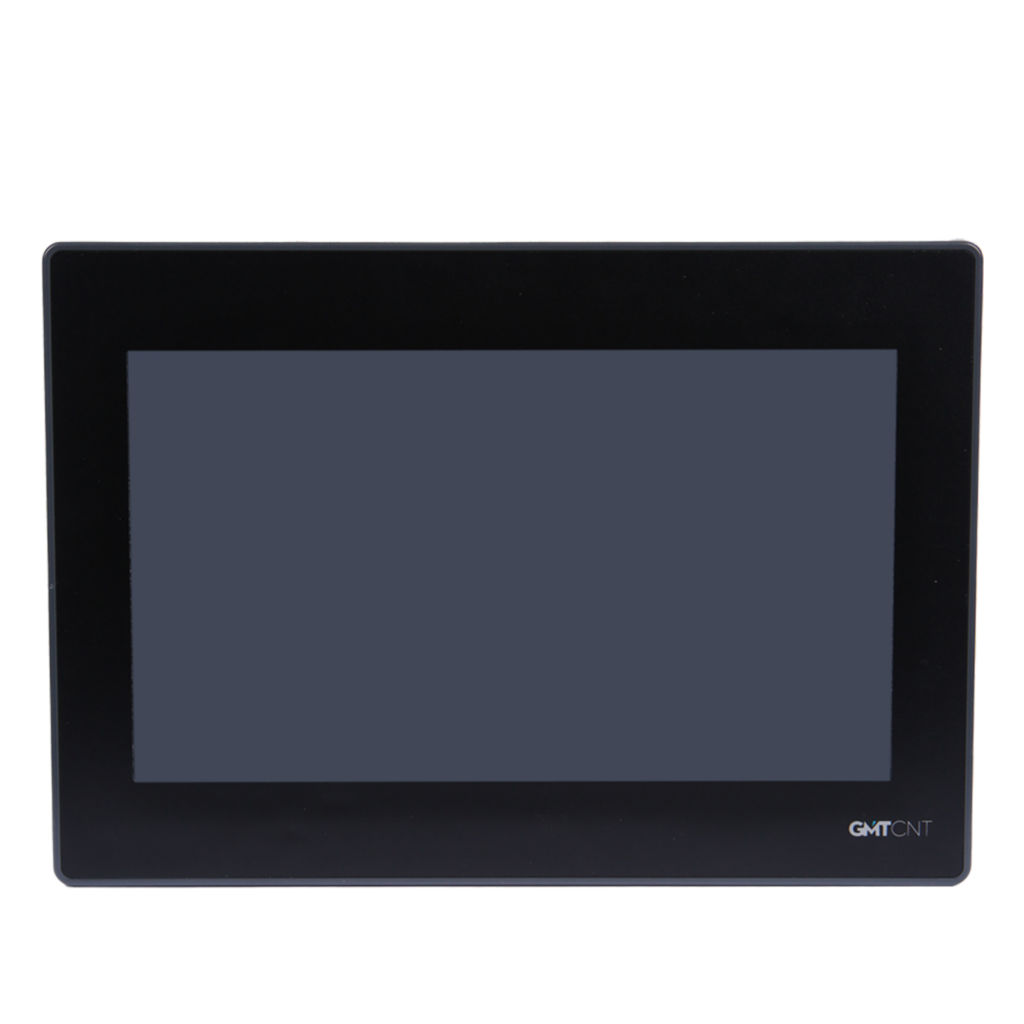

    GHS-101E

    A 16.77M color TFT touchscreen HMI for industrial applications. It offers RTC support, broad PLC compatibility, and HP LaserJet P1100 printer support. It also provides PDF viewing, data logging via the USB Host feature, and remote access and control with VNC software.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    GHS-101E

    GHS Series HMIs are 16.77M color TFT touch operator panels developed for use in industrial applications.

    This product includes a real-time clock (RTC) as a standard feature. The user-friendly software has a wide PLC library and supports all commonly used PLCs.

    It is compatible with HP LaserJet P1100 series printers.

    With the PDF Viewer function, PDF files can be displayed.

    The USB Host feature allows for data logging, program loading, and connection of peripherals such as keyboards, mice, and webcams.

    With VNC software, it is possible to access Ethernet-enabled models via local network or the internet through Windows, iOS, and Android platforms.

    The VNC Client feature allows monitoring and control between devices through the Ethernet port.

    Display Type 10.1" TFT
    Resolution 1024x600
    Color 16.77M
    Backlight LED
    Brightness 300cd/m²
    Backlight Life >30,000 hours
    Touchscreen 4-wire precise resistance circuit
    Processor ARM Cortex-A7 Dual Core 792MHz
    Memory 128MB NAND Flash, 128MB DDR3
    RTC Yes
    Expandable Memory 1 USB Host
    Printer Port USB Slave (Pictbridge) / USB Host
    Ethernet Yes
    Program Loading MICRO USB / RS-232
    COM Port COM0: RS-232, RS-485, RS-422
    COM2: RS-232
    Power Consumption 6W
    Operating Voltage 24VDC
    Input Range 10VDC – 28VDC
    Instant Power Loss <3ms
    Insulation Resistance >50MΩ (500VDC)
    Dielectric Endurance Test 500VAC for 1 minute
    Enclosure Material Engineering Plastic
    Dimensions (mm) 271 x 191 x 36
    Panel Cutout Dimensions (mm) 261 x 180
    Weight (kg) 0.89
    Operating Temperature 0 to 50°C
    Operating Humidity 10%rH to 90%rH, no condensation
    Storage Temperature -20 to 60°C
    Storage Humidity 10%rH to 90%rH, no condensation
    Shock Resistance Test 10Hz to 25Hz (X, Y, Z directions, 30 minutes)
    Cooling Method Air cooling
    Protection Class IP65 (front panel)
    Certifications CE marked, EN61000-6-2:2005/EN61000-6-4:2007+A1:2011
