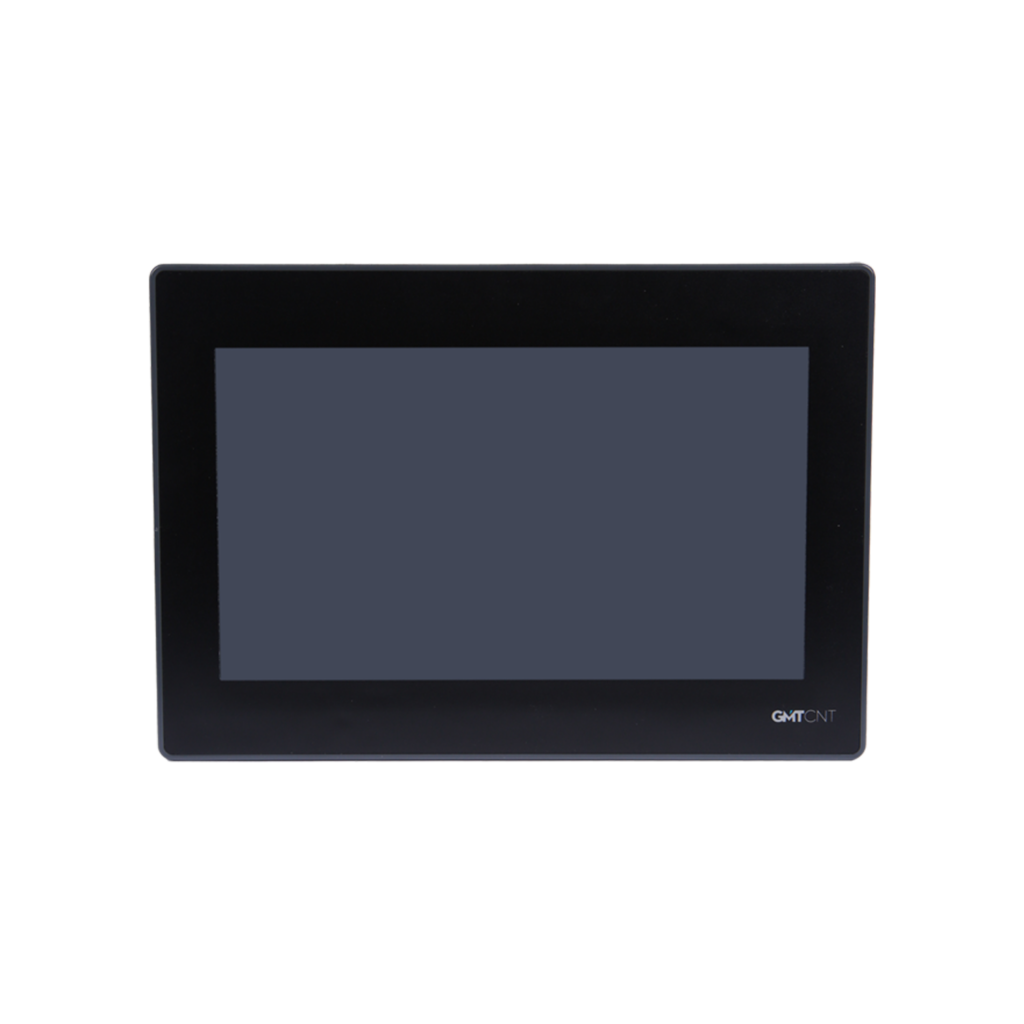

    GHS-101

    It is an HMI with a 16.77M color TFT touch screen designed for industrial applications. It supports RTC, is compatible with a wide PLC library, and works with HP LaserJet P1100 printers. It offers PDF viewing, data logging with USB Host, and remote access and control via VNC software.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    GHS-101

    Our GHS Series HMIs are 16.77M color TFT touch operator panels developed for industrial applications.

    This product features a real-time clock (RTC) as standard. The user-friendly software has a large PLC library and supports all commonly used PLCs.

    It is compatible with HP LaserJet P1100 series printers.

    With the PDF Viewer function, PDF files can be displayed.

    Data can be recorded, programs can be uploaded, and keyboard, mouse, and webcam can be connected via the USB Host feature.

    With VNC software, models with Ethernet ports can be accessed via local network or the internet from Windows, iOS, and Android platforms.

    With VNC Client, monitoring and controlling between devices is available through the Ethernet port.

    Display Type 10.1” TFT
    Resolution 1024x600
    Color 16.77M
    Backlight LED
    Brightness 300cd/m²
    Backlight Lifetime >30,000 hours
    Touchscreen 4-wire resistive circuit
    Processor ARM RISC 32bit 792MHz
    Memory 128MB NAND Flash, 128MB DDR3
    RTC Yes
    Expansion Memory -
    Printer Port USB Slave (Pictbridge)
    Ethernet -
    Program Loading MICRO USB / RS-232
    COM Port COM0: RS-232, RS-485, RS-422
    COM2: RS-232
    Power Consumption 6W
    Operating Voltage 24VDC
    Input Range 10VDC – 28VDC
    Instant Power Failure <3ms
    Insulation Resistance >50MΩ (500VDC)
    Dielectric Strength Test 500VAC 1 minute
    Housing Material Engineering Plastic
    Dimensions (mm) 271 × 191 × 36
    Panel Cutout Size (mm) 261 x 180
    Weight (kg) 0.89
    Operating Temperature 0 to 50°C
    Operating Environment Humidity 10%rH to 90%rH, no condensation
    Storage Temperature -20 to 60°C
    Storage Humidity 10%rH to 90%rH, no condensation
    Shock Endurance Test 10Hz to 25Hz (X, Y, Z directions, 30 minutes)
    Cooling Method Air cooling
    Protection Class IP65 (front panel)
    Certifications CE marked, EN61000-6-2:2005/EN61000-6-4:2007+A1:2011
