    GHS-070E

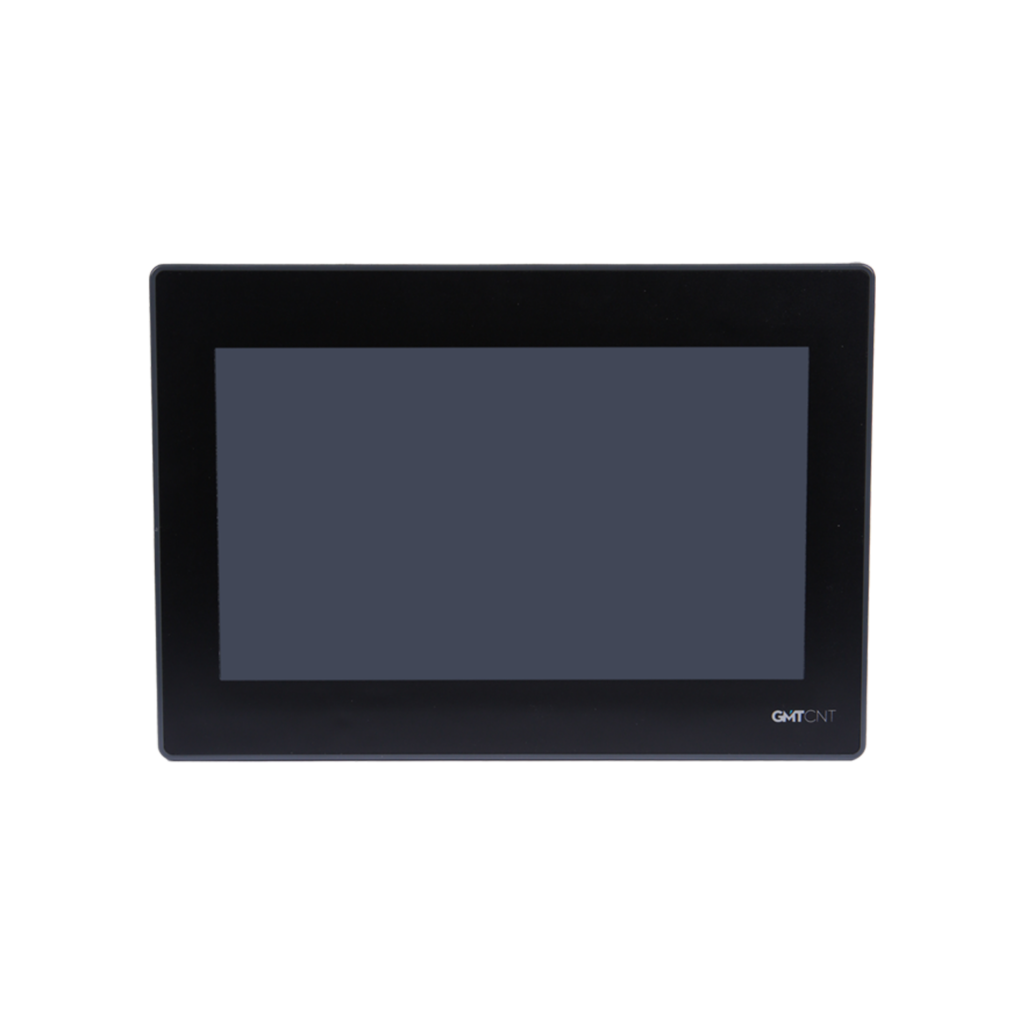

    It is an operator panel with a 7” TFT touchscreen display, featuring 16.77M colors. With RTC support and user-friendly software with a wide library, it supports all PLCs. It offers PDF viewing functionality and compatibility with HP LaserJet P1100 printers. It has a 1024x600 resolution, ARM Cortex-A7 1GHz processor, and 256MB NAND Flash memory.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    GHS-070E

    GHS Series HMI is a 16.77M color TFT touch operator panel developed for industrial applications. This product features a real-time clock (RTC) as a standard. Its user-friendly software has a wide library and supports all known PLCs.

    Compatible with HP LaserJet P1100 series printers.

    PDF Viewer function allows displaying PDF files.

    7” TFT (16:9W) Screen Size, 1024×600 Screen Resolution, ARM Cortex-A7 Dual Core 1GHz Processor, 256 MB NAND Flash +128 MB DDR3 Memory.

    Display Type 7" TFT
    Resolution 1024×600
    Color 16.77M
    Backlight LED
    Brightness 450cd/m²
    Backlight Life >30,000 hours
    Touchscreen 4-wire resistive
    Processor ARM Cortex-A7 Dual Core 1GHz
    Memory 256 MB NAND Flash +128 MB DDR3
    RTC Yes
    Expansion Memory 1 USB Host
    Printer Port USB Slave (Pictbridge) / USB Host
    Ethernet Yes
    Program Loading MICRO USB / RS-232
    COM Ports COM0: RS-232, RS-485, RS-422
    COM1: RS-485
    COM2: RS-232
    Power Consumption 3.6W
    Operating Voltage 24VDC
    Input Range 10VDC – 28VDC
    Instant Power Loss <3ms
    Scale Isolation Resistance >50MΩ (500VDC)
    Dielectric Strength Test 500VAC 1 minute
    Case Material Engineering Plastic
    Dimensions (mm) 204 x 150 x 37
    Panel Cutout Dimensions (mm) 192 x 138
    Weight (kg) 0.5
    Operating Temperature 0 to +50°C
    Operating Humidity 10% rH to 90% rH, no condensation
    Storage Temperature -20 to 60°C
    Storage Humidity 10% rH to 90% rH, no condensation
    Impact Resistance Test 10Hz to 25Hz (X, Y, Z directions, 30 minutes)
    Cooling Method Air cooling
    Protection Class IP65 (front panel)
    Certifications CE marked, EN61000-6-2:2005/EN61000-6-4:2007+A1:2011
