    FLG-101E

    "It is a 16.77M color TFT touchscreen panel for industrial applications. It offers RTC support, wide PLC compatibility, data logging with USB Host, and PDF viewing. It provides fast communication and SCADA integration with MODBUS TCP. Remote access is possible with VNC. It comes with a 10.1” screen, 1024 x 600 resolution, and an ARM RISC 800MHz CPU.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    FLG-101E

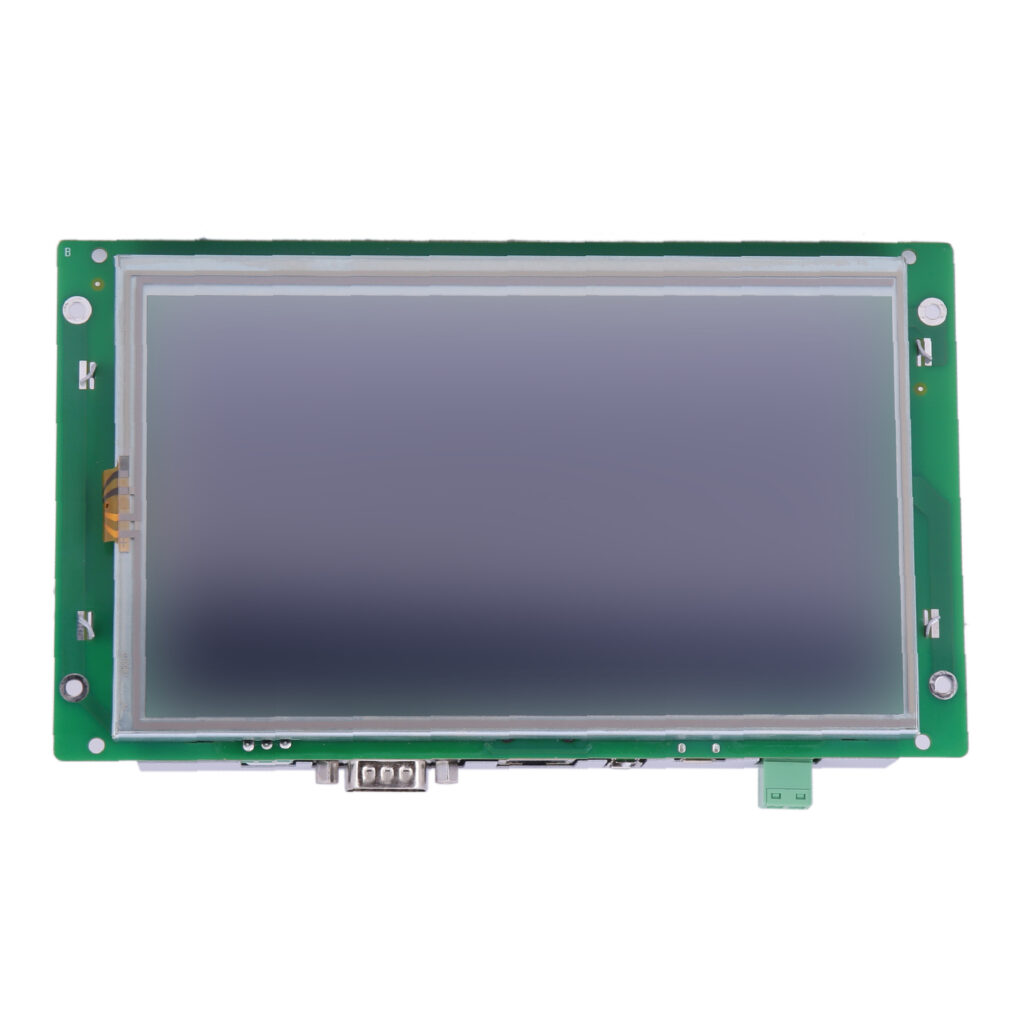

    It is a 16.77M color TFT touchscreen operator panel, developed for use in industrial applications, without a casing. This product comes with a real-time clock (RTC) as a standard feature. Its user-friendly software has an extensive library and supports all known PLCs.

    Compatible with HP LaserJet P1100 series printers.

    With the PDF Viewer function, PDF files can be displayed.

    With the USB Host feature, data can be logged, programs can be loaded, and keyboard / mouse / webcam can be connected.

    This model, with an Ethernet port supporting MODBUS TCP communication, allows fast and secure communication with GLC39X and GLC49X series CPUs and easy integration into SCADA applications.

    With VNC software, this model can be accessed via local network or the internet through Windows, iOS, and Android platforms, providing monitoring and control.

    With the VNC Client, monitoring and control between devices over the Ethernet port is possible.

    10.1” TFT (16:9W) Screen Size, 1024 x 600 Resolution, ARM RISC 32bit 800MHz CPU, 100M Ethernet port.

    Display Type 10.1" TFT
    Resolution 1024x600
    Color 16.77M
    Backlight LED
    Brightness 400cd/m²
    Backlight Lifetime >30,000 hours
    Touch Screen 4-wire resistive touch circuit
    Processor ARM RISC 32bit 800MHz
    Memory 128MB NAND Flash, 128MB DDR3
    RTC Available
    Expansion Memory 1 USB Host
    Printer Port USB Slave (Pictbridge) / USB Host
    Ethernet Available
    Program Loading MICRO USB / RS-232
    COM Port COM0: RS-232, RS-485, RS-422
    COM2: RS-232
    Power Consumption 6W
    Operating Voltage 24VDC
    Input Range 10VDC – 28VDC
    Instant Power Loss <3ms
    Isolation Resistance >50MΩ (500VDC)
    Dielectric Strength Test 500VAC 1 minute
    Housing Material Metal
    Dimensions (mm) 276 × 164 × 32
    Panel Cutout Size (mm) 238 x 148
    Weight (kg) 0.9
    Operating Temperature 0 to 50°C
    Operating Humidity 10%rH to 90%rH, non-condensing
    Storage Temperature -20 to 60°C
    Storage Humidity 10%rH to 90%rH, non-condensing
    Shock Resistance Test 10Hz to 500Hz (X,Y,Z directions, 30m/s²)
    Cooling Method Air cooling
    Certifications CE Marked
