    FLG-070E

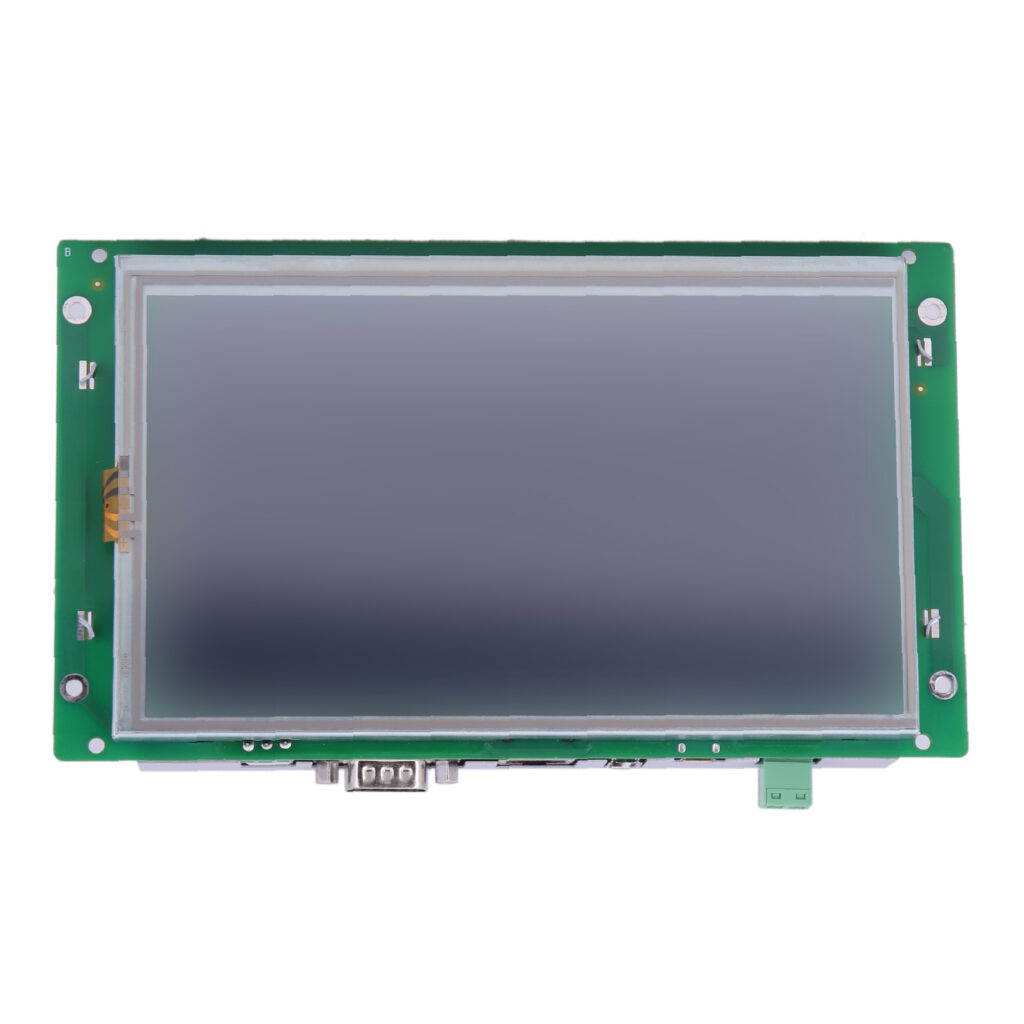

    It is a 16.77M color TFT touchscreen panel without a casing, designed for industrial applications. It offers RTC, PLC compatibility, PDF viewing, data logging with USB Host, fast communication with MODBUS TCP, and SCADA integration. Remote access is possible via VNC. The 7" TFT screen includes an 800 x 480 resolution and ARM RISC 800MHz CPU.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    FLG-070E

    This is a 16.77M color TFT touchscreen operator panel without a casing, developed for industrial applications. This product includes a real-time clock (RTC) as a standard feature. Its user-friendly software has a wide library and supports all known PLCs.

    Compatible with HP LaserJet P1100 series printers.

    The PDF Viewer function allows for viewing PDF files.

    With the USB Host feature, data can be recorded, programs can be uploaded, and a keyboard, mouse, or webcam can be connected.

    This model, with an Ethernet port supporting MODBUS TCP communication, allows for fast and secure communication with GLC39X and GLC49X series CPUs and easy integration in SCADA applications.

    With VNC software, you can access and control these models over local networks or the internet through Windows, iOS, and Android platforms.

    VNC Client allows for monitoring and control between devices through the Ethernet port.

    7” TFT (16:9W) Screen Size, 800 x 480 Resolution, ARM RISC 32bit 800MHz CPU, Ethernet port.

    Display Type 7" TFT
    Resolution 800 x 480
    Color 16.77M
    Backlight LED
    Brightness 250cd/m²
    Backlight Life >30,000 hours
    Touch Screen 4-wire resistive
    Processor ARM RISC 32bit 800MHz
    Memory 128MB NAND Flash, 128MB DDR3
    RTC Yes
    Expansion Memory 1 USB Host
    Printer Port USB Slave (Pictbridge) / USB Host
    Ethernet Yes
    Program Upload MICRO USB / RS-232 / Ethernet
    COM Port COM0: RS-232, RS-485, RS-422
    COM2: RS-232
    Power Consumption 3.6W
    Operating Voltage 24VDC
    Input Range 10VDC – 28VDC
    Instant Power Loss <3ms
    Isolation Resistance >50MΩ (500VDC)
    Dielectric Strength Test 500VAC 1 minute
    Enclosure Material Metal
    Dimensions (mm) 191 x 110 x 30
    Panel Cutout Dimensions (mm) 166 x 101
    Weight (kg) 0.3
    Operating Temperature 0 to 50°C
    Operating Humidity 10% rH to 90% rH, no condensation
    Storage Temperature -20 to 60°C
    Storage Humidity 10% rH to 90% rH, no condensation
    Shock Resistance Test 10Hz to 500Hz (X,Y,Z axes, 30m/s²)
    Cooling Method Air Cooling
    Protection Class IP65 (front panel)
    Certifications CE marked
