    GSS3-2RS / GSS3-2EC

    It operates with 200-750W motors, feedback via Nikon Encoder, and 200-240VAC power supply. It offers position, speed, and torque control, and provides Modbus RTU and EtherCat communication support. With protection functions such as overvoltage and overheating, as well as analog/digital input and output, it ensures safe and efficient performance.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

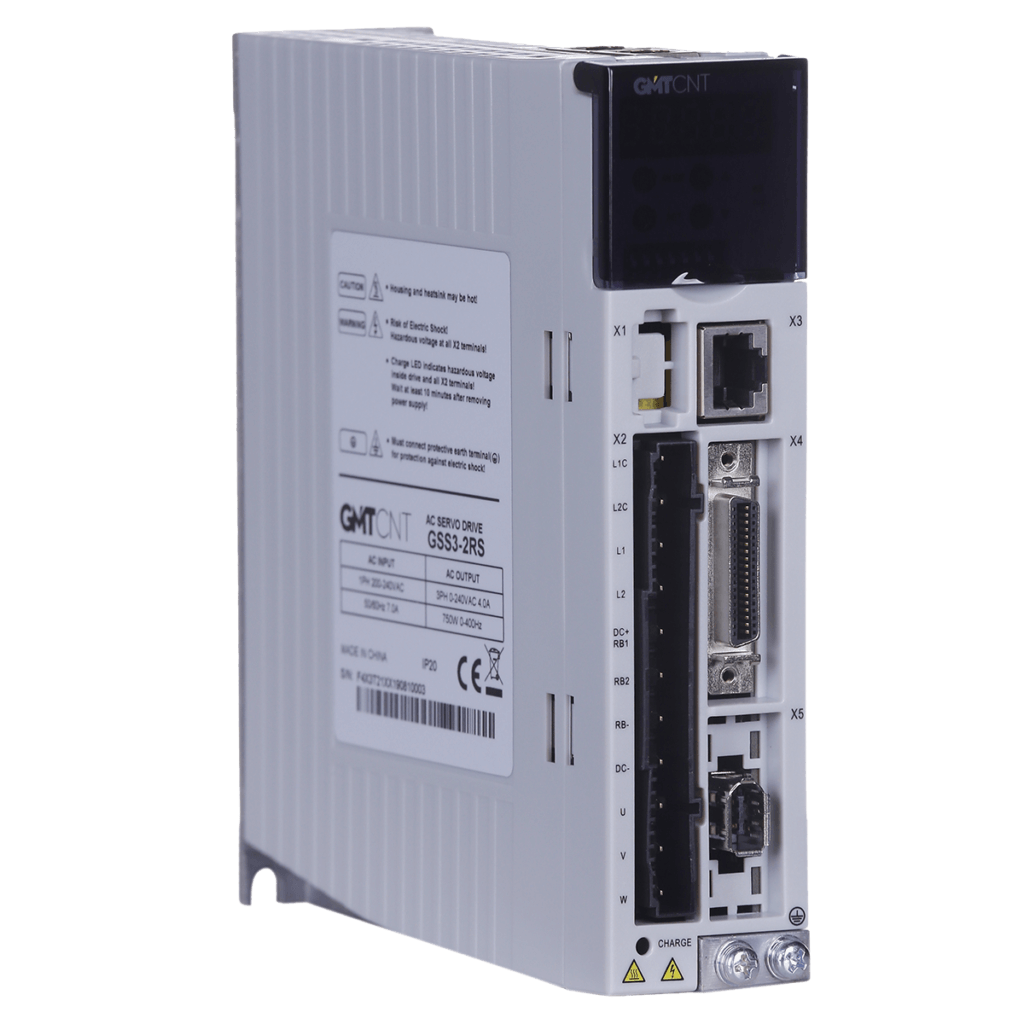

    GSS3-2RS / GSS3-2EC SERVO DRIVE

    With a microprocessor and semiconductor technology, servo systems consisting of naturally magnetized motors are becoming increasingly economical and are widely used in automation systems for applications that require precise measurement, high and stable speed control, torque control, rapid acceleration, and stopping.

    Our servo systems, which we provide to the machine manufacturing industry, are widely used in machines such as testing equipment, presses, cutting, filling, packaging, plastics, food, textiles, CNC, woodworking, etc.

    For 200W, 400W, and 750W motors

    Feedback with 20 Bit Nikon brand Encoder

    Single-phase 200-240VAC ±10%, 50-60Hz ±3% Supply Voltage

    Position / Speed / Torque Control Modes

    Ability to create a 32-step Position Table

    High-speed pulse inputs, Open-collector (500 kHz), Differential Mode (4 MHz)

    Pulse + Direction, CCW + CW, Phase A + Phase B (5V to 24V) Pulse Command Types

    Ability to set speed and torque set values with analog inputs and internal parameters

    Easy adjustment of gain parameters

    5V internal power supply output

    Easy commissioning with PC software or built-in keypad and display

    Additional RS-232 communication port for PC software

    2MHz Encoder output signal

    Position, Speed, Torque modes and the ability to switch between modes

    Online adjustable Electronic Gearbox

    Torque/Speed limits

    Built-in position and homing functions

    Modbus RTU communication (GSS3-2RS)

    High-speed communication with EtherCat communication port (GSS3-2EC)

    7 PNP/NPN selectable digital inputs

    5 digital outputs

    2 -10V…+10V analog inputs

    Overvoltage, undervoltage, short-circuit, motor overheating, servo driver overheating protection functions

    Supply Voltage 1×200-240 VAC (Single-phase)
    Supply Frequency 50 Hz to 60 Hz ±3%
    Control Circuit Voltage  200-240 VAC (Single-phase)
    Nominal Current 4A
    Peak Current 15A
    Feedback Signal 20 Bit Communication-Enabled Encoder
    Braking Resistor External brake can be used depending on the application
    Braking Resistor Threshold Voltage 380 VDC (+/- 5 V)
    Overvoltage Alarm Threshold 400 VDC (+/- 5 V)
    Undervoltage Alarm Threshold 200 VDC (+/- 5 V)
    Cooling Method Natural air cooling
    Weight (kg) 0.8
    RS-232 Port PC serial-Servo Driver communication port up to 115200 bps
    RS-485 Port ModBUS RTU communication port up to 115200 bps (GSS3-2RS)
    EtherCAT Port High-speed EtherCAT Slave communication port (GSS3-2EC)
    Digital Input 7 PNP or NPN selectable digital inputs
    Digital Output 5 digital outputs
    Analog Input 2 -10V…+10V analog inputs (can be used for speed and torque control)
    Encoder Signal Output Optional (max. 10 MHz)
    Operating Temperature 0°C to 40°C
    Storage Temperature -10°C to 70°C
    Humidity Under 90% Rh (without condensation)
    Protection Class IP20
    Mounting Conditions Dust-free, dry, and closed environment
    Mounting Type Vertical mounting
    Height Maximum 1000 meters
    Atmospheric Pressure 86 kPa to 106 kPa
    Vibration 5.9 m/s² (0.6 G), 10 Hz to 55 Hz



    Motor Code Power Cable Encoder Cable Brake Cable
    GSM60F-0200W-20B-30D-KLY GMK-XX-KLY GEK-XX-GU-KLY -
    GSM60F-0200W-20B-30D-KLY-B GMK-XX-KLY GEK-XX-GU-KLY GMFK-XX-GU-KL
    GSM60F-0400W-20B-30D-KLY GMK-XX-KLY GEK-XX-GU-KLY -
    GSM60F-0400W-20B-30D-KLY-B GMK-XX-KLY GEK-XX-GU-KLY GMFK-XX-GU-KL
    GSM80F-0750W-20B-30D-KLY GMK-XX-KLY GEK-XX-GU-KLY -
    GSM80F-0750W-20B-30D-KLY-B GMK-XX-KLY GEK-XX-GU-KLY GMFK-XX-GU-KL

    - The XX in the power and encoder cables indicates the cable length. Use "05" for 5 meters, and "15" for 15 meters of cable length.

    - For GSM60F-0200W-20B-30D-KLY-B, GSM60F-0400W-20B-30D-KLY-B, and GSM60F-0750W-20B-30D-KLY-B motors, an additional brake cable must be purchased.
