    GSM130F-2000W-16B-20D-MCB

    The 2000W brake servo motor, with a 130mm flange connection and 22mm shaft diameter, delivers powerful performance. Its 20-bit Nikon encoder provides precise speed, torque, and position control. With a torque capacity of 9.6Nm, this motor is widely used in test devices, presses, cutting, filling, packaging, plastics, and food machinery.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

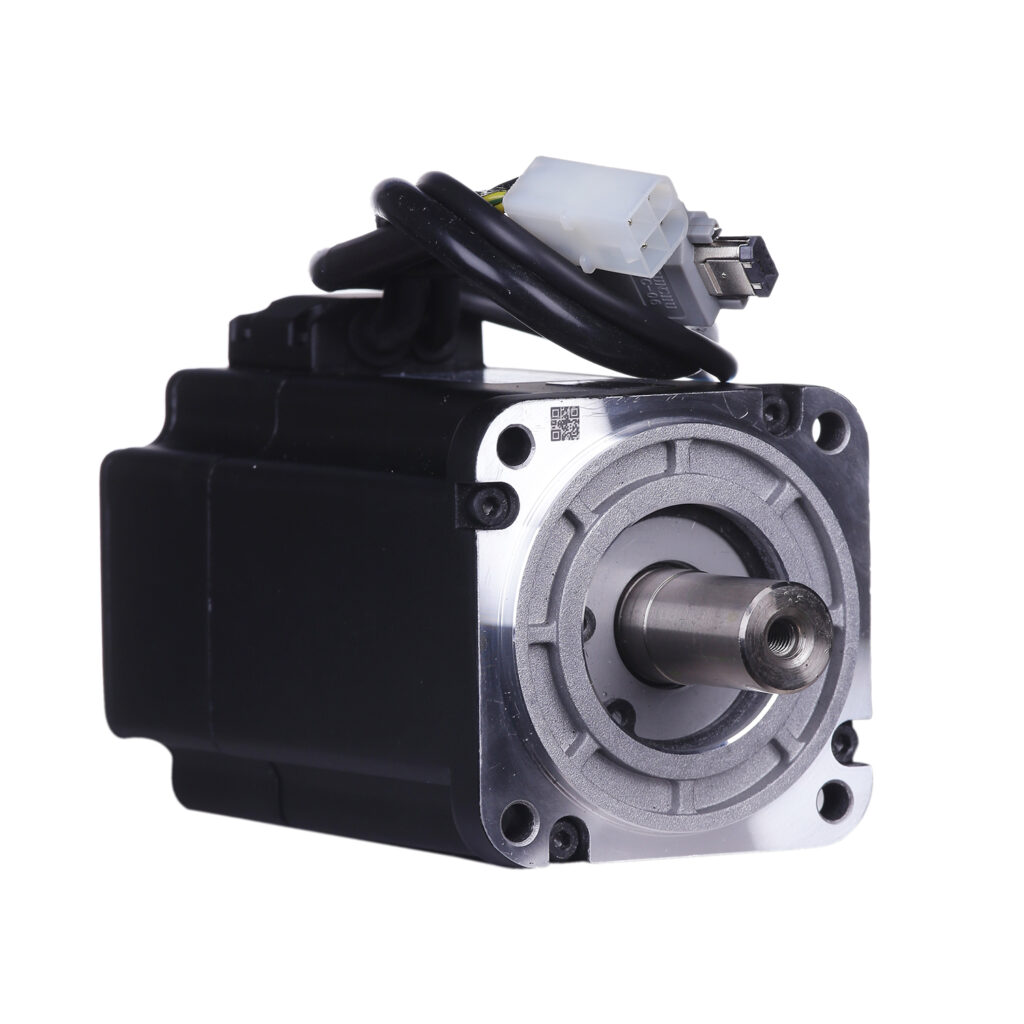

    2000W 2000RPM BRAKE SERVO MOTOR

    With a driver featuring microprocessor and semiconductor technology, servo systems consisting of permanent magnet motors are becoming increasingly economical. These systems are frequently used in automation applications that require precise measurements, high and stable speed control, torque control, and rapid acceleration and deceleration.

    Our servo systems, offered to the machine manufacturing industry, are widely used in machines such as test devices, presses, cutting, filling, packaging, plastics, food, etc.

    2000W

    130mm Flange connection

    22mm shaft diameter

    2000rpm

    20Bit Nikon encoder

    9.6Nm

    Compatible Driver GSS3-3RS / GSS3-3EC
    Nominal Power 2000 W
    Nominal Torque 9.6 Nm
    Nominal Speed 2000 rpm
    Nominal Current 8.8 A
    Maximum Torque 24 Nm
    Maximum Current 26.4 A
    Standstill Torque 10.56 Nm
    Standstill Current 9.68 A
    Rotor Moment of Inertia 17.7 kg.cm²
    Position Feedback 20 Bit Nikon Encoder
    Weight (kg) 11.4
    Cooling Class Completely enclosed, without ventilation
    Protection Class IP65 on the body, IP54 on the shaft seal
    Operating Temperature -20°C to 40°C
    Humidity 90% rH (without condensation)
    Environment Avoid active gases, flammable gases, oil, and dust
    Altitude Nominal power at 1000 m or below (max 4000 m)
