    GSSJ-H5

    It works with 4.4 kW three-phase motors to provide precise position, speed, and torque control. With Modbus RTU, 8 digital inputs, 7 digital outputs, 2 analog inputs, and 24VDC brake control, it offers a wide range of features. It ensures safe and stable operation with overvoltage, undervoltage, short circuit, and overheating protection functions.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

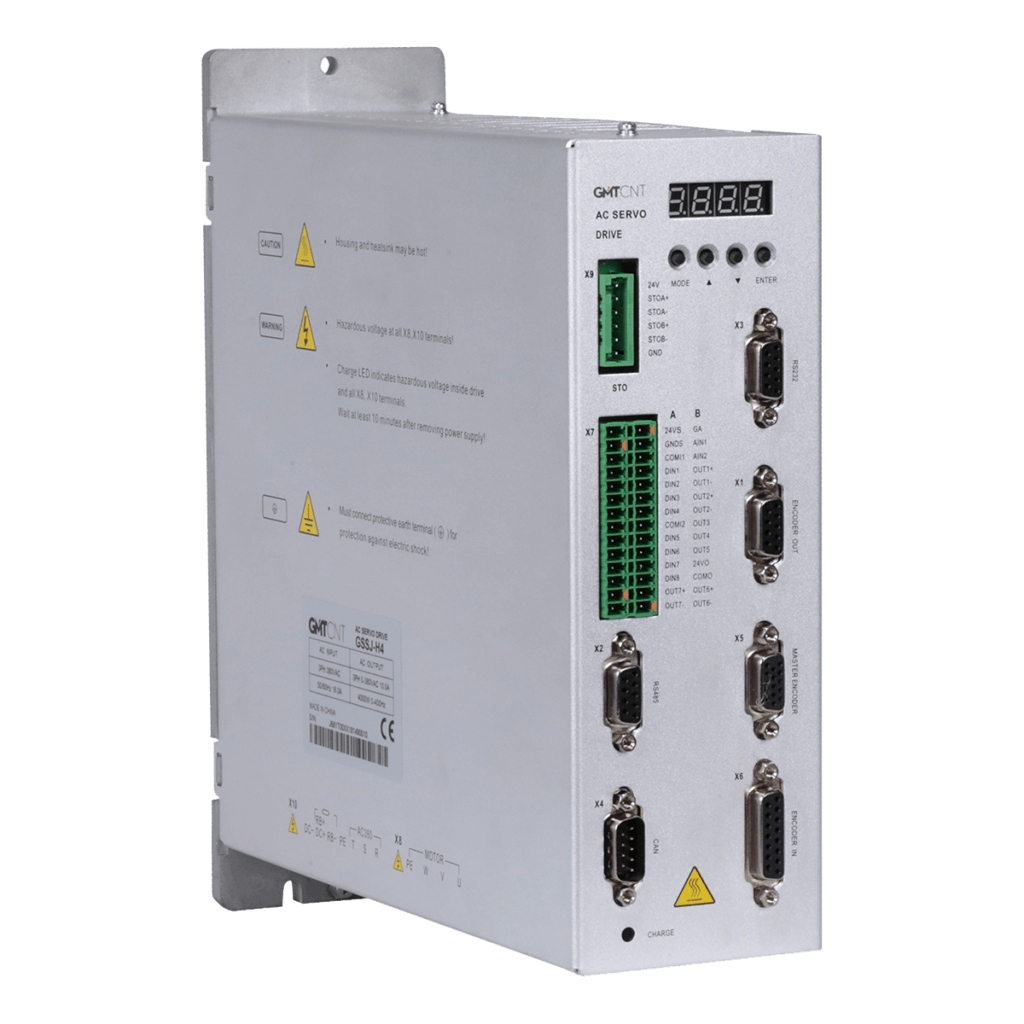

    GSSJ-H5 SERVO DRIVER

    With advanced microprocessor and semiconductor technology, servo systems consisting of permanent magnet motors are becoming more economical, and are increasingly used in automation systems for applications requiring precise measurement, high and stable speed control, torque control, rapid acceleration, and deceleration.

    Our servo systems, offered to the machine manufacturing industry, are commonly used in machines such as test devices, presses, cutting, filling, packaging, plastics, food, textiles, CNC, woodworking, etc.

    For 4.4kW motors

    Three-phase 380VAC +15% / -20%, 47~63Hz supply voltage

    Position / Speed / Torque Control Modes

    Open-collector, line-driver, 600 kHz high-speed limitable pulse inputs

    Ability to adjust speed and torque set values via analog inputs and internal parameters

    Easy commissioning with PC software, built-in keypad, and display

    Additional RS-232 communication port for PC software

    Encoder information can be received in A, B, Z, and complementary formats

    Maximum 2MHz Encoder output signal

    Position, speed, torque, master-slave modes, and switching between modes

    Electronically adjustable gearbox

    Gain adjustment parameters

    Torque/Speed limits

    Built-in position and homing function

    Modbus RTU communication (Maximum 115.2kbps)

    8 selectable PNP/NPN digital inputs

    7 digital outputs

    Brake control output (24VDC, 500mA)

    2 -10V…+10V analog inputs

    Over-voltage, low voltage, short circuit, motor overheating, and servo driver overheating protection functions

    Supply Voltage 3×380 V (Three-Phase)
    Supply Frequency 47 Hz to 63 Hz
    Control Circuit Voltage 18 VDC to 30 VDC, 1 A
    Nominal Current 13A
    Peak Current 45A
    Feedback Signal 2500 PPR (5 V sourced incremental encoder)
    Brake Resistor External brake may be used depending on the application.
    Brake Resistor Threshold Voltage 680 VDC (+/- 5 V)
    Overvoltage Alarm Threshold 700 VDC (+/- 5 V)
    Low Voltage Alarm Threshold 400 VDC (+/- 5 V)
    Cooling Method Fan
    Weight (kg) 3.62
    RS-232 Port Serial port, 4800..115200 baudrate range, supports standard ModBUS RTU protocol.
    RS-485 Port Serial port, 4800..115200 baudrate range, supports standard ModBUS RTU protocol.
    Digital Input 8 selectable PNP or NPN digital inputs
    Digital Output 7 digital outputs
    Analog Input 2 -10V…+10V analog inputs (can be used for speed and torque control)
    Encoder Signal Output Optional (max. 2 MHz)
    Operating Temperature 0°C to 40°C
    Storage Temperature -10°C to 70°C
    Humidity Under 90% Rh (without condensation)
    Protection Class IP20
    Installation Conditions Dust-free, dry, and enclosed environment
    Mounting Type Vertical mounting
    Altitude Up to 1000 meters
    Atmospheric Pressure 86 kPa to 106 kPa
    Vibration 5.9 m/s² (0.6 G), 10 Hz to 55 Hz





    Motor Code Power Cable Encoder Cable Nominal Values
    GS180D-440-15AYK-4HC GMK-015-XX-GK2 GEK-XX-KK1 1500rpm / 28Nm
    GS180D-440-15AFK-4HC GMK-015-XX-GK2F GEK-XX-KK1 1500rpm / 28Nm

    - In the power and encoder cables, "XX" refers to the cable length. For a 3m cable length, write 03; for a 5m cable, write 05; for a 10m cable, write 10; and for a 15m cable, write 15.

    - For motors with the code GS180D-440-15AFK-4HC, no additional brake cable is required. The GMK-015-XX-GK2F cables include both power and brake cables.
