    GS180D-350-15AYK-4HC

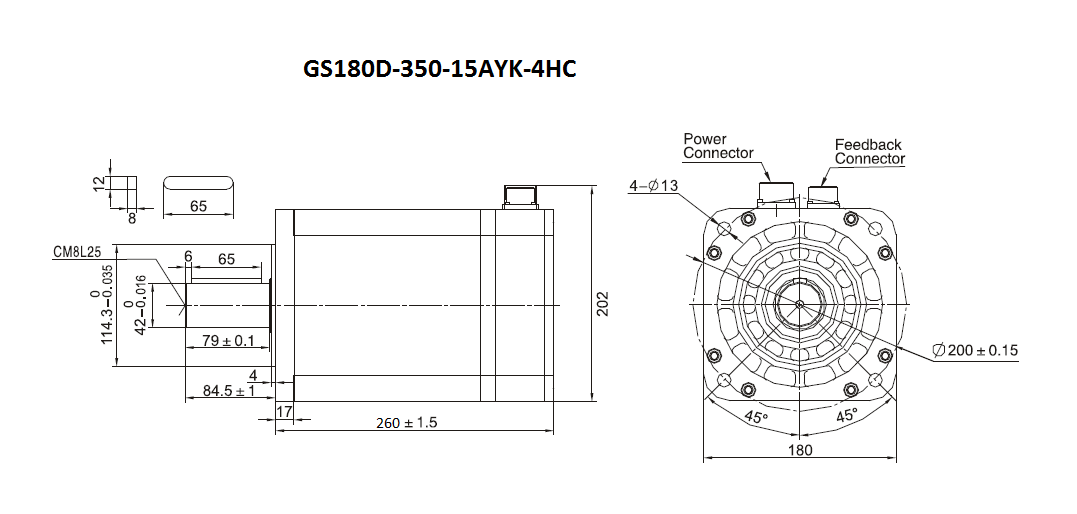

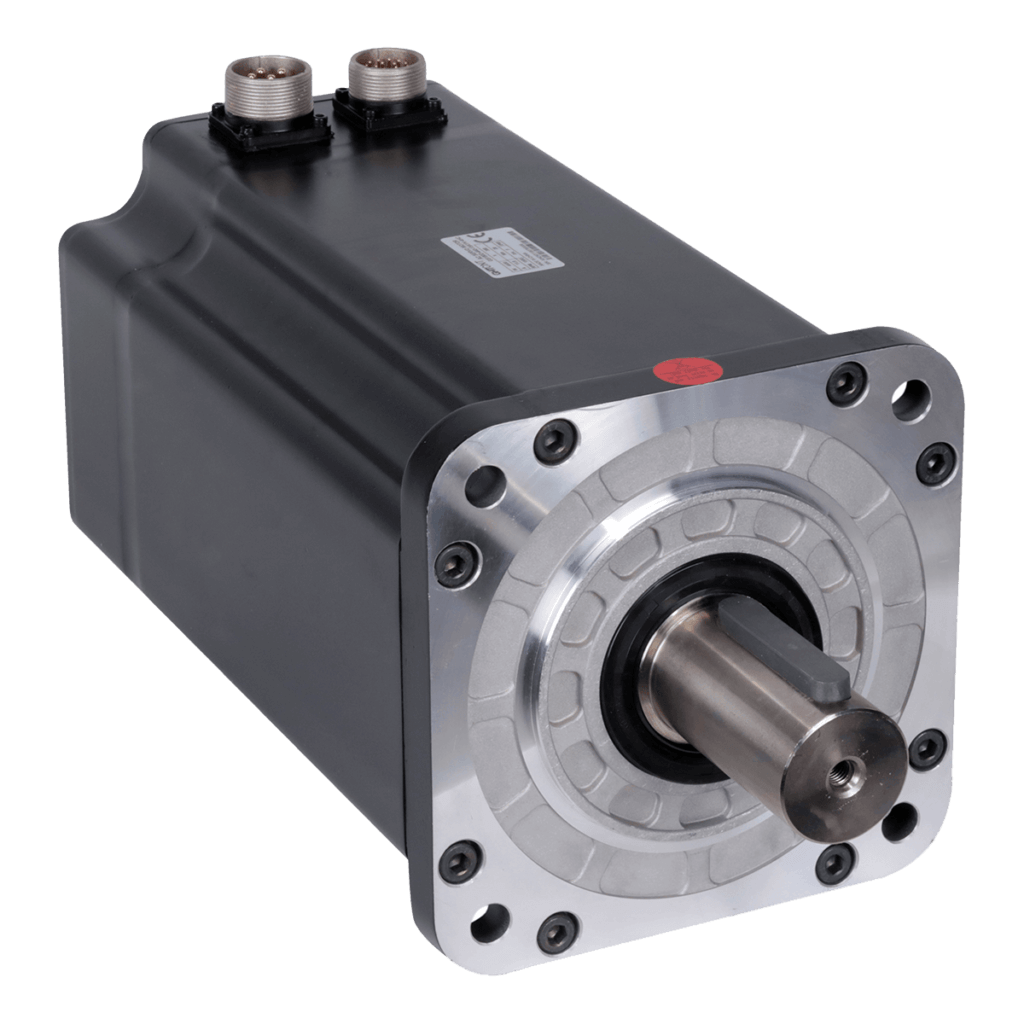

    The 3.5kW servo motor, with a 180mm flange connection and 42mm shaft diameter, delivers powerful performance. Its 2500 pulse internal encoder ensures precise speed, torque, and position control. With a speed of 1500rpm and a torque capacity of 22Nm, it is ideal for industrial applications. This motor is widely used in test devices, presses, cutting, filling, packaging, plastics, and food machinery.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    SERVO MOTOR

    With a driver featuring high microprocessor and semiconductor technology, servo systems consisting of permanent magnet motors are becoming increasingly economical. These systems are frequently used in automation applications that require precise measurements, high and stable speed control, torque control, and rapid acceleration and deceleration.

    Our servo systems, offered to the machine manufacturing industry, are widely used in machines such as test devices, presses, cutting, filling, packaging, plastics, food, etc.

    3.5kW

    180mm Flange connection

    42mm shaft diameter

    1500rpm

    2500 pulse internal encoder

    22Nm

    Compatible Driver GSSF-H4
    Nominal Power 3.5 kW
    Nominal Torque 22 Nm
    Nominal Speed 1500 rpm
    Nominal Current 10.3 A
    Maximum Torque 55 Nm
    Maximum Current 25.75 A
    Standstill Torque 24.2 Nm
    Standstill Current 11.3 A
    Rotor Moment of Inertia 82 kg.cm²
    Position Feedback Incremental encoder 2500 ppr
    Weight (kg) 22.7
    Cooling Class Completely enclosed, without ventilation
    Protection Class IP65 on the body, IP54 on the shaft seal
    Operating Temperature -20°C to 40°C
    Humidity 90% rH (without condensation)
    Environment Avoid active gases, flammable gases, oil, and dust
    Altitude Nominal power at 1000 m or below (max 4000 m)
