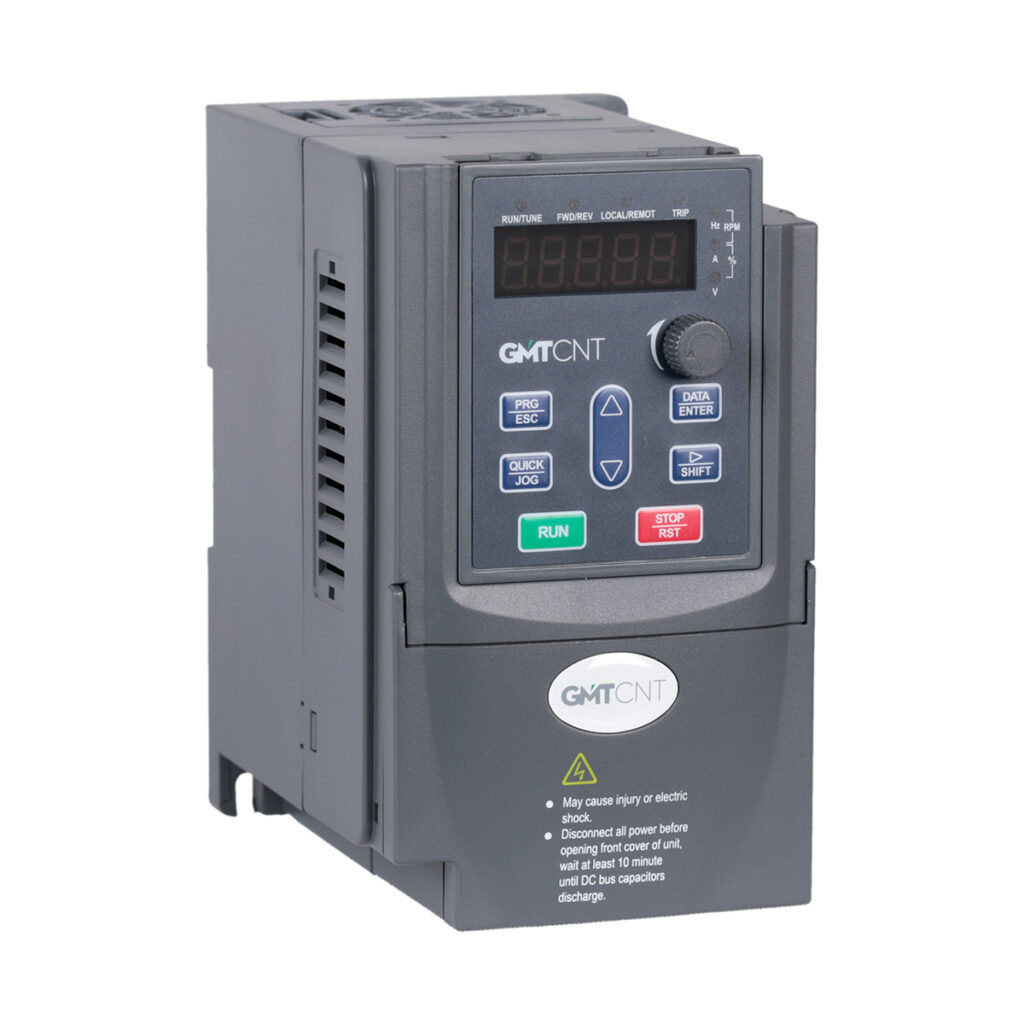

    MICNO 0.40 kW~2.2 kW

    It offers 150% starting torque with V/F and open-loop vector control, powered by 220VAC. Modbus RTU-supported RS-485 communication, PID control, portable panel, and autotune feature automatically adjust motor parameters. With a built-in brake chopper and output frequency up to 3000Hz, it is ideal for fan and pump applications.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    MICNO SPEED CONTROL DEVICE – AC DRIVE – INVERTER

    1 x 220VAC ( +/- %15 ) 50/60Hz supply voltage

    V/F and open-loop vector control

    High starting torque (150% at 0.5Hz)

    6 PNP/NPN digital inputs

    1 relay output

    1 x 0-10VDC / 4-20mA analog input

    1 x 0-10VDC / 4-20mA analog output

    PID control

    Built-in Modbus RTU supported RS-485 communication port

    Easy-to-use interface

    Detachable operator panel (can be moved to the panel via standard Ethernet cable)

    Dual operating mode for fan-pump applications for economical solution

    Autotune function for automatic motor parameter adjustment

    Built-in brake chopper (up to 30kW)

    Adjustable output frequency up to 3000Hz

    Supply Voltage 1x220VAC (Single Phase)
    Supply Frequency 47 Hz to 63 Hz
    Control Mode V/f control mode, Sensorless vector control mode, Torque control mode
    Frequency Range V/f control: 0 Hz to 3000.0 Hz
    Vector control: 0 Hz to 300.00 Hz
    Adjustment Resolution Digital: 0.01 Hz, Analog: Maximum frequency / 2000
    Overload Current Ratio 60 sec at 150%, 10 sec at 180%, 3 sec at 200%
    Acceleration and Deceleration 0.1 sec to 3600.0 sec
    Starting Torque 150% at 0.5Hz for vector control mode
    150% at 1Hz for V/f control mode
    DC Braking Yes
    PID Function Yes
    Communication Standard MODBUS RTU protocol supporting RS-485 communication
    Internal Brake Available
    Digital Input 5 selectable PNP or NPN digital inputs
    Relay Output 1 programmable relay output
    Fast Pulse Input 1 fast pulse input (can also be used as a digital input)
    Fast Pulse Output 1 fast pulse output (can also be used as a transistor output)
    Analog Input 1 selectable 4-20 mA or 0-10 V analog input
    Analog Output 1 programmable 4-20 mA or 0-10 V analog output
    Operating Temperature -10°C to 50°C (If ambient temperature exceeds 40°C, carrier frequency must be below 2.0 kHz)
    Storage Temperature -20°C to 60°C
    Humidity Under 90% RH, (without condensation)
    Protection Class IP20



    Product Code Power Current Information Suitable Brake Resistance Width (mm) Height (mm) Depth (mm)
    MICNO-00040S 0.4 kW 2.3 A 300W - 200Ω 85 140 125
    MICNO-00075S 0.75 kW 4 A 300W - 200Ω 85 140 125
    MICNO-00150S 1.5 kW 7 A 300W - 200Ω 85 140 125
    MICNO-00220S 2.2 kW 9.6 A 300W - 200Ω 110 185 153
