    GAIN 0.75 kW~3.7 kW

    Emos Group Industrial Electronics Industrial Automation and Control AC Drive GAIN 0.75 kW~3.7 kW
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

    GAIN 0.75 kW~3.7 kW

    Powered by 380VAC, it provides 150% starting torque with V/F control. It features 4 digital inputs, 1 relay output, 1 analog input/output, and PID control capabilities. The RS-485 port supports Modbus RTU, and it includes an internal brake chopper, energy balancing, autotune, and an adjustable output frequency of up to 3000Hz.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

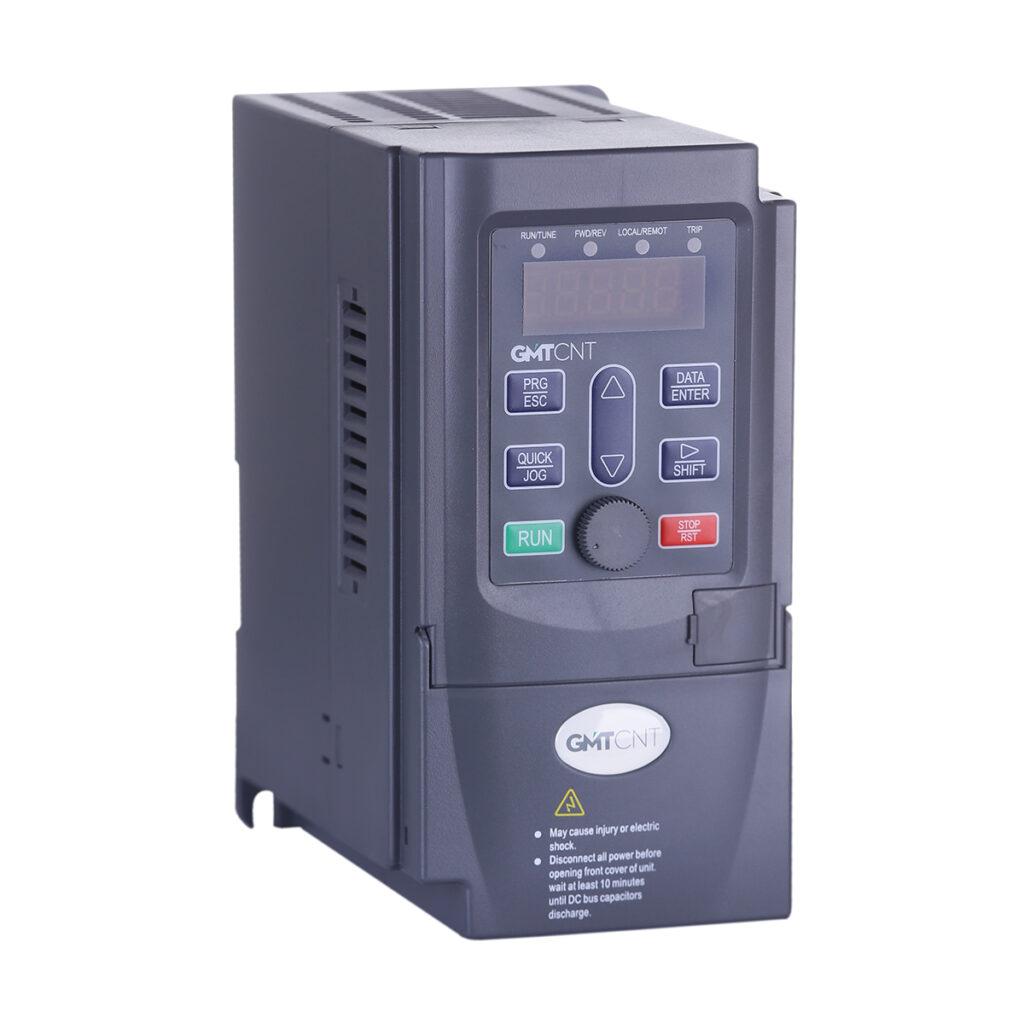

    GAIN SPEED CONTROL DEVICE – AC DRIVE – INVERTER

    3 x 380VAC ( ±15% ) supply voltage

    V/F control

    High starting torque (150% at 1Hz)

    4 PNP/NPN digital inputs

    1 relay output

    1 analog input (0-10VDC / 4-20mA)

    1 analog output (0-10VDC)

    PID control

    Built-in brake chopper

    Automatic energy balancing with a common DC Bus

    RS-485 communication port supporting Modbus RTU

    Easy-to-use interface

    Automatic motor parameter adjustment with autotune feature

    Adjustable output frequency up to 3000Hz

    Supply Voltage 3x380VAC (Three-phase)
    Supply Frequency 47 Hz to 63 Hz
    Control Mode V/f control mode
    Frequency Range 0 Hz to 3000 Hz
    Adjustment Resolution Digital: 0.01 Hz, Analog: Maximum frequency / 2000
    Overload Current Ratio 150% for 60 sec, 180% for 10 sec, 200% for 3 sec
    Acceleration and Deceleration 0.1 sec to 3600.0 sec
    Starting Torque 150% at 1 Hz
    DC Braking Available
    PID Function Available
    Communication RS-485 communication supporting standard MODBUS RTU protocol
    Digital Input 4 selectable PNP or NPN digital inputs
    Relay Output 1 programmable relay output
    High-Speed Pulse Input 1 high-speed pulse input
    Analog Input 1 selectable 4-20 mA or 0-10 V analog input
    Analog Output 1 programmable 4-20 mA or 0-10 V analog output
    Operating Temperature -10°C to 40°C
    Storage Temperature -20°C to 60°C
    Humidity Below 90% Rh (non-condensing)
    Protection Class IP20



    Product Code Power Rating Current Rating Suitable Brake Resistor Width (mm) Height (mm) Depth (mm)
    GAIN-00075H 0.75 kW 3.4 A 300W - 300Ω 85 160 130
    GAIN-00150H 1.5 kW 4.8 A 300W - 300Ω 85 160 130
    GAIN-00220H 2.2 kW 6 A 300W - 300Ω 85 160 130
    GAIN-00370H 3.7 kW 9.5 A 600W - 130Ω 85 160 130
