    GFD 0.40kW~2.2kW

    Emos Group Industrial Electronics Industrial Automation and Control AC Drive GFD 0.40kW~2.2kW
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

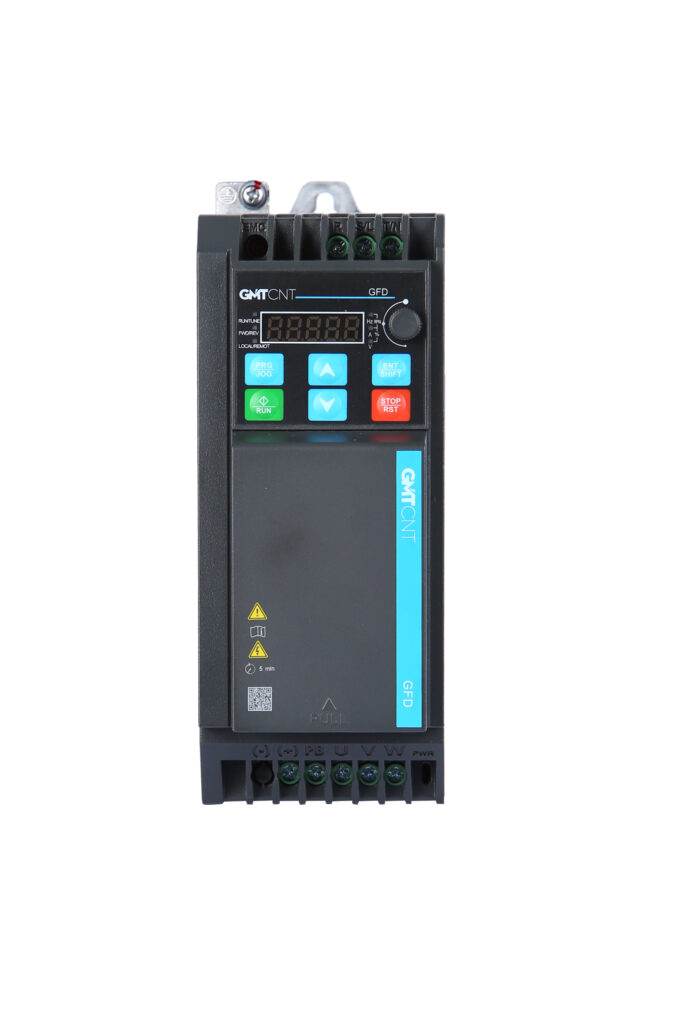

    GFD 0.40kW~2.2kW

    It is an AC drive and inverter. It operates on 200V-240V single phase, supports V/F and sensorless vector control. It drives IM/PM motors, offers 150%/60s overload capacity, includes a brake unit, ModBus communication, and autotune features. Additionally, it provides an EMC filter, STO function, fast parameter copying, and analog/digital input-output.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

    GFD SPEED CONTROL DEVICE – AC DRIVE – INVERTER

    AC 1 Phase 200V–240V

    V/F and Sensorless Vector Control (SVC)

    Capable of driving IM and PM motors

    Overload capacity: %150/60s, %180/10s

    Built-in brake unit

    Built-in ModBus RS485 communication

    Multi-step speed and simple PLC functions

    Autotune feature

    C3 Class EMC filter

    STO function (Optional)

    One-click parameter copying and loading with an external panel

    Innovative independent air channel design and standard coated circuit board prevent dust and oil entry, protecting the VFD

    Full protection of electronic components on the PCB, providing longer product life and reliability

    Side-by-side mounting capability

    Spring control terminals for fast, tool-free wiring

    2 Channels Analog Input AI1: 0…10V/0…20mA; AI2: 0…10V

    1 Channel Analog Output AO1: 0…10V/0…20mA

    4 Channels Digital Input

    2 Channels Relay Output

    Power Supply Voltage 1x220VAC (Single Phase)
    Power Supply Frequency 47 Hz to 63 Hz
    Control Mode (V/F) and sensorless vector control (SVC)
    Frequency Range 0 Hz to 599 Hz
    Adjustable Resolution Digital: 0.01 Hz, Analog: Maximum frequency / 2000
    Overload Current Rate %150/60s, %180/10s
    Acceleration and Deceleration 0.1 s to 3600.0 s
    DC Braking Yes
    PID Function Yes
    Communication Standard MODBUS RTU protocol supporting RS-485 communication
    Digital Input 4 selectable PNP or NPN digital inputs
    Relay Output 2 programmable relay outputs
    Fast Pulse Input 1 fast pulse input
    Analog Input 2 Channels Analog Input AI1: 0~10V/0~20mA; AI2: 0~10V
    Analog Output 1 programmable 4-20 mA or 0-10 V selectable analog output
    Operating Temperature -10°C to 50°C
    Protection Class IP20



    Product Code Power Information Current Information Suitable Brake Resistance Width (mm) Height (mm) Depth (mm)
    GFD-00040S 0.4 Kw 2.5 A 360 ~ 480W 60 190 155
    GFD-00075S 0.75 kW 4.2 A 190 ~ 900W 60 190 155
    GFD-00150S 1.5 kW 7.5 A 95 ~ 1800W 70 190 155
    GFD-00220S 2.2 kW 10 A 65 ~ 2600W 70 190 155
