    GFD 0.75 kW~7.5 kW

    GFD AC 3 Phase 380V-480V speed controller offers V/F and sensorless vector control (SVC). It provides %150/60s overload capacity, ModBus RS485 communication, autotune, C3 EMC filter, STO (optional), 2 analog inputs/outputs, 4 digital inputs, and 2 relay outputs. It features an innovative design and long lifespan.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

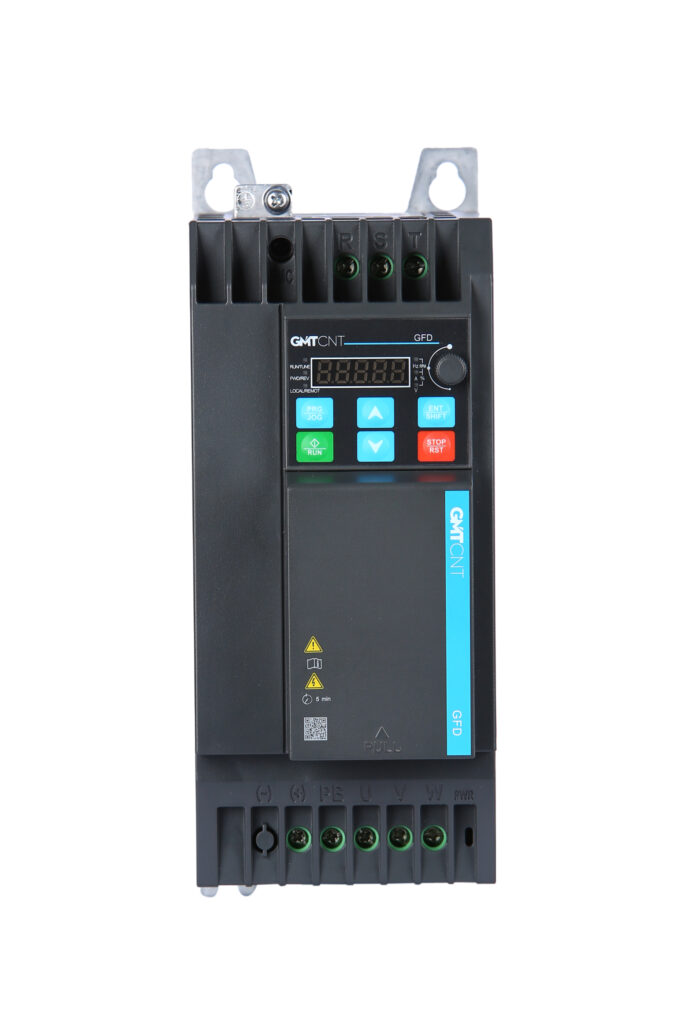

    GFD SPEED CONTROL DEVICE – AC DRIVER – INVERTER

    AC 3 Phase 380V–480V

    V/F and Sensorless Vector Control (SVC)

    Supports IM and PM motors

    Overload capacity %150/60s, %180/10s

    Built-in braking unit

    Built-in ModBus RS485 communication

    Multi-step speed and simple PLC function

    Autotune Feature

    C3 Class EMC filter

    STO function (Optional)

    One-click parameter copying and uploading with external panel

    Innovative independent air channel design and standard coated circuit board, preventing dust and oil entry to protect the VFD

    Complete protection of electronic components on the PCB, ensuring longer product life and reliability

    Side-by-side mounting option

    Spring-loaded control terminals for quick and tool-free wiring

    2 Channel Analog Input AI1: 0…10V/0…20mA; AI2: 0…10V

    1 Channel Analog Output AO1: 0…10V/0…20mA

    4 Channel Digital Input

    2 Channel Relay Output

    Supply Voltage AC 3 Phase 380V–480V (Three-phase)
    Supply Frequency 47 Hz to 63 Hz
    Control Mode (V/F) and sensorless vector control (SVC)
    Frequency Range V/F control: 0 Hz to 3000.0 Hz
    Vector control: 0 Hz to 300.00 Hz
    Adjustment Resolution Digital: 0.01 Hz, Analog: Max frequency / 2000
    Overload Current Ratio 60s: %150, 10s: %180, 3s: %200
    Acceleration and Deceleration 0.1s to 3600.0s
    DC Braking Yes
    PID Function Yes
    Communication Standard MODBUS RTU protocol supporting RS-485 communication
    Digital Inputs 4 PNP or NPN selectable digital inputs
    Relay Outputs 2 programmable relay outputs
    Fast Pulse Input 1 fast pulse input
    Analog Input 2 Channel Analog Input AI1: 0-10V / 0-20mA; AI2: 0~10V
    Analog Output 1 programmable 4-20 mA or 0-10 V selectable analog output
    Operating Temperature -10°C to 50°C
    Protection Class IP20



    Product Code Power Information Current Information Suitable Brake Resistance Width (mm) Height (mm) Depth (mm)
    GFD-00075H 0.75 kW 2.5 A 650 ~ 900W 60 190 155
    GFD-00150H 1.5 kW 3.7 A 325 ~ 1800W 60 190 155
    GFD-00220H 2.2 kW 5.5 A 220 ~ 2600W 70 190 155
    GFD-00400H 4 kW 9.5 A 120 ~ 4800W 70 190 155
    GFD-00550H 5.5 kW 14 A 90 ~ 6600W 90 235 155
    GFD-00750H 7.5 kW 18.5 A 65 ~ 9000W 90 235 155
