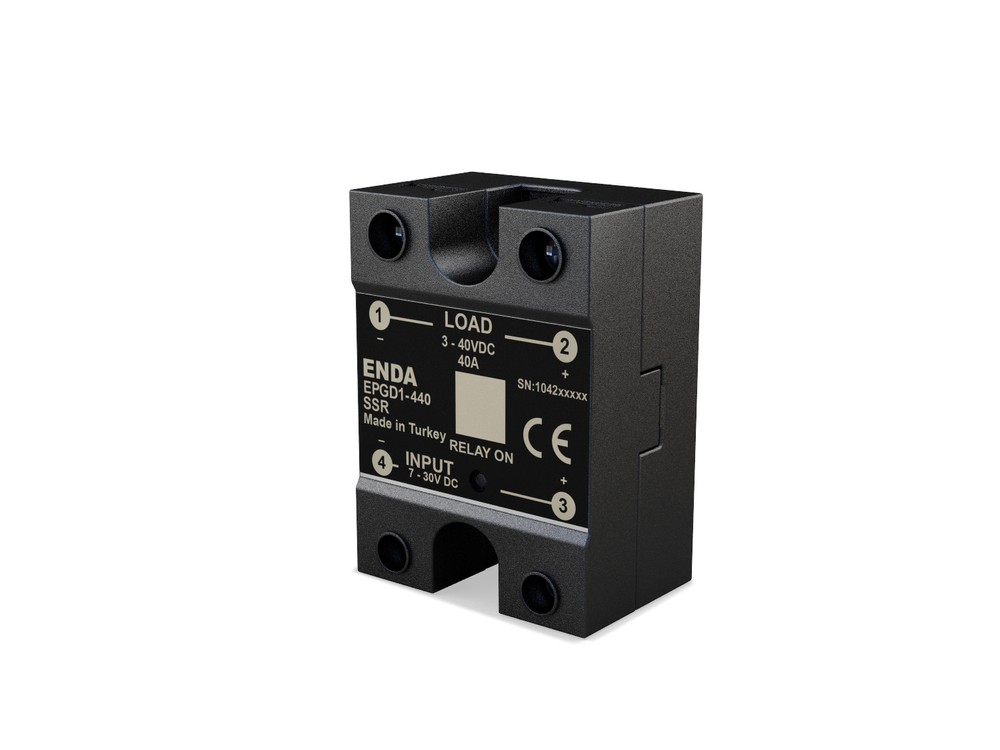

    EPGD1

    Single Phase 7-30V DC Input Voltage 3-40V DC Load Voltage

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EPGD1
    40A AC load current
    3-40V DC load voltage
    7-30V DC input voltage
    LED indicator for input voltage
    Varistor protection for peak voltages
    CE marked according to EN standards



    Ambient/Storage Temperature -25...60 °C / -30...100 °C
    Relative Humidity Up to 50% at 40 °C, increases as temperature decreases and works at 90% humidity at 20 °C
    Protection Class According to EN 60529 standard: IP20
    Altitude Up to 1000m
    Input Voltage 7-30V DC
    Transmission Voltage >7V DC
    Cut-off Voltage <6V DC
    Input Current <20mA DC
    Transmission Time 5ms
    Cut-off Time 5ms
    LED Indicator LED lights up if transmission voltage >6V DC
    Load Current (A DC) EPGD1-440Z: 40
    Load Voltage (V DC) 3-40
    Frequency (Hz) 100
    Mounting Method Mounted on panel with M4 screws
    Dimensions W45xH62xD31 mm
    Weight 95g (with packaging)
    Enclosure Materials Self-extinguishing plastics used
