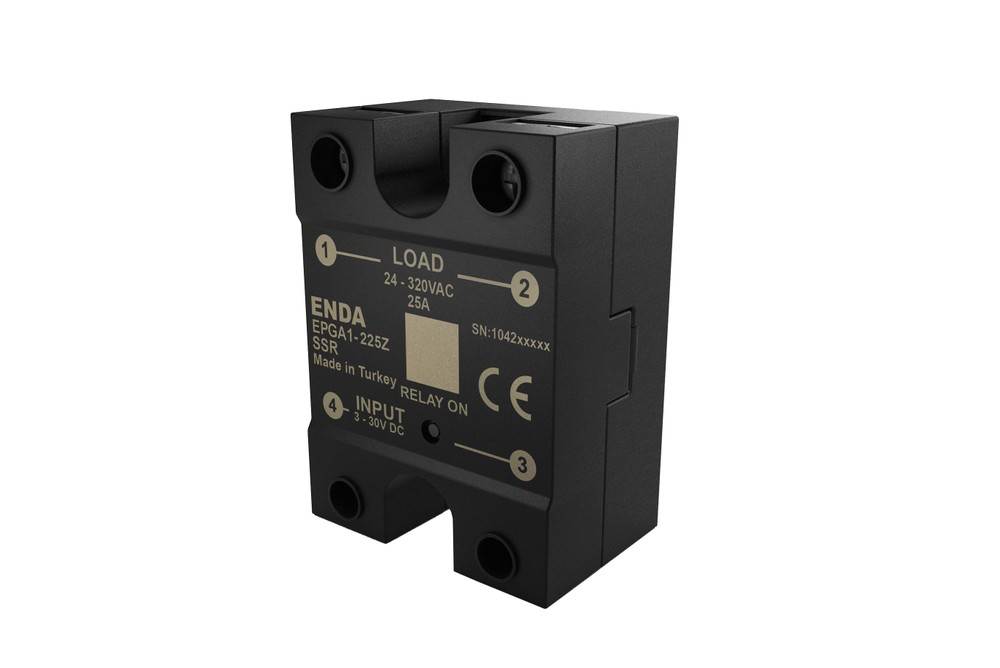

    EPGA1

    Emos Group Industrial Electronics Industrial Automation and Control Solid State Relays EPGA1
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

    EPGA1

    Phase: Single-phase Input Voltage: 3-30V DC Load Voltage: 24-320V AC or 50-480V AC Switching: Zero/random crossing

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EPGA1

    12-25-40-50-70A AC load current

    320V AC or 480V AC load voltage

    3-30V DC input voltage

    LED indicator for input voltage

    Switching at zero/random crossing of AC voltage

    Applicable to three-phase loads

    Varistor protection for peak voltages

    CE marked according to EN standards

    Operating/Storage Temperature -25...60 °C / -30...100 °C
    Relative Humidity Up to 50% at 40 °C, increases linearly and operates at 90% humidity at 20 °C
    Protection Class According to EN 60529 standard: IP20
    Altitude Up to 1000m
    Input Voltage 3-30V DC
    Activation Voltage >3V DC
    Cut-off Voltage <2V DC
    Input Current <10mA DC
    Activation Time Maximum half-period
    Cut-off Time Maximum half-period
    LED Indicator LED lights up when activation voltage >3V DC
    Load Current (Arms) EPGA1-212X: 12
    EPGA1-225X: 25
    EPGA1-240X: 40
    EPGA1-425X: 25
    EPGA1-440X: 40
    EPGA1-450X: 50
    EPGA1-470X: 70
    Load Voltage (Vrms) EPGA1-212X, EPGA1-225X, and EPGA1-240X: 24-320
    EPGA1-425X, EPGA1-440X, EPGA1-450X, and EPGA1-470X: 50-480
    Frequency (Hz) 50-60
    Mounting Type Mounted on the panel with M4 screws
    Dimensions W45xH62xD31 mm
    Weight EPGA1-2xx/4xxX: 95g (with packaging)
    EPGA1-450/470X: 110g (with packaging)
    Housing Materials Self-extinguishing plastics used
