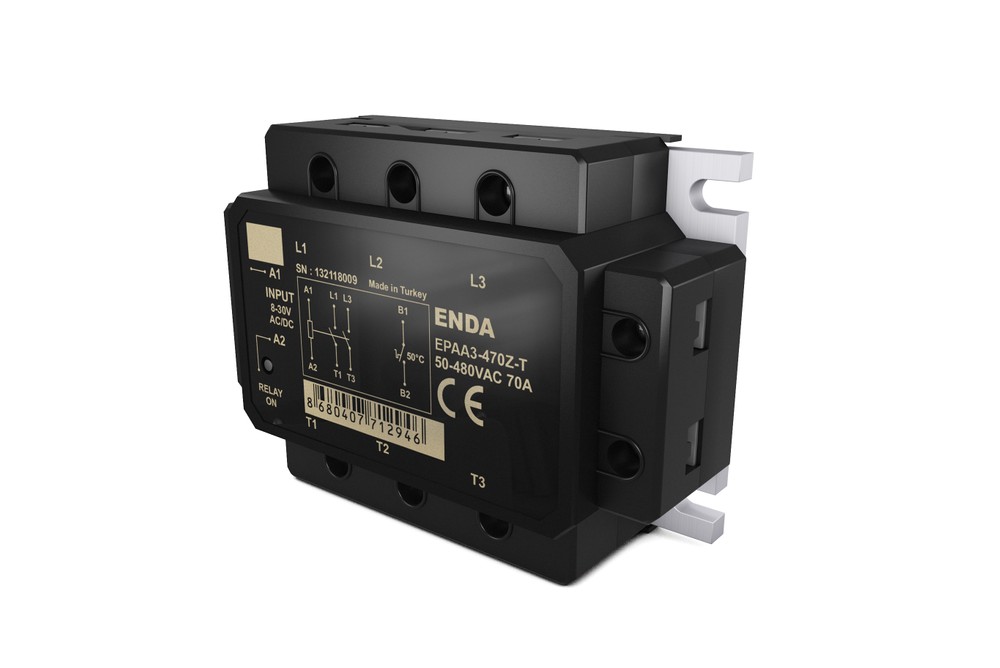

    EPAA3

    Three-phase 90-240V AC input voltage 50-480V AC output voltage

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EPAA3

    25-40-50A AC three-phase load current

    50-480V AC load voltage

    90-240V AC input voltage

    LED indicator for input voltage

    Switching at zero-crossing of AC voltage

    Applicable for three-phase loads

    Varistor protection for peak voltages

    Fan control thermostat

    CE marked according to EN standards

    Ortam/Depolama Sıcaklığı -25...60 ºC / -30...100 ºC
    Bağıl Nem 40 ºC'ye kadar %50, sıcaklık azaldığında artarak 20 ºC'de %90 nemde çalışır
    Koruma Sınıfı EN 60529 standardına göre IP20
    Yükseklik En çok 1000m
    Giriş Gerilimi 90-240V AC
    İletim Gerilimi >75V AC
    Kesme Gerilimi ˂6V AC
    Giriş Akımı ˂8mA AC
    İletim Zamanı Max. 1 Periyot
    Kesme Zamanı Max. 2 Periyot
    LED Gösterge İletim gerilimi ˃75V AC ise LED yanar
    Yük Akımı (Arms) EPAA3-425Z: 3x25
    EPAA3-440Z: 3x40
    EPAA3-450Z: 3x50
    Yük Gerilimi (Vrms) 50-480
    Frekans (Hz) 50-60
    Montaj Şekli M5 vidalar ile panele monte edilir
    Ebat G103xY74xD37 mm
    Ağırlık EPAA3-425/440Z için 200g (ambalajlı olarak)
    EPAA3-450Z için 220g (ambalajlı olarak)
    Kutu Malzemeleri Kendi kendine sönen plastikler kullanılmıştır
