    EPDA2

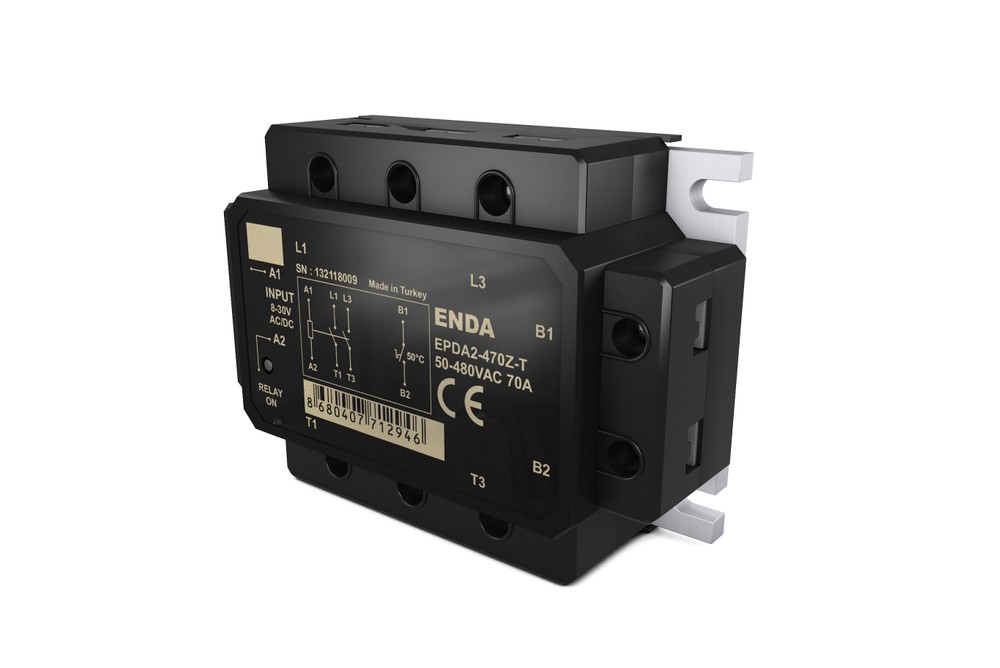

    Monophase, 2 x Solid State Relay 8-30V AC/DC Input Voltage 50-480V AC Load Voltage

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EPDA2

    2x25-2x40-2x70A AC load current

    50-480V AC load voltage

    8-30V AC/DC input voltage

    LED indicator for input voltage

    Switching at zero crossing of AC voltage

    Applicable to three-phase loads

    Varistor protection for peak voltages

    Fan control thermostat

    CE marked according to EN standards

    Operating/Storage Temperature -25...60 °C / -30...100 °C
    Relative Humidity Up to 50% at 40 °C, increasing as the temperature decreases, works at 90% humidity at 20 °C
    Protection Class IP20 according to EN 60529 standard
    Height Up to 1000m
    Input Voltage 8-30V AC/DC
    Transmission Voltage >6V AC/DC
    Cut-off Voltage <2V AC/DC
    Input Current <17mA AC/10mA DC
    Transmission Time Max. ½ Period
    Cut-off Time Max. ½ Period
    LED Indicator LED lights up if the transmission voltage is >6V AC/DC
    Load Current (Arms) EPDA2-425Z: 2x25
    EPDA2-440Z: 2x40
    EPDA2-470Z: 2x70
    Load Voltage (Vrms) 50-480
    Frequency (Hz) 50-60
    Mounting Method Mounted on the panel with M4 screws
    Dimensions W103xH74xD37 mm
    Weight 275g (with packaging)
    Box Material Self-extinguishing plastics used
