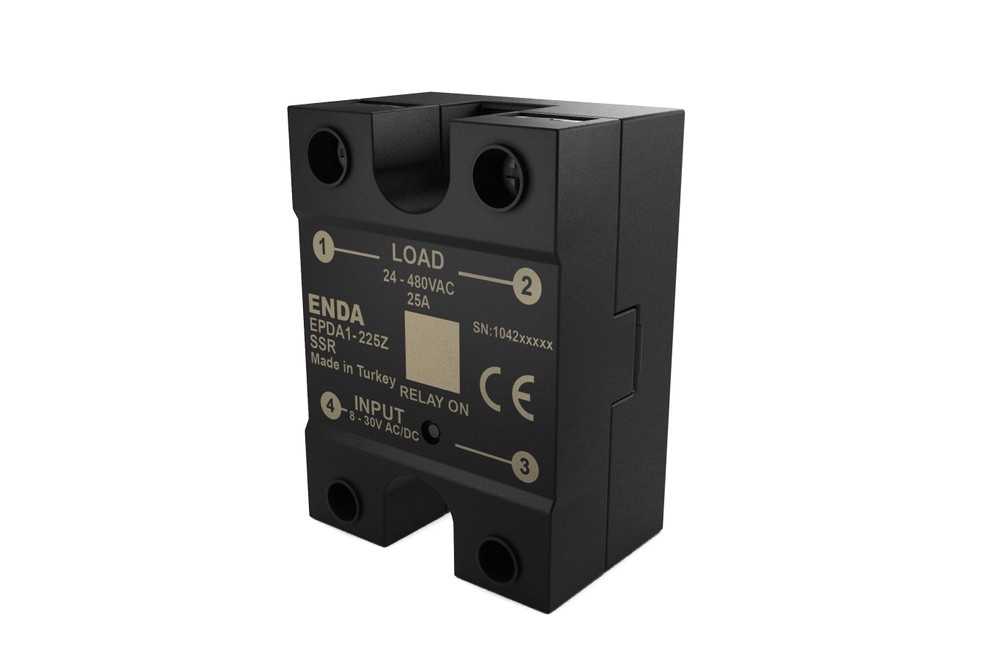

    EPDA1

    Emos Group Industrial Electronics Industrial Automation and Control Solid State Relays EPDA1
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

    EPDA1

    Single-phase 8-30V AC/DC Input Voltage 24-320V AC or 50-480V AC Load Voltage Zero/random crossing

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

    EPDA1

    12-25-40-50-70-100-120A AC load current

    320V AC or 480V AC load voltage

    8-30V AC/DC input voltage

    LED indicator for input voltage

    Switching at zero/random crossing of AC voltage

    Applicable to three-phase loads

    Varistor protection for peak voltages

    CE certified according to EN standards

    Environmental Features
    Ambient/Storage Temperature -25...60 °C / -30...100 °C
    Relative Humidity Works in environments with up to 50% humidity at 40 °C, increasing to 90% humidity at 20 °C as temperature decreases
    Protection Class According to EN 60529 standard: IP20
    Altitude Up to 1000m
    Electrical Features
    Input Voltage 8-30V AC/DC
    Trigger Voltage >6V AC/DC
    Cutoff Voltage <2V AC/DC
    Input Current <17mA AC / 10mA DC
    Trigger Time Maximum ½ Cycle
    Cutoff Time Maximum ½ Cycle
    LED Indicator LED lights up when the trigger voltage is >6V AC/DC
    Load Current (Arms) EPDA1-212X: 12
    EPDA1-225X: 25
    EPDA1-240X: 40
    EPDA1-425X: 25
    EPDA1-440X: 40
    EPDA1-450X: 50
    EPDA1-470X: 70
    EPDA1-4100X: 100
    EPDA1-4120X: 120
    Load Voltage (Vrms) EPDA1-212X, EPDA1-225X, and EPDA1-240X: 24-320
    EPDA1-425X, EPDA1-440X, EPDA1-450X, EPDA1-470X, EPDA1-4100X, and
    EPDA1-4120X: 50-480
    Frequency (Hz) 50-60
    Enclosure
    Mounting Type Mounted on the panel with M4 screws
    Dimensions 45x62x31 mm
    Weight EPDA1-2xx/4xxX: 95g (with packaging)
    EPDA1-450/470X: 110g (with packaging)
    EPDA1-4100/4120X: 115g (with packaging)
    Enclosure Material Self-extinguishing plastics used
