    ARC/ARS-S-1XP8001 Special Serial Rotary Encoder

    ARC/ARS-S-1XP8001 Special Series Special Manufacturing Series product.Incremental precision measurement, 58 mm body diameter, magnetic or optical principle option, special screw special milestone, reverse polarity and short circuit protection features.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

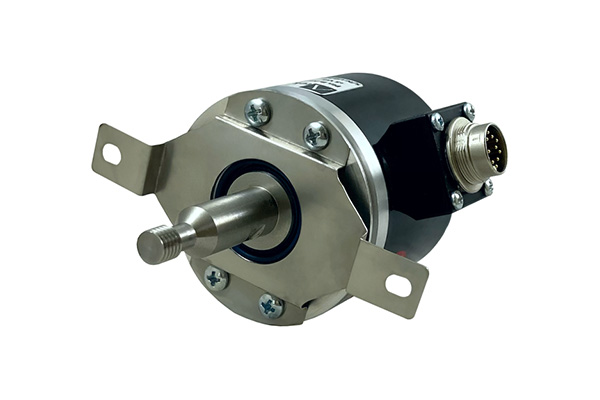

    ARC/ARS-S-1XP8001 SPECIAL SERIES ROTARY ENKODER

    ARC/ARS-S-1XP8001 Special Series Special Manufacturing Series product.

    Incremental precision measurement, 58 mm body diameter, magnetic or optical principle option, special screw special milestone,

    It has reverse polarity and short circuit protection properties.

    Ars: Magnetic, ARC: Incremental angular measurement with optical principle.

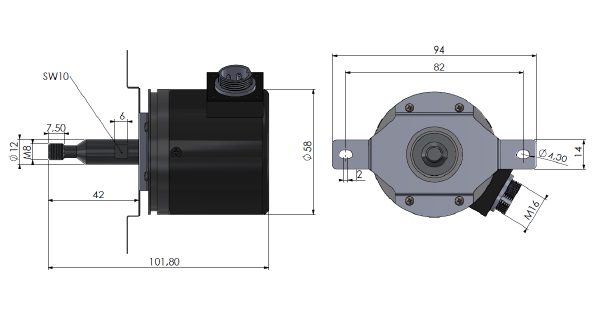

    It has a 58 mm diameter body.

    The main body is 12mm, the end section is 8 mm screw gear.

    It has 1024 pulse resolution.

    It has 1024 pulse resolution.

    It has reverse polarity and short circuit protection.

    It is resistant to vibration and shock with a solid aluminum body.

    Easy to be installed.

    It is resistant up to 6000 rpm speed.(6000 revolutions per minute)

    It has an IP54 protection class.

    Resolution 1024 pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Feeding voltage 10 ... 30 VDC or 5 VDC
