    ARC H 100 Hollow Shaft Rotary Enkoder

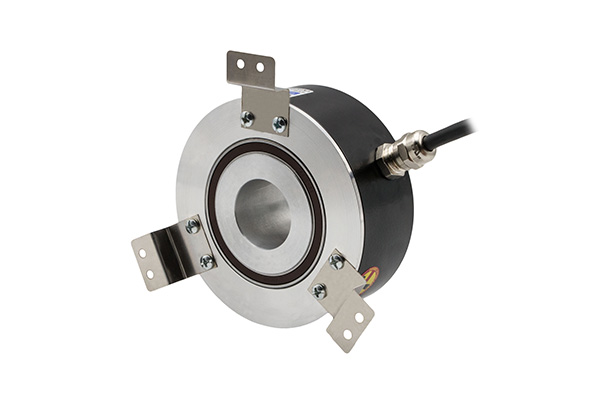

    ARC H 100 Hollow Rotary ENCODER Makes Incremental Sensitive Measurement.The 58 mm body diameter has high sensitivity measurement, full -perforated (Hollow) shaft, different flange option features.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ARC H 100 Hollow Shaft Rotary Enkoder

    ARC H 58 Hollow Shaft Makes Incremental Sensitive Measurement.

    58 mm body diameter, high -precision measurement as it works with optical principle,

    58 mm body diameter, high -precision measurement as it works with optical principle,

    Incremental angular measurements with optical principle.

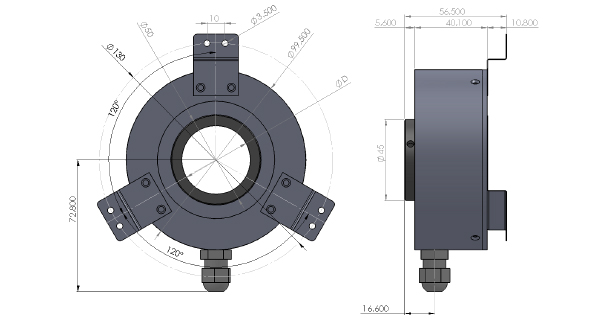

    It has a 100 mm diameter body.

    Z -type flange is available.

    30, 32, 38, 40 or 42 mm diameter full -perforated shaft options.

    It is resistant to vibration and shock with a solid aluminum body.

    Easy to be installed.

    1024 Pulse resolution options.

    It is durable up to 3000 rpm speed.(3000 revolutions per minute)

    It has an IP54 protection class.

    Resolution 1024 pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Feeding voltage 10 ... 30 VDC or 5 VDC
