    ARC S 58 Shaft Rotary Enkoder

    Arc S 58 Shaft Rotary ENCODER INCREMENTAL SENSITIVE MEASUREMENT, 58 mM body diameter, high -precision measurement, shaft design, different flange option features.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

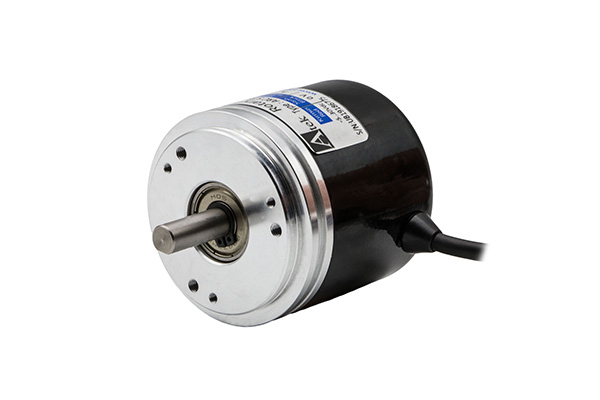

    ARC S 58 Shaft Rotary Enkoder

    Incremental angular measurements with optical principle.

    It has a 58 mm body diameter.

    It has a 58 mm body diameter.

    S16 (M16, 8pin), S23 (m23, 12pin) are socket or standard cable options.

    There are 6, 8, 10, 12 or 14 mm diameter shaft options.

    It is resistant to vibration and shock with a solid aluminum body.

    Easy to be installed.

    There are resolution options up to 20,000 pulse.

    It is resistant up to 6000 rpm speed.(6000 revolutions per minute)

    IP54 protection class.

    Resolution Options between 60 and 20000 pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Feeding voltage 10 ... 30 VDC or 5 VDC
