    Arc B 50 End Hollow Rotary Enkoder

    Arc B 50 End Hollow Rotary ENCODER ENCODER Incremental precision measurement, 50 mm body diameter, high -precision measurement, semi -hole (End Hollow) shaft, has different flange options features.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

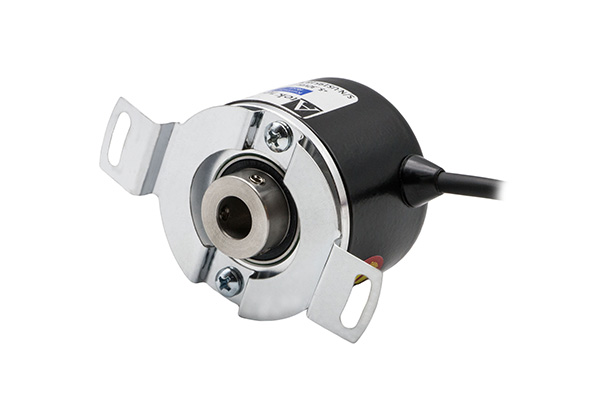

    Arc B 50 End Hollow Rotary Enkoder

    Incremental angular measurements with optical principle.

    It has a body diameter of 50 mm.

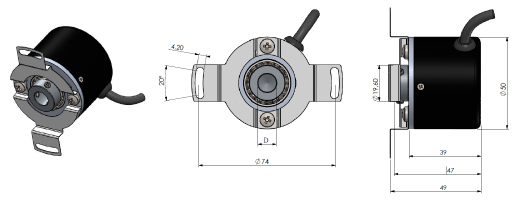

    There are Z -type flange or circular flange options.

    M16 has socket or standard cable options.

    It has 6, 8, 10 or 12 mm semi -Hollow (End Hollow/Semi Hollow) shaft options.

    It is resistant to vibration and shock with a solid aluminum body.

    Easy to be installed.

    It has a resolution option up to 20,000 pulse.Please contact for other options.

    It is resistant up to 6000 rpm speed.(6000 revolutions per minute)

    IP54 protection class.

    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Protection class IP54
    Body diameter 50 mm
    Signal output A, /A, B, /B, Z, /Z
