    LTS Magnetic Linear Encoders

    LTS Magnetic Linear Encoder resembles a piston in its design. LTS Magnetic Scales offer a standard resolution of 5 µm (0.005 mm) and are available in stroke lengths up to 1000 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    LTS MAGNETIC LINEAR ENCODERS

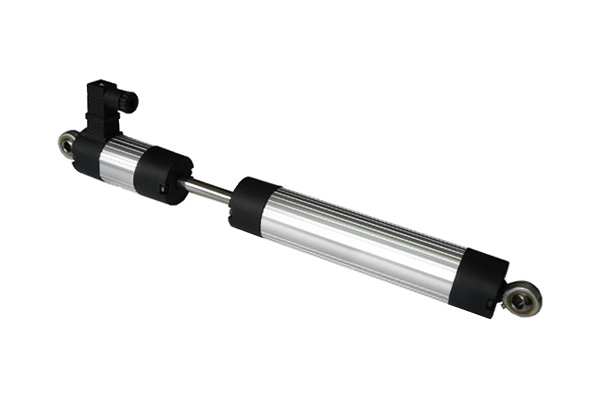

    LTS Magnetic Linear Encoder resembles a piston in its design.

    LTS Magnetic Linear Encoders perform contactless measurement as there is no mechanical friction between the reader sensor and the scale.

    Supply voltage options: 5V DC - TTL or 24V DC - PPL.

    Provides incremental (encoder/pulse) signal output.

    LTS Magnetic Scales offer a standard resolution of 5 µm (0.005 mm).

    Available in stroke lengths up to 1000 mm.

    Thanks to the hinges on both sides, they minimize mechanical contraction and parallelism issues, ensuring the scale moves according to the working form.

    With IP65 Protection Class, they are resistant to oil, water, dust, and similar external factors.

    Featuring a contactless, frictionless, maintenance-free, long-lasting compact system.

    With a robust aluminum housing, they are resistant to vibrations and shocks.

    Resolution 5µm, 10µm, 20µm, 25µm, 62.5µm, 80µm, 100µm
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection DIN 43650 4-pin socket or cable
    Supply Voltage TTL: 5 VDC or PP: 24 VDC
    Output Type Push Pull or TTL RS482 Line Driver
    Protection Class IP65
    Output Signals Standard: A, B. In cabled models, ABZ or A, /A, B, /B, Z, /Z
    Repeatability ±1 Pulse
