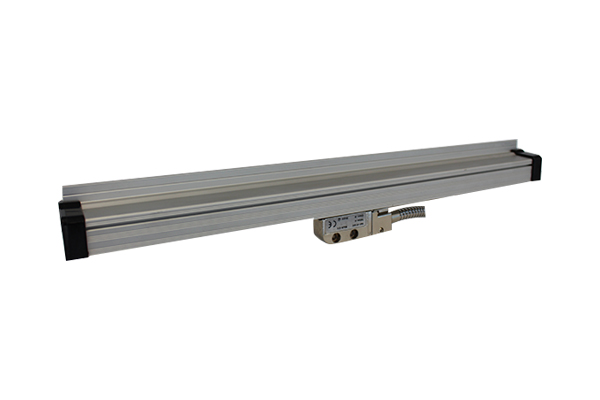

    EMS110 MAGNETIC SCALES

    EMS110 Magnetic Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications.

    EMS110 Magnetic Scales perform contactless measurement as there is no mechanical friction between the reader sensor and the scale.

    Supply voltage options: 5V DC - TTL or 24V DC - PPL.

    Provides incremental (encoder/pulse) signal output.

    Standard resolution is 5 µm (0.005 mm).

    Can be applied for measurement lengths up to 20 meters.

    EMG120 or EMG121 Magnetic Reader Sensors operate contactlessly at a maximum distance of 2 mm.

    Eliminates mechanical contraction and parallelism issues, protecting the reader sensor against breakage.

    With IP67 Protection Class, they are resistant to oil, water, dust, and similar external factors.

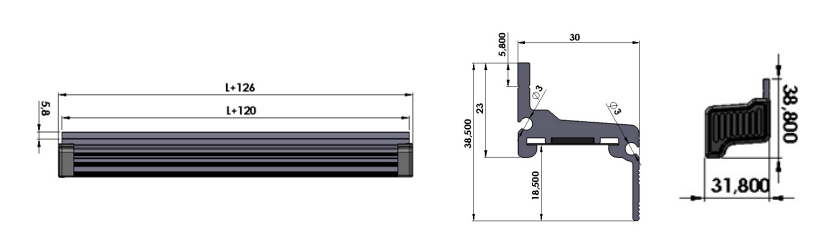

    The Z-shaped body allows installation in narrow machine spaces.

    The cables are protected by a steel galvanized spiral conduit to prevent damage under harsh production conditions.

    Standard cable lengths are 3.5 and 5 meters. Optional single-piece lengths up to 50 meters can be manufactured.

    EMS320 Magnetic Scales can be used with EMOS80, EMOS100 Digital Displays, PLCs, CNC Systems, Digital Counters, and all devices with encoder reading capability.

    Resolution 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm...
    Operating Temperature -25°C ... +85°C
    Operating Speed 3 m/s
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage PPL: 10–30 VDC or TTL: 5 VDC
    Housing Material Aluminum Z-Type Profile
    Output Type Push-Pull or TTL RS422 Line Driver
    Protection Class IP67
    Sensor-to-Band Operating Distance 1 mm (Max. 2 mm)
    Magnetic Band Type B5 (Optional B2)
    Lifespan Infinite (contactless)
    Output Signals A, /A, B, /B, Z, /Z
    Repeatability ±1 Pulse
