    ETS1410

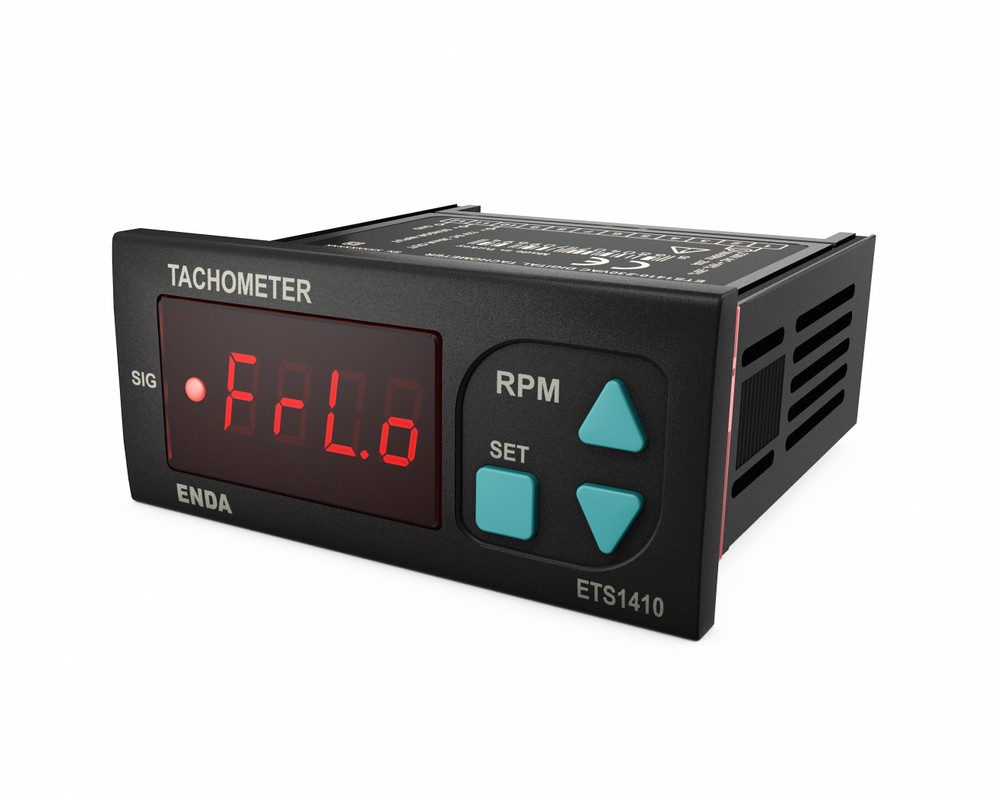

    77x35 mm Sized, PNP Input Tachometer

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ETS1410

    Easy to use

    Option to adjust decimal point

    Ability to enter divisor value between 1 and 999

    Automatic sampling time selection based on input frequency

    CE certified according to EN standards

    Ambient/Storage Temperature 0 ... 50 °C / -25 ... 70 °C
    Relative Humidity Operates up to 80% at 31°C, then decreases linearly to 50% at 40°C
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Maximum 2000m
    Supply Voltage 230V AC +10% -20% or 24V AC ±10%, 50/60Hz or 10-30V DC / 8-24V AC ±10% SMPS
    Power Consumption 5VA
    Connection Screw terminal
    Accuracy %0.01
    Sensor Input 5 to 30V pulse
    Measurement Frequency Measures frequencies between 0.07 and 10000Hz
    Sampling Time Automatically adjusted based on input frequency. Minimum 1 second, maximum 16 seconds
    Sensor Power Output 12V DC, Maximum 30mA (non-regulated)
    Mounting Type Mounted to the panel by compression
    Dimensions W77xH35xD71 mm
    Weight Approximately 195g (including packaging)
    Enclosure Materials Self-extinguishing plastics used
