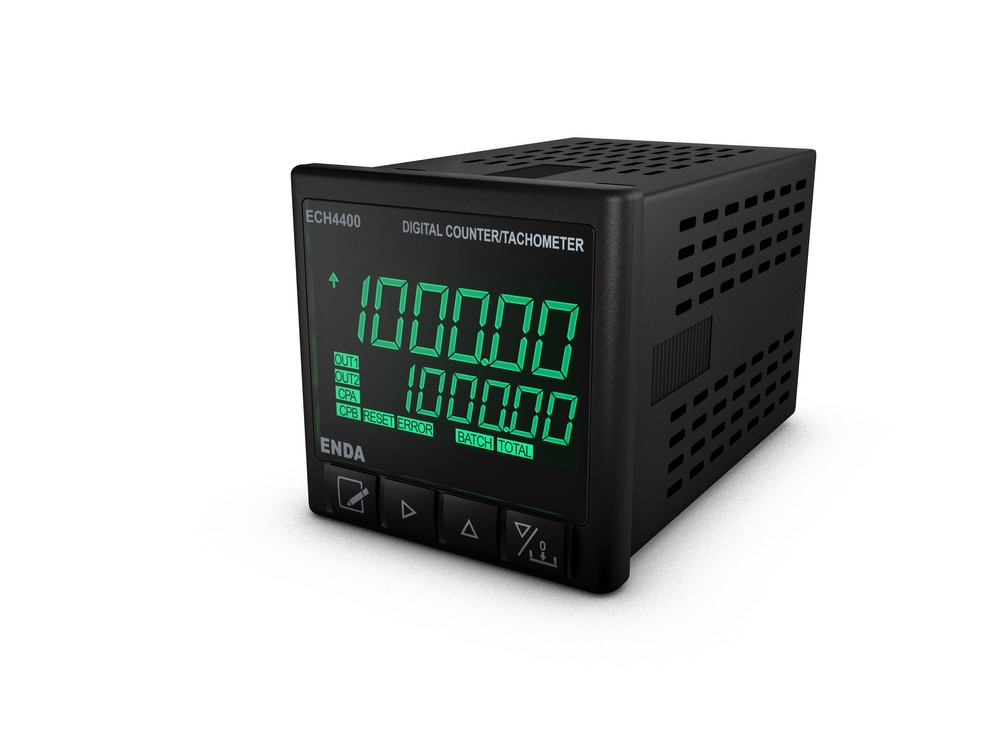

    ECH4400

    48x48 mm Sized, LCD Screen, PNP/NPN/Encoder Input, Two Relay Outputs, Selectable Counter or Tachometer

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

    ECH4400

    2x6 digit display

    Programmable as a counter and RPM/speed measurement device

    6-digit batch counting function

    9-digit total counting function

    Ability to measure period, time difference, pulse time, RPM, and speed

    Easily adjustable via front panel buttons

    Counts forward/backward with phase-differentiated input

    Selectable input frequency

    Input signal can be calibrated by multiplying with a desired value between 0.000001 and 99.9999

    Decimal point adjustable between the 1st and 5th digit

    Sensor input type selectable via keypad (PNP, NPN)

    Dual set and dual contact

    SET1 can be dependent on SET2

    Output contact can be set for continuous output or for activation between 0.01 to 999.9 seconds

    In RPM measurement mode, output delay can be adjusted

    Selectable functional reset

    Selectable offset between 0 and 500000

    Selectable parameter security

    Easy installation and maintenance with socket terminal connection

    RS485 Modbus communication interface

    CE marked according to EN standards

    Operating/Storage Temperature 0 ...50 °C / -25...70 °C
    Relative Humidity Up to 31 °C 80%, then decreasing linearly to 50% at 40 °C
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Maximum 2000m
    Supply Voltage 230V AC +10% -20%, 50/60Hz or 24V AC ±10%, 50/60Hz or 9-30V DC / 7-24V AC ±10% SMPS
    Power Consumption 5VA
    Connection Socket terminal
    Counting Input CPA, CPB 2 inputs (maximum 50kHz, 5V to 30V pulse), selectable as PNP and NPN input
    Counting Frequency (Hz) Selectable via programming: 20Hz, 50Hz, 100Hz, 500Hz, 1000Hz, 5000Hz, 10kHz, 20kHz, 30kHz, and 40kHz
    Reset Input PNP: Positive reset (adjustable between 1ms and 100ms, 5V to 30V pulse) NPN: Reset by connecting the GND terminal to the RESET IN terminal
    Control Output OUT1 250V AC, 2A (for resistive load), NO+NC
    Control Output OUT2 250V AC, 2A (for resistive load), NO
    SSR1, SSR2 Output Maximum 30V DC, 50mA (S.S. OUT)
    Sensor Supply Output 12V DC, maximum 50mA (unregulated)
    Relay Life 5,000,000 operations unloaded; 200,000 operations at 250V AC, 2A resistive load
    Accuracy ±0.01% ± 1ms
