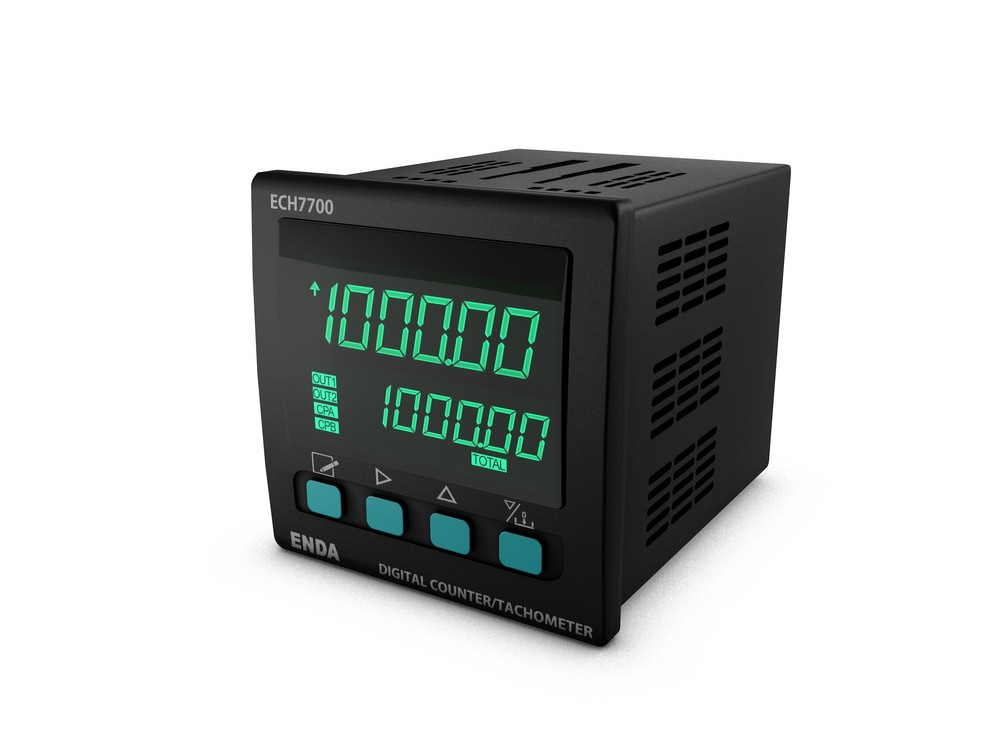

    ECH7700

    2x6 digit display

    Programmable as a counter and revolution/speed measurement device

    6-digit group counting function (Batch Counter)

    9-digit total counting function (Total Counter)

    Measures period, time difference, pulse time, revolution, and speed

    Easily adjustable via buttons on the front panel

    Counts forward/backward with phase-difference input

    Selectable input frequency

    Input signal can be calibrated by multiplying with any desired value between 0.000001 and 99.9999

    Decimal point adjustable between the 1st and 5th digit

    Selectable sensor input type from keypad (PNP, NPN)

    Double-set and double-contact design

    SET1 dependent on SET2 selection

    Output contact can be set for continuous output or adjustable within 0.01 to 999.9 seconds interval

    Output delay adjustable in revolution measurement mode

    Selectable functional Reset

    Selectable offset between 0/500000

    Selectable parameter security

    Easy installation and maintenance with socket terminals

    RS485 Modbus communication interface

    CE certified according to EN standards

    Ambient/Storage Temperature 0 ...50 ºC / -25...70º C
    Relative Humidity Operates up to 80% humidity at 31 ºC, then linearly decreases to 50% at 40 ºC
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Maximum 2000m
    Supply Voltage 230V AC +10% -20%, 50/60Hz or 24V AC ±10%, 50/60Hz or 9-30V DC / 7-24V AC ±10% SMPS
    Power Consumption 5VA
    Connection Socket terminals
    Counting Input CPA, CPB 2 Inputs (Maximum 50kHz, 5V to 30V pulse) Selectable as PNP or NPN input
    Counting Frequency (Hz) Selectable by programming: 20Hz, 50Hz, 100Hz, 500Hz, 1000Hz, 5000Hz, 10kHz, 20kHz, 30kHz, 40kHz
    Reset Input PNP: Positive reset (Adjustable between 1ms to 100ms with a 5V to 30V pulse)
    NPN: Reset by connecting the GND terminal to the RESET IN terminal
    Control Output OUT1 250V AC, 2A (for resistive load), NO+NC
    Control Output OUT2 250V AC, 2A (for resistive load), NO
    SSR1, SSR2 Output Maximum 30V DC, 50mA (S.S. OUT)
    Sensor Supply Output 12V DC, maximum 50mA (unregulated)
    Relay Life 30,000,000 switchings (no load); 200,000 switchings at 250V AC, 2A resistive load
    Accuracy ±% 0.01 ± 1ms
    Mounting Type Inserted into the panel by compression
    Dimensions W72xH72xD97 mm
    Weight Approximately 230g (including packaging)
    Enclosure Materials Self-extinguishing plastics used
