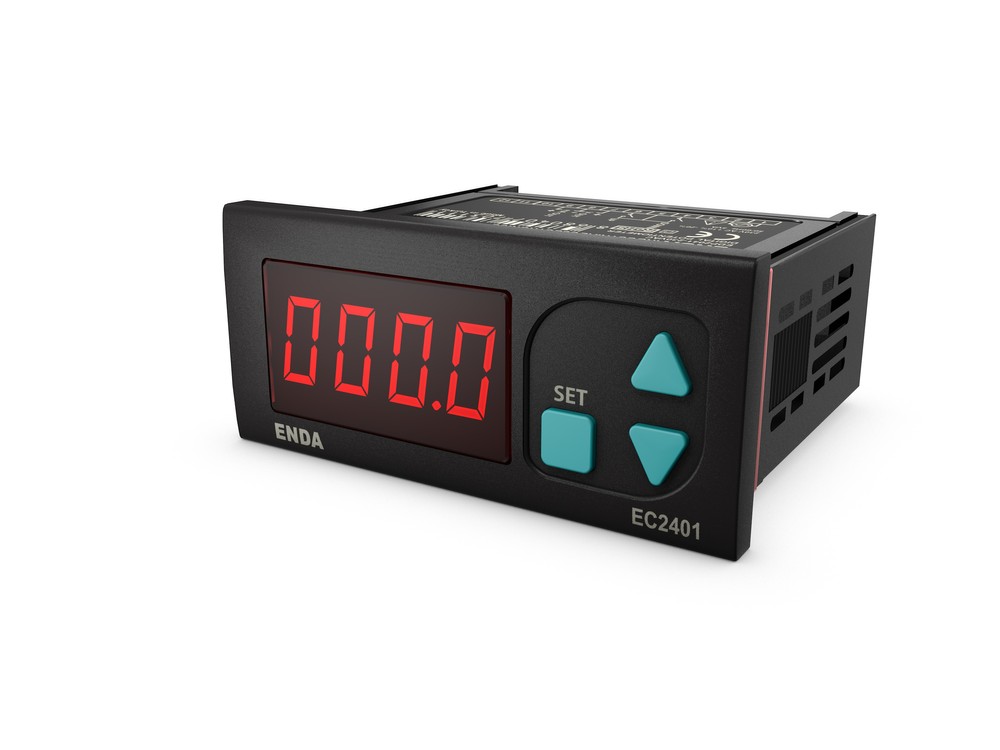

    EC2401

    77x35 mm Sized, Counter with PNP Input

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    EC2401

    Simple operation

    4-digit display

    Easily adjustable via buttons on the front panel

    Selectable input frequency

    PNP sensor input type

    Selectable parameter security

    RS485 Modbus communication interface

    CE certified according to EN standards

    Ambient/Storage Temperature 0 ...50 ºC / -25...70º C
    Relative Humidity Operates at up to 80% humidity at 31 ºC, then linearly decreases to 50% at 40 ºC
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Maximum 2000m
    Supply Voltage 90-250V AC 50/60Hz or 24V AC ±10%, 50/60Hz or 10-30V DC / 8-24V AC ±10% SMPS
    Power Consumption 5VA
    Connection Screw terminals
    Counting Input Pulse from 5V to 30V
    Counting Frequency (Hz) Selectable by programming: 50Hz, 100Hz, 500Hz, 1000Hz, 5000Hz, 10kHz
    Sensor Supply Output 12V DC, max 50mA (unregulated)
    Accuracy ±1 digit
    Mounting Type Inserted into the panel by compression
    Dimensions W77xH35xD61 mm
    Weight Approximately 190g (including packaging)
    Enclosure Materials Self-extinguishing plastics used
