    EMTC2412

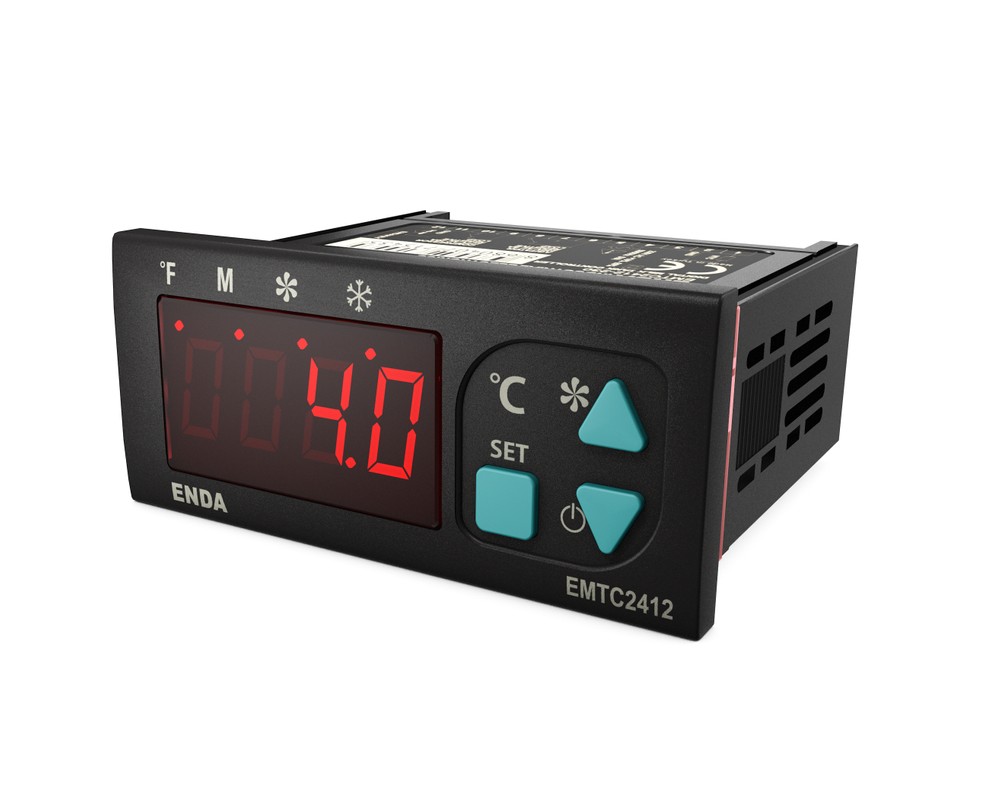

    77x35 mm Sized Milk Tank Control Device

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EMTC2412

    On-Off control

    Selectable 2 relay outputs for cooling and mixer

    Single NTC probe input

    Compressor protection parameters can be entered

    In case of probe failure, compressor operation, stop, or periodic operation can be adjusted

    Adjustable lower and upper limits for the set value

    Adjustable mixer On and Off times

    Lower and upper alarm limits adjustable depending on the set value

    Temperature can be displayed in °F or °C

    External alarm capability with digital input

    Ability to transfer parameters with ENDAKEY without supplying power to the device

    Communication via RS-485 ModBus RTU protocol

    CE marked according to EN standards

    Ambient/Storage Temperature 0 ...+50 °C / -25...+70 °C
    Relative Humidity Up to 80% at 31 °C, then linearly decreasing to 50% at 40 °C
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Maximum 2000m
    Power Supply Voltage 230V AC +%10 -%20 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Screw terminal
    Scale -60.0...150.0 °C
    Sensitivity 0.1 °C (can be selected as 0.1 °C or 1 °C)
    Accuracy ±1 °C
    Time Accuracy ±%1
    Compressor Relay 277V AC, 20A (for resistive load), NO, 2hp 250V AC (for inductive load)
    Blender Relay 250V AC, 8A (for resistive load), NO+NC, 1/2hp 250V AC (for inductive load)
    Relay Lifetime For compressor relay: 10,000,000 switchings without load; 277V AC, 20A (for resistive load), 100,000 switchings. For blender relay: 30,000,000 switchings without load; 250V AC, 8A (for resistive load), 100,000 switchings.
    Control Mode Single set-point control
    Control Method On-Off control
    Hysteresis Adjustable between 1...20.0 °C
    Mounting Method Mounted on a panel via compression
    Dimensions G77xY35xD61 mm
    Weight Approximately 190g (with packaging)
    Enclosure Materials Self-extinguishing plastics used
