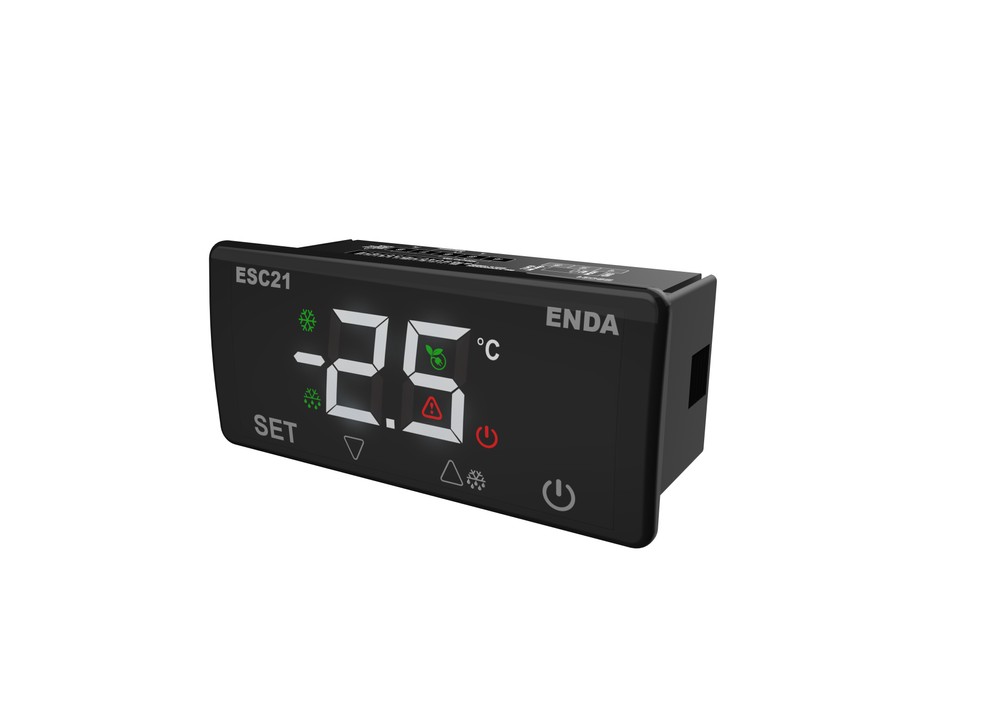

    ESC21

    77x33x41 mm Sized, Touch Screen, 1 NTC Input, 1 DIN Input, 1 Relay Output Defrost Control Device

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ESC21

    77x33x41mm size, touch screen

    1 relay output for cooling or heating control

    2 inputs: 1 NTC and 1 digital input

    Ability to use the digital input as a 2nd NTC input

    Offset addition feature for NTC probe inputs

    Control compressor, energy saving, or door alarm via digital input

    Delay and minimum operating time settings for compressor protection

    Defrost duration and interval settings

    Defrost feature dependent on time or evaporator temperature, or manual operation

    Selectable smart defrost option

    Ability to adjust lower and upper limits of set values

    Alarm lower, upper limit, and delay settings

    Enable energy-saving mode via digital input

    Ability to display temperature in °F or °C

    CE marked according to EN standards

    Ambient/Storage Temperature 0 ... 50 °C / -25 ... 70 °C (Without frost)
    Relative Humidity Works in environments with up to 80% humidity at 31°C, which linearly decreases to 50% humidity at 40°C
    Protection Class Front Panel: IP65, Rear Panel: IP20 according to EN 60529
    Height Up to 2000m
    Power Supply Voltage 230V AC +10% -20%, 50/60Hz
    Power Consumption Max 0.5VA
    Connection Socket terminal with 2.5mm²
    Line Resistance Max 100ohm
    Information Protection EEPROM (at least 10 years)
    Measurement Range NTC Temperature Sensor: -60 ... +99°C (-76 ... +302.0°F) with ±1% (of the full scale) ±1 digit accuracy, EN60751
    Time Accuracy ±1s
    Display 2 digits, 37mm 7-segment white LED, 7 icons
    EMC EN 61326-1: 2013 (Performance criteria B met for EN 61000-4-3 standard)
    Safety Requirements EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
    Compressor Relay Output For Resistive Load: No 250V AC 16A, NC 250V AC 16A, For Inductive Load: 1/2hp 240V AC
    Relay Life No load: 30,000,000 switching cycles; 250V AC 16A resistive load: 100,000 switching cycles
    Control Type Single set-point, door and alarm control
    Control Method On-Off control
    A/D Converter 12-bit sensitivity, Sampling time 100ms
    Hysteresis Adjustable between 0.1 ... 20.0 °C
    Mounting Method Mounted by clamping to the panel (according to DIN 43 700)
    Dimensions G77xY33xD41 mm
    Weight Approximately 90g (with packaging)
    Enclosure Material Self-extinguishing plastics used
