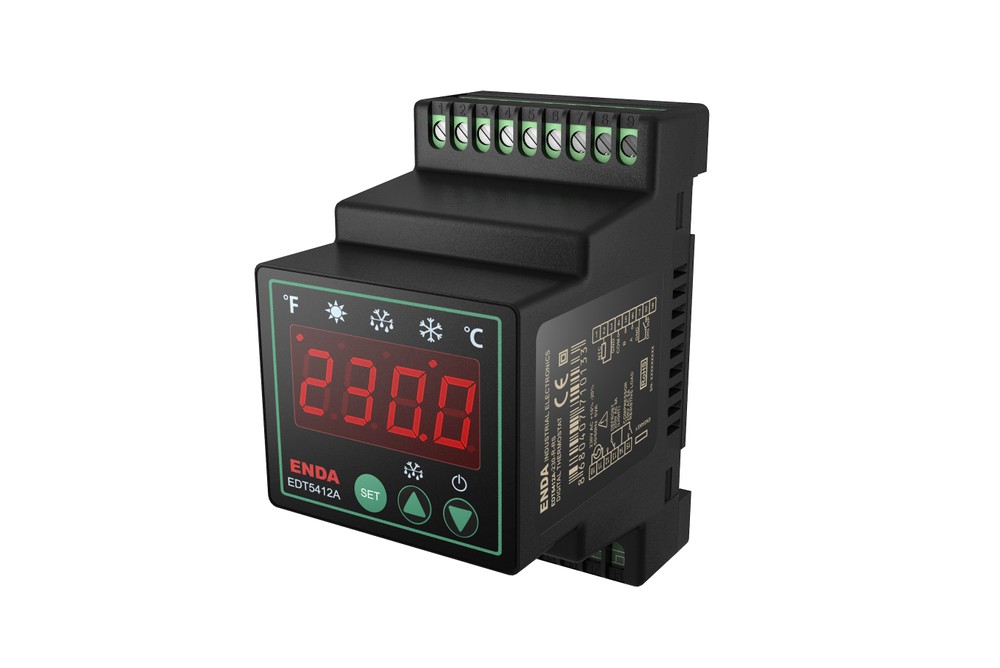

    EDT5412A

    54x94 mm Sized, Rail-Mounted, NTC Input, DIN Input, 2 Relay Output Defrost Controller

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EDT5412A

    On-Off control

    Selectable relay output for cooling or heating control

    Selectable relay output for defrost or lighting control

    Single NTC probe input

    Offset adjustment available for NTC probe input

    Compressor protection parameters can be entered

    Compressor operation, stop, or periodic operation can be adjusted in case of probe failure

    Lower and upper limits of the setpoint can be adjusted

    Defrost time and interval are adjustable

    6 different selectable audible warning options

    Lower and upper alarm limits dependent on the setpoint can be adjusted

    Temperature can be displayed in °F or °C

    External alarm capability via digital input

    Parameter transfer to the device via ENDAKEY without supplying power

    Communication via RS-485 ModBus RTU protocol

    Energy-saving defrost capability with real-time clock and lighting option based on selection

    Defrost or lighting start feature via digital input (based on selection)

    Manual defrost or lighting feature (based on selection)

    CE marked according to EN standards

    Ambient/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Up to 80% until 31 °C, then linearly decreasing to 50% at 40 °C
    Protection Class According to EN 60529 standard: Front Panel: IP65, Rear Panel: IP20
    Height Maximum 2000m
    Power Supply Voltage 230V AC +10% -20% 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Screw terminal
    Scale Temperature: -40...125 °C
    Humidity: 0.0%...100.0%
    Accuracy ±2 %RH (for 20...80 %RH range)
    ±4 %RH (for 0...100 %RH range)
    ±0.5 °C (for 20...40 °C range)
    ±1 °C (for 0...70 °C range)
    ±2 °C (for -40...125 °C range)
    Measurement Time 7s for 63% humidity change (at 25 °C and air speed 1m/s)
    20s for 63% temperature change (at 25 °C and air speed 1m/s)
    Analog Outputs For humidity and temperature: 0-20mA DC or 0-10V DC (selectable on the device)
    Mounting Type Wall mounted
    Dimensions B137xE58xY35 mm
    Immersion Depth 50 mm
    Weight Approximately 125g (with packaging)
    Enclosure Material Self-extinguishing plastics used
