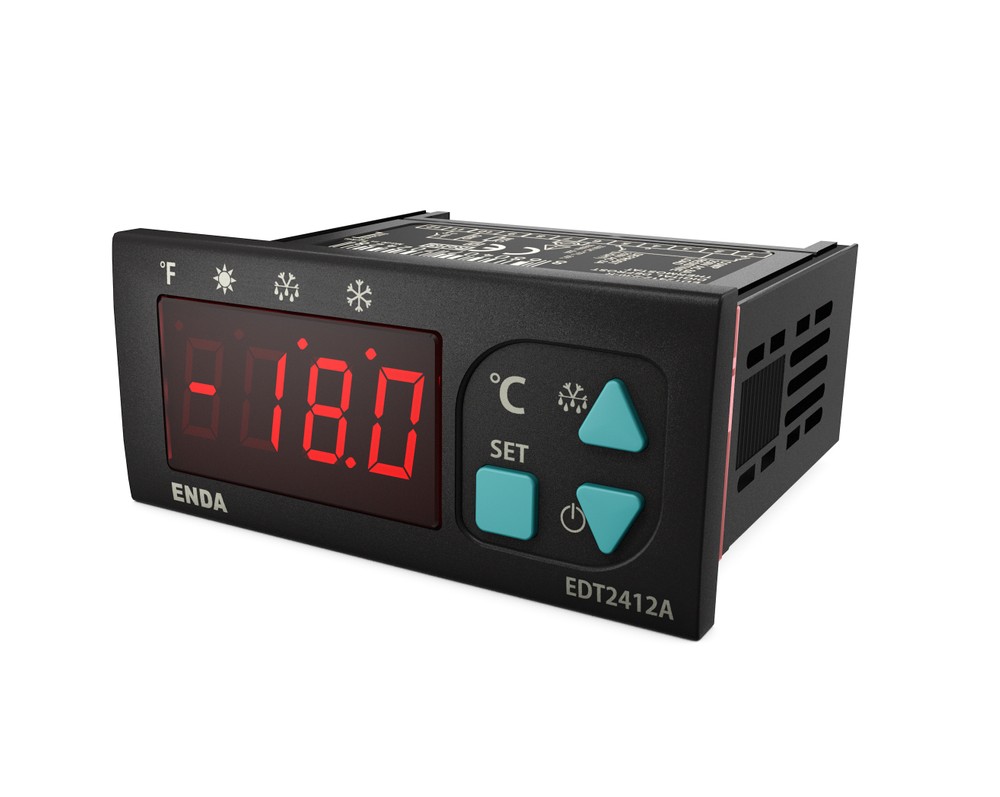

    EDT2412A

    77x35 mm Sized, NTC Input, DIN Input, 2 Relay Output Defrost Control Device

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EDT2412A

    On-Off control

    Selectable relay output for defrost or lighting

    Single NTC probe input

    Offset adjustment available for single NTC probe input

    Compressor protection parameters can be set

    Compressor operation, stop, or periodic operation can be adjusted in case of probe failure

    Adjustable lower and upper limits for set values

    Selectable smart defrost feature

    Adjustable defrost time and interval

    Six different options for audible alarm

    Adjustable lower and upper alarm limits dependent on set value

    Temperature can be displayed in °F or °C

    External alarm, defrost, and lighting output can be activated via digital input

    Ability to transfer parameters via ENDAKEY without powering the device

    RS-485 ModBus RTU communication protocol

    CE certified according to EN standards

    Ambient/Storage Temperature 0 ... 50 °C / -25 ... 70 °C
    Relative Humidity Works in environments with up to 80% humidity at 31 °C, decreasing linearly to 50% at 40 °C
    Protection Class According to EN 60529 standard: Front panel: IP62, Rear panel: IP20
    Altitude Up to 2000m
    Supply Voltage 230V AC +10% -20% 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Screw terminal
    Scale -60.0 ... 150.0 °C
    Sensitivity 0.1 °C (Selectable as 0.1 °C or 1 °C)
    Accuracy ±1 °C
    Time Accuracy ±1%
    Compressor Relay Output 8A model: 250V AC, 8A resistive load, NO+NC
    1/2hp 240V AC inductive load
    20A model: 277V AC, 20A resistive load, NO
    2hp 277V AC inductive load
    Defrost/Lighting Relay Output 8A model: 250V AC, 8A resistive load, NO+NC 1/2hp 240V AC inductive load
    Compressor Relay Life 8A model: No load 30,000,000 operations; 250V AC, 8A resistive load 100,000 operations
    20A model: No load 10,000,000 operations; 277V AC, 20A (for resistive load) 100,000 operations
    Defrost/Lighting Relay Life EDT2412A-X-R: No load 30,000,000 operations; 250V AC, 8A resistive load 100,000 operations
    Control Type Single set-value control and lighting control
    Control Method On-Off control
    Hysteresis Adjustable between 1...20.0 °C
    Mounting Type Mounted by clamping to the panel
    Dimensions 77x35x61 mm
    Weight Approximately 190g (with packaging)
    Enclosure Material Self-extinguishing plastics used
