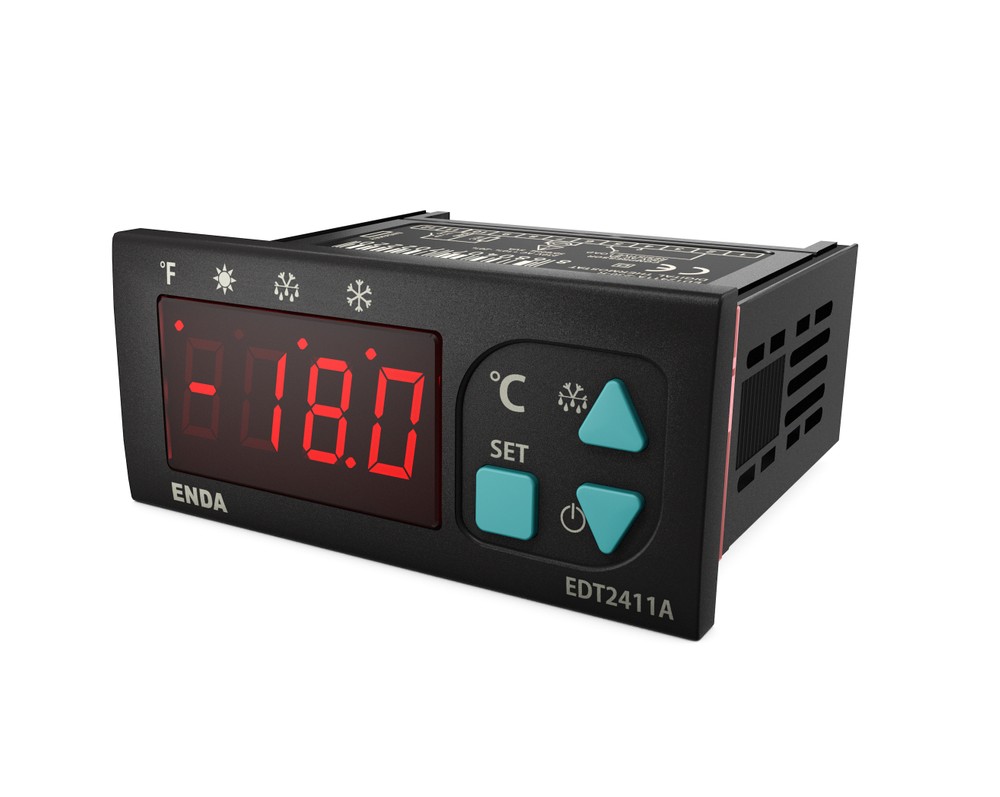

    EDT2411A

    77x35 mm Sized Defrost Control Device with NTC Input, DIN Input, and Relay Output

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EDT2411A

    On-Off control

    Relay output for selectable cooling or heating control

    Single NTC probe input

    Offset adjustment available for NTC probe input

    Compressor protection parameters can be set

    Compressor operation can be set to run, stop, or work periodically in case of probe failures

    Lower and upper limits of the set value can be adjusted

    Selectable smart defrost feature

    Defrost duration and interval can be adjusted

    6 different options for audible alerts

    Lower and upper alarm limits dependent on the set value can be adjusted

    Temperature display in °F or °C

    External alarm capability via digital input

    Defrost initiation via digital input

    Parameter transfer capability via ENDAKEY without powering the device

    RS-485 ModBus RTU communication protocol

    CE marked according to EN standards

    Ambient/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Operates at 80% up to 31 °C, then linearly decreases to 50% at 40 °C
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Up to 2000m
    Supply Voltage 230V AC +10% -20% 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Screw terminals
    Scale -60.0...150.0 °C
    Sensitivity 0.1 °C (Selectable as 0.1 °C or 1 °C)
    Accuracy ±1 °C
    Time Accuracy ±1%
    Relay Output 8A model: 250V AC, 8A (for resistive load), NO+NC
    1/2hp 240V AC (for inductive load)
    20A model: Relay: 277V AC, 20A (for resistive load), NO
    2hp 250V AC (for inductive load)
    Relay Life 8A model: 30,000,000 operations without load; 100,000 operations at 250V AC, 8A resistive load
    20A model: 10,000,000 operations without load; 100,000 operations at 277V AC, 20A resistive load
    Control Type Single set-value control
    Control Method On-Off control
    Hysteresis Adjustable between 1...20.0 °C
    Mounting Type Panel mounted by clamping
    Dimensions 77x35x61 mm
    Weight Approximately 190g (with packaging)
    Enclosure Material Self-extinguishing plastics used
