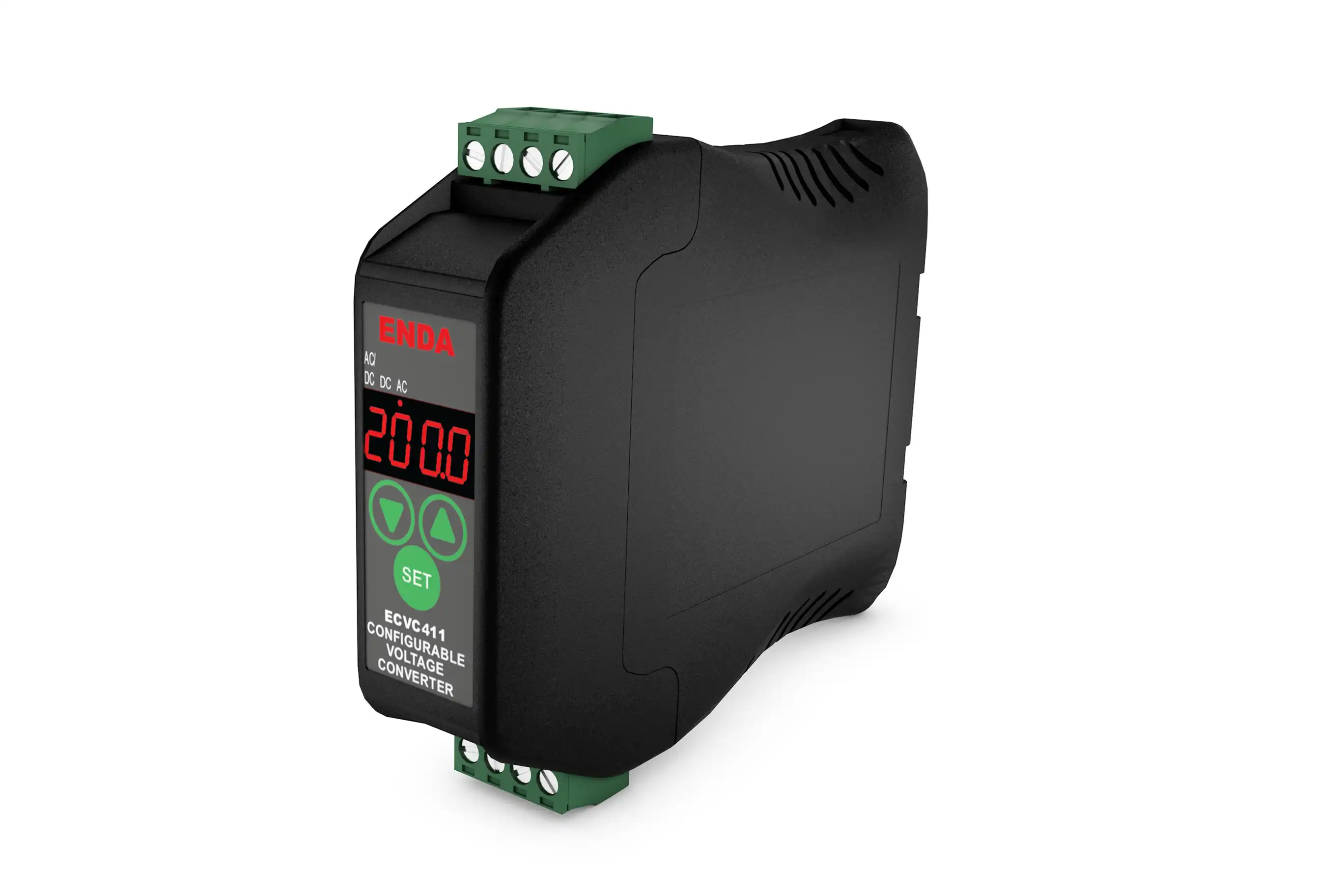

    ECVC411

    0-100V AC/DC and 0-500V AC/DC Input Voltage Converter

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ECVC411

    4-digit digital display

    Easily adjustable from the front panel buttons

    0-100V AC/DC and 0-500V AC/DC input

    Selectable AC, DC, or True RMS measurement feature

    Programmable scale from 1V to 9999V

    Selectable 0-20mA, 4-20mA, 0-10V, or 1-5V analog output

    Three-way isolation between input, output, and power supply

    Communication with isolated ModBus RTU protocol

    Key lock feature

    Socket terminal connection

    CE marked according to EN standards

    Operating/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Up to 80% at 31 °C, decreases linearly to 50% at 40 °C (without condensation)
    Protection Class According to EN 60529 standard, Front panel: IP20
    Altitude Up to 2000m
    Input Type itYP=u500 for 0...500V AC/DC input, used for measurement with 0...500V AC/DC scale
    itYP=u100 for 0...100V AC/DC input, used for measurement with 0...100V AC/DC scale
    itYP=utr.r for 0-100V AC/DC input, used for measurement with voltage transformer with scale defined by utr.r parameter
    Scale AC and RMS:
    itYP=u500 for 0...500V AC/DC
    itYP=u100 for 0...100V AC
    itYP=utr.r for -999...9999V AC/DC (scale determined by utr.r parameter. For example: utr.r=1000 results in 0...1000V scale)
    DC:
    itYP=u500 for -500...500V DC
    itYP=u100 for -100...100V DC
    itYP=utr.r for -999...9999V DC (scale determined by utr.r parameter. For example: utr.r=1000 results in -999...1000V scale)
    Sensitivity 0.01V
    Accuracy AC: ±%1 of full scale (for square wave ±%2)
    DC: ±%1 of full scale
    RMS: ±%1 of full scale (for square wave ±%2)
    Input Range For 0-500V AC/DC input, voltages above ±1250V DC will cause damage to the device
    For 0-100V AC/DC input, voltages above ±250V DC will cause damage to the device
    Input Impedance For 0-500V input, 880kohm
    For 0-100V input, 177kohm
    Frequency Range DC, 20Hz - 70Hz
    Supply Voltage ECVC411-UV: 90-250V AC, 50/60Hz
    ECVC411-LV: 10-30V DC/8-24V AC, 50/60Hz
    Power Consumption 7VA
    Outputs mA: 0-20mA DC or 4-20mA DC, ±0.5% (maximum load resistance 500ohm)
    V: 0-10V DC or 1-5V DC, max 10mA, ±0.5% (short-circuit protection available)
    Connection 2.5mm² socket terminal
    Enclosure Type Mounted on TH 35 type rail
    Dimensions G25xY97xD115 mm
    Weight Approximately 150g (with packaging)
    Enclosure Materials Self-extinguishing plastics used
