    ECTC-TR

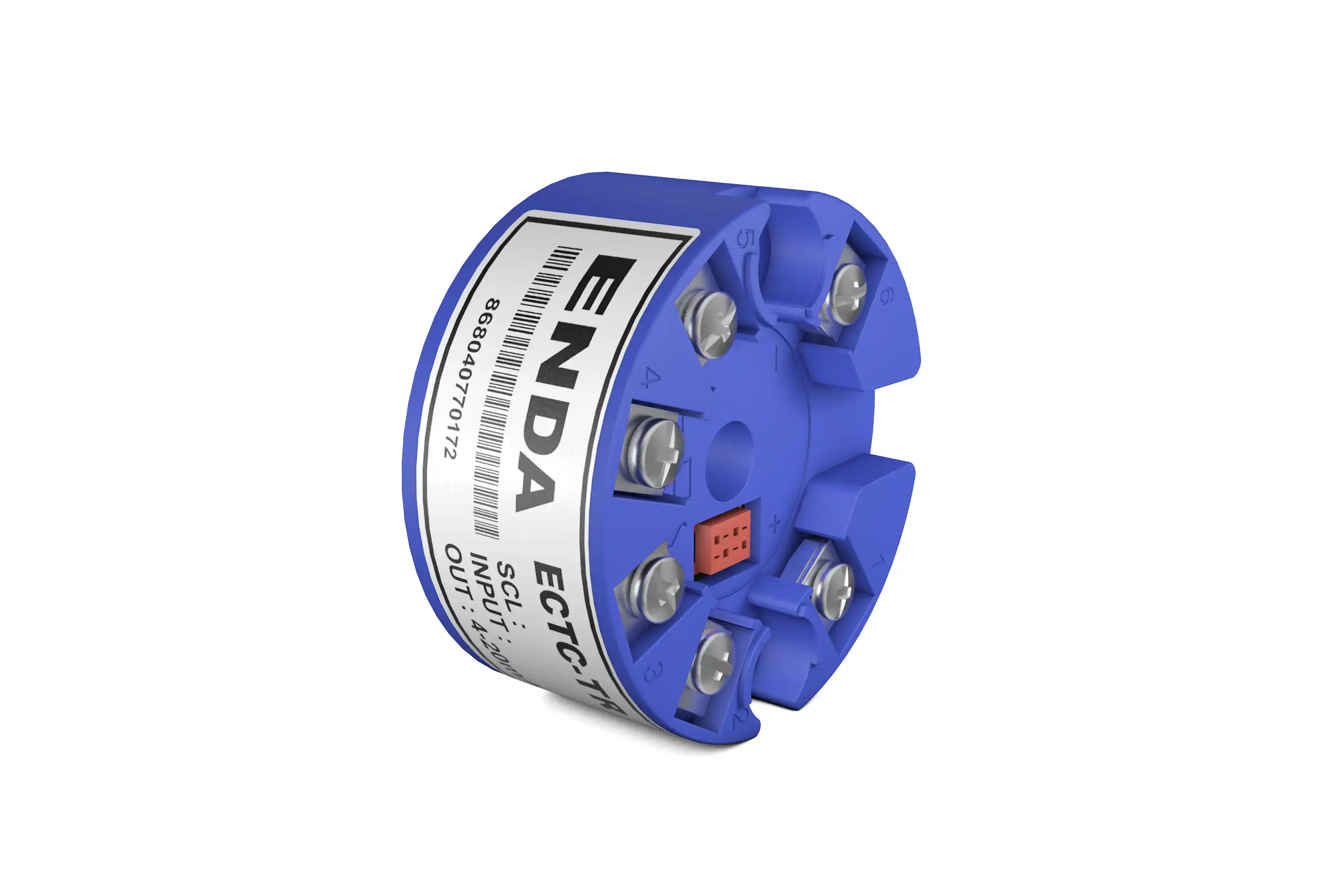

    Configurable Temperature Converter with TC, RTD, and NTC Inputs

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ECTC-TR

    Wide supply voltage range

    Wide operating temperature range

    16-bit measurement and output resolution

    High measurement and output accuracy

    Mounts to DIN form B sensor head

    Protection against reverse polarity

    1500V Galvanic isolation in the ECTC-TR-I model

    Economical price for the ECTC-TR model

    Economical and practical USB configuration adapter

    Configuration via USB without requiring a power supply

    Easy and free Windows configuration software CoNi01

    Selectable input signal (Pt-100, 10 different T/C)

    Adjustable input scale

    Selectable output direction (4-20mA or 20-4mA)

    Selectable sensor Fault-Output level

    Adjustable response time (Filter time constant)

    Operating Temperature -45...85 ºC
    Protection Class IP00
    Supply Voltage For ECTC-TR: 8...36V DC
    For ECTC-TR-I: 10...36V DC
    Output 4-20mA, 20-4mA
    Line Resistance Thermocouple: 100Mohm
    Resolution 16 bit
    Sampling Frequency 100ms
    Thermal Drift < ±100ppm / ºC
    Galvanic Isolation ECTC-TR-I: 1500V DC galvanic isolation
    ECTC-TR: Non-isolated
    Memory 100 Years, 100,000 Renewals
    Response Time 0.2...120s
    Inputs Pt-100 resistance thermometer -200...840 °C
    J thermocouple -200...1120 °C
    K thermocouple -200...1360 °C
    L thermocouple -200...900 °C
    T thermocouple -200...400 °C
    S thermocouple -40...1760 °C
    R thermocouple -40...1760 °C
    B thermocouple 60...1820 °C
    E thermocouple -200...840 °C
    N thermocouple -200...1300 °C
    U thermocouple -200...600 °C
    Transmission Error < ±%0.2
    Dimensions Diameter: 44 mm, Height: 20 mm
    Weight 40g
