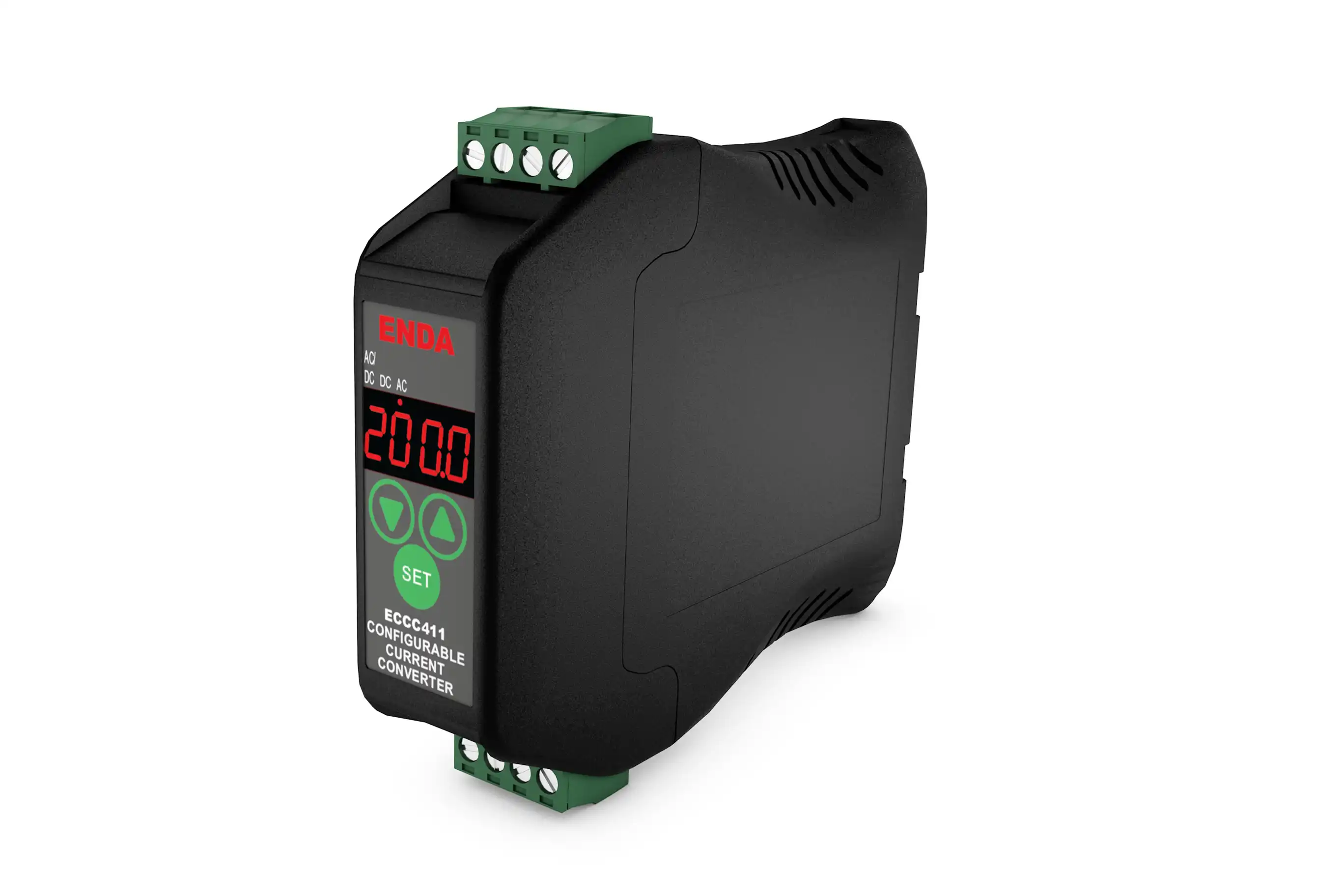

    ECCC411

    Selectable Current Transformer or Shunt Input, Programmable Current Converter

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ECCC411

    4-digit digital display

    Easily adjustable from the front panel buttons

    5A/60mV, CT20/30 current transformer/60mV or 1A input

    Selectable AC, DC, or True RMS measurement capability

    Programmable scale from 5A to 9999A

    Selectable 0-20mA, 4-20mA, 0-10V, or 1-5V analog output

    Three-way isolation between input, output, and power supply

    Communication via isolated ModBus RTU protocol

    Button lock feature

    Rail mounted

    Socket terminal connection

    CE marked according to EN standards

    Operating/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Works up to 80% until 31°C, then decreases linearly to 50% at 40°C
    Protection Class According to EN 60529 standard: IP20
    Height Maximum 2000m
    Input Type ECCC-xV for 5A or 60mV
    ECCC-CT-xV for CT20/CT30 current transformer or 60mV
    ECCC-X1-xV for 1A
    Scale AC and RMS:
    Input type 5A/60mV: 0...9999A (determined by c.tr.r parameter)
    Example: For c.tr.r=5, scale 0...5A
    Input type CT20/30 or 60mV:
    If itYP=CT20, scale 0...300A (determined by tUrn parameter)
    Example: For tUrn=1, scale 0...300A
    If itYP=CT30, scale 0...120A (determined by tUrn parameter)
    Example: For tUrn=1, scale 0...120A
    Input type 1A: 0...9999A (determined by c.tr.r parameter)
    Example: For c.tr.r=1, scale 0...1A
    DC:
    Input type 5A/60mV: -999...9999A (determined by c.tr.r parameter)
    Example: For c.tr.r=5, scale -5...5A
    Input type CT20/30 or 60mV:
    DC measurement is not possible with current transformers
    If itYP=SHnt, scale -999...9999A (determined by c.tr.r parameter)
    Example: For c.tr.r=5, scale -5...5A
    Input type 1A: -999...9999A (determined by c.tr.r parameter)
    Example: For c.tr.r=1, scale -1...1A
    Sensitivity 0.002A x c.tr.r (For example, for c.tr.r=5, sensitivity is 0.01A)
    Accuracy AC: ±1% (of full scale) (±2% for square wave)
    DC: ±1% (of full scale)
    RMS: ±1% (of full scale) (±2% for square wave)
    Input Range If input type is 60mV: -60mV...60mV (device damage occurs for voltages over 50V)
    If input type is 1A: -1A...1A (device damage occurs for currents above 2A)
    If input type is 5A: -5A...5A (device damage occurs for currents above 10A)
    If input type is CT20/30: 0...150mA
    Input Impedance For 60mV input: 20kohm
    For 1A input: 90mohm
    For 5A input: 12mohm
    For CT20/CT30 input: 600mohm
    Frequency Range DC, 20Hz - 70Hz
    Supply Voltage For ECCC-UV: 90-250V AC, 50/60Hz
    For ECCC-LV: 10-30V DC/8-24V AC, 50/60Hz
    Power Consumption 7VA
    Outputs mA: 0-20mA DC or 4-20mA DC, ±0.5% (maximum load resistance 500ohm)
    V: 0-10V DC or 1-5V DC, maximum 10mA, ±0.5% (with short circuit protection)
    Connection Socket terminal
    Housing Type Mounts on TH 35 rail
    Dimensions W25xH97xD115 mm
    Weight Approximately 150g (with packaging)
    Housing Materials Self-extinguishing plastics used
