    ECUC411

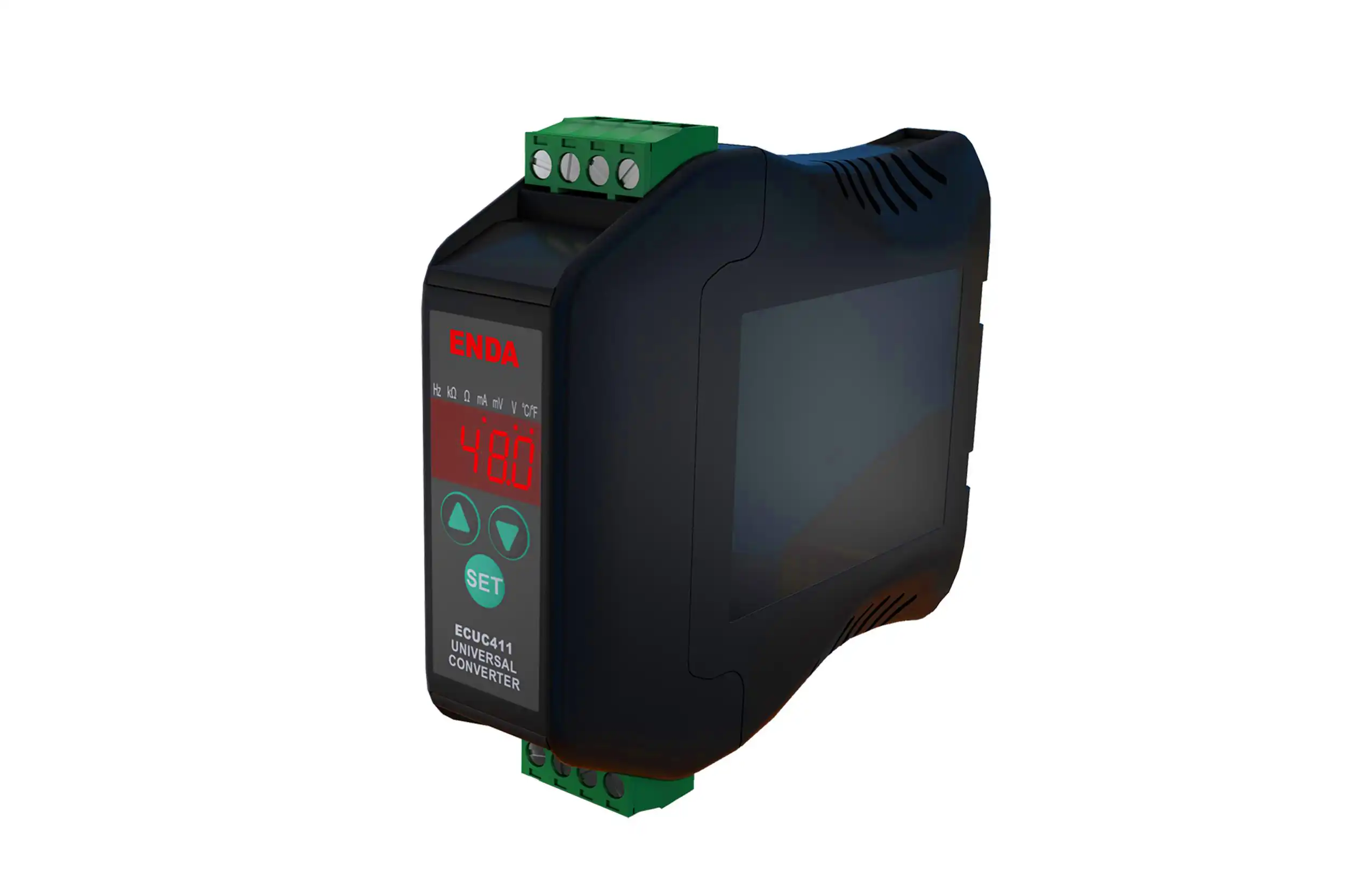

    Selectable TC, RTD, NTC, Ω, kΩ, mA, V, mV, or Frequency Input Configurable Universal Converter.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

    ECUC411

    4-digit digital display

    Easy adjustment via the buttons on the front panel

    Selectable TC, RTD, NTC, Ω, kΩ, mA, V, mV, or frequency inputs

    Ambient temperature compensation

    Offset feature for the input

    Selectable mA, V, or frequency output

    24V DC sensor power supply

    Three-way isolation between input, output, and power supply

    Communication via isolated ModBus RTU protocol

    Key lock feature

    Rail-mounted

    Socket terminal connection

    CE marked according to EN standards

    Operating/Storage Temperature 0...50 °C / -25...70 °C
    Relative Humidity Up to 80% at 31°C, then linearly decreasing to 50% at 40°C
    Protection Class IP20 according to EN 60529 standard
    Altitude Maximum 2000m
    Input Type / Scale B (Pt30Rh-Pt6Rh) thermocouple 200...1800°C / 392...3272°F
    E (NiCr-Con) thermocouple -100...900°C / -148...1652°F
    J (Fe-Con) thermocouple -100...900°C / -148...1652°F
    K (NiCr-Ni) thermocouple -100...1300°C / -148...2372°F
    L (Fe-Con) thermocouple -100...900°C / -148...1652°F
    N (NiCrSi-NiSi) thermocouple -200...1300°C / -328...2372°F
    R (Pt13Rh-Pt) thermocouple 0...1700°C / 32...3092°F
    S (Pt10Rh-Pt) thermocouple 0...1700°C / 32...3092°F
    T (Cu-Con) thermocouple -250...300°C / -418...572°F
    U (Cu-Con) thermocouple -200...400°C / -328...752°F
    Pt-100 resistance thermometer -200...850°C / -328...1562°F
    NTC resistance thermometer -60...150°C / -76...302°F
    0-20mA, 4-20mA, 0-150mV, 0-5V, 1-5V, 0-10V, 0-550Ω, 0-10kΩ -999...9999 / -99,9...999,9 / -9,99...99,99 / -9,99...9,999
    0-10kHz 0-9999
    Accuracy B (Pt30Rh-Pt6Rh) thermocouple ±0.1 and ±2°C (3.6°F)
    E (NiCr-Con) thermocouple ±0.1 and ±0.5°C (1°F)
    J (Fe-Con) thermocouple ±0.1 and ±0.5°C (1°F)
    K (NiCr-Ni) thermocouple ±0.1 and ±0.5°C (1°F)
    L (Fe-Con) thermocouple ±0.1 and ±1.5°C (2.7°F)
    N (NiCrSi-NiSi) thermocouple ±0.1 and ±0.5°C (1°F)
    R (Pt13Rh-Pt) thermocouple ±0.1 and ±1°C (1.8°F)
    S (Pt10Rh-Pt) thermocouple ±0.1 and ±1°C (1.8°F)
    T (Cu-Con) thermocouple ±0.1 and ±0.5°C (1°F)
    U (Cu-Con) thermocouple ±0.1 and ±0.5°C (1°F)
    Pt-100 resistance thermometer ±0.1 and ±0.5°C (1°F)
    NTC resistance thermometer ±0.1 and ±0.5°C (1°F)
    0-20mA, 4-20mA ±0.1 and ±1 digit
    0-150mV ±0.1 and ±20µV
    0-5V, 1-5V, 0-10V ±0.1 and ±1 digit
    0-550Ω ±0.2 and ±0.1Ω
    0-10kΩ ±0.5 and ±10Ω
    0-10kHz ±0.5 and ±1 digit
    Input Impedance B (Pt30Rh-Pt6Rh) thermocouple: Ri > 3kΩ
    E (NiCr-Con) thermocouple: Ri > 3kΩ
    J (Fe-Con) thermocouple: Ri > 3kΩ
    K (NiCr-Ni) thermocouple: Ri > 3kΩ
    L (Fe-Con) thermocouple: Ri > 3kΩ
    N (NiCrSi-NiSi) thermocouple: Ri > 3kΩ
    R (Pt13Rh-Pt) thermocouple: Ri > 3kΩ
    S (Pt10Rh-Pt) thermocouple: Ri > 3kΩ
    T (Cu-Con) thermocouple: Ri > 3kΩ
    U (Cu-Con) thermocouple: Ri > 3kΩ
    Pt-100 resistance thermometer: Ri > 100kΩ
    NTC resistance thermometer: Ri > 100kΩ
    0-20mA, 4-20mA: Ri > 50Ω
    0-150mV: Ri > 3kΩ
    0-5V, 1-5V, 0-10V: Ri > 3kΩ
    0-550Ω, 0-10kΩ: Ri > 100kΩ
    0-10kHz: Ri > 10kΩ
    Power Supply ECUC411-UV: 60-250V AC, 50/60HZ / 85-300V DC
    ECUC411-LV: 10-30V DC/8-24V AC, 50/60Hz
    Power Consumption Maximum 7VA
    Line Resistance For thermocouples: maximum 100Ω, for 3-wire PT100: maximum 20Ω
    A/D Converter 16 bit
    D/A Converter 13 bit
    Sensor Power Supply 24V DC, maximum 30mA, unregulated, short-circuit protected
    Connection 2.5mm² socket terminal
    EMC EN 61326-1 - 2013
    Safety Requirements EN 61010-1 - 2010 (Pollution degree 2, overvoltage category II)
    Outputs mA: 0-20mA DC or 4-20mA DC, ±0.5% (maximum load resistance 500Ω)
    V: 0-10V DC, 0-5V DC or 1-5V DC, maximum 10mA, ±0.5% (short-circuit protection included)
    Frequency: 0-50kHz, ±0.5%, 12V pulse
    Enclosure Type TH 35 type rail mount
    Dimensions W25xH97xD115 mm
    Weight Approximately 150g (with packaging)
    Enclosure Material Self-extinguishing plastics used
