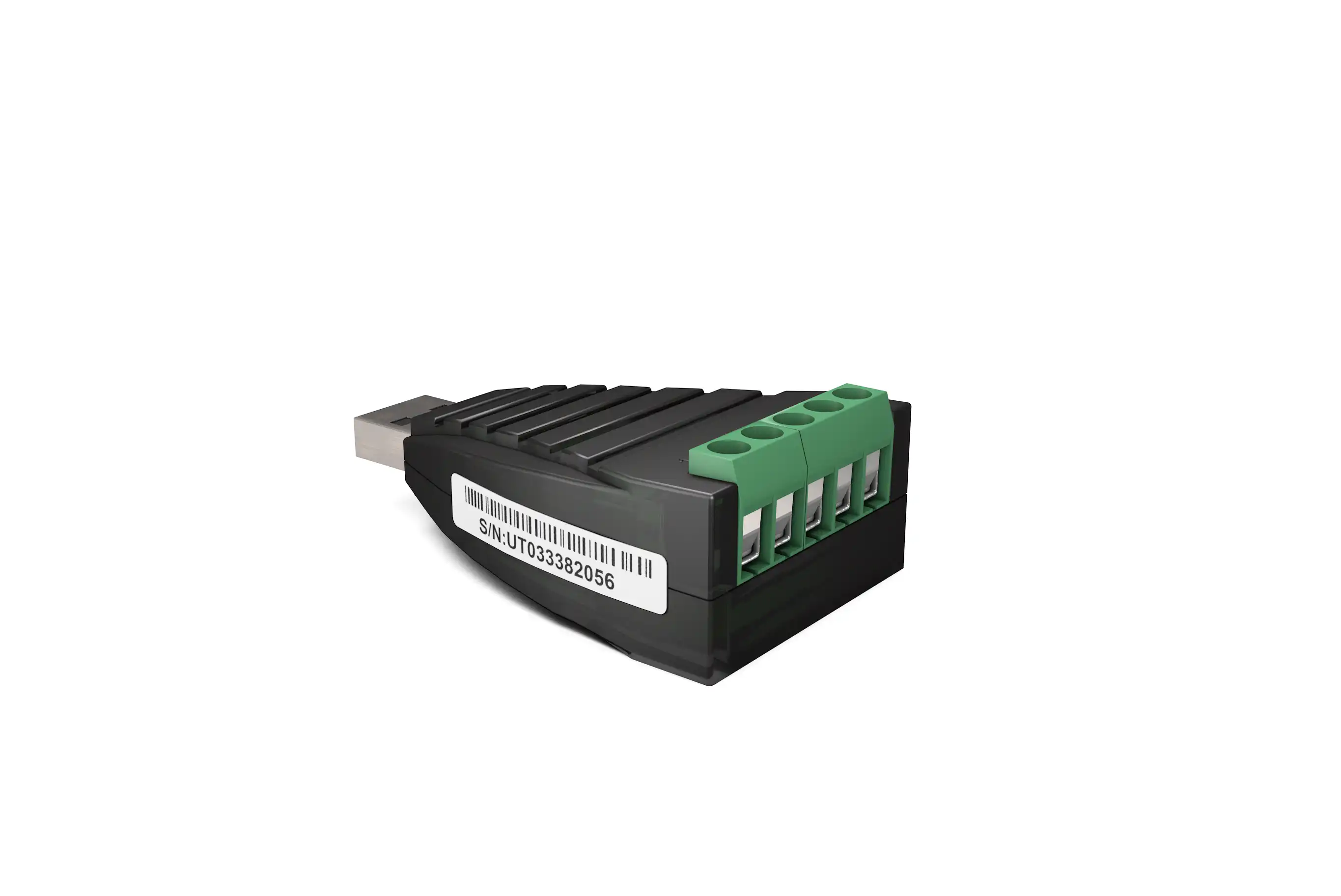

    ECON-485

    USB / RS 485 Converter

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    ECON-485

    Operates without the need for an external power supply or any special settings.

    Provides 2500Vrms isolation between ports.

    The RS-485 - RS-422 side is protected against high voltages and electrostatic discharge with TVS (Transient Voltage Suppressor) technology.

    Data transmission continues uninterrupted with TVS technology.

    The direction of data flow is automatically detected.

    Point-to-point and multipoint communication is supported.

    Supports wide communication speeds from 300 to 921.6 kbps.

    LEDs are available to indicate the active status of the device and the data flow.

    Supports all existing communication software.

    With plug-and-play functionality, it can easily connect to all ENDA Modbus communication devices from a PC.

    Operating/Storage Temperature -40...85 ºC / -30...100 ºC
    Relative Humidity Up to 50% at 40 ºC, increasing as temperature decreases, can work at 80% humidity at 20 ºC (no condensation)
    Protection Class Front panel: IP65, Rear panel: IP20 according to EN 60529 standard
    Altitude Up to 2000m
    Supply Voltage 90-250V AC, 50/60Hz, 600VA
    Digital Input Can stop the load output with NO/NC contact or NO/NC sensor selectable from the program. Can be used with 12V DC output on the device or external 10-30V DC voltage.
    Isolation Voltage 2500 Vrms for 1 minute between input and output terminals
    Connection Socket terminal block
    Load Current, AC51/25 °C (Arms) 4A AC or 15A AC
    Load Voltage (Vrms) 110V AC or 220V AC, selectable via jumper (JP1) inside the device
    Vibration Frequency (Hz) 50/60Hz or 100/120Hz, selectable via jumper (JP1) inside the device
    Overload Current t=1s/25 °C (Arms) 150
    Non-repeating Surge Current/25°C (Arms) 400
    Voltage Drop in Transmission (Vrms) 1.6
    Leakage Current (mArms) 5
    Fuse I²t Value t=10ms (A²s) 880
    Frequency (Hz) 50-60
    Power Factor (Cosφ) >0.75
    Minimum Operating Current (mArms) 160
    Control Type Phase angle is controlled by the adjustment knob or 0-10V DC analog input signal
    Mounting Type Wall-mountable type
    Dimensions G80xY160xD55 mm
    Weight Approximately 350g (with packaging)
    Enclosure Material Self-extinguishing plastics used
