    VMM-K Bridge Type CNC Video Measuring Machine

    The VMM-K Bridge Type CNC Video Measuring Machine offers a resolution of 0.0005 mm (0.5μm). It features a maximum glass stage size of 900 x 1588 mm. Equipped with a 1/2” color CCD camera and a zoom lens.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

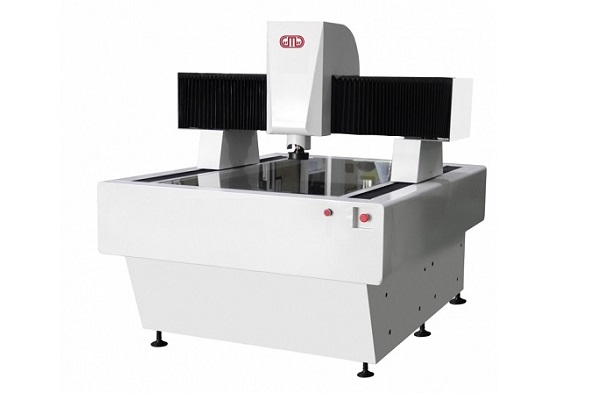

    VMM-K BRIDGE TYPE CNC VIDEO MEASURING MACHINE

    The VMM-K Bridge Type CNC Video Measuring Machine is a type of measurement device that uses CCD imaging to magnify the workpiece image into the software system and is used for various measurement functions in advanced software.

    It performs tasks using various measurement functions in a powerful software system for inspecting the dimensions, positions, and shapes of the measured part through microscopy and quality control processes.

    It is widely and effectively used for measurement services in various industries such as electronics, instrumentation, and metering, across different levels or workshop inspection stations.

    It is functionally applied in areas such as cutting tools and gripping devices, precision machine components, fine hardware parts, electronic components, plastic and rubber products, semiconductor components, punching parts, the textile industry, aerospace, etc., and also in colleges, universities, research institutes, mold tooling, automotive, and mechanical assembly industries.

    High-resolution 1/2" color CCD camera with a zoom lens for sharp imaging,

    USB interface linear encoder connection with professional measurement software,

    Optimal performance with CNC software that has MS Windows-based analysis capabilities,

    High positioning accuracy in X, Y, and Z axes using servo motors,

    High-quality granite base,

    Programmable LED lighting,

    Automatic geometric element recognition,

    Convenient and easy operation via mouse and joystick (optional),

    Automatic multi-point measurement capability,

    Ability to use different measurement methods depending on the part's condition,

    Easy and efficient measurement of complex parts,

    Programmable CNC operation,

    Ability to define coordinate systems on the part and perform multiple CNC measurements using single parts or fixtures,

    Auto-focus feature on the Z-axis for depth detection,

    Ability to assign individual tolerances for each measurement element,

    SPC support within the software for generating tables and histograms, as well as reporting,

    Compatibility with CAD-CAM software.

    Resolution 0.0005 mm (0.5μm)
    Power Supply AC 240V 60Hz. Power: 1800W
    Weight 1500 kg, 1900 kg
    Glass Stage Size (mm) 700x1190 mm, 900x1588 mm
    Z-Axis Travel (mm) 200 mm
    Measurement Software 2.5D Series
    Video System Zoom Lens: Magnification of Field Lens: 0.7x - 4.5x, CCD Camera: 1/2" Color CCD Camera, Total Magnifications: 23.5x - 148x
    Accuracy ( 3+L / 200 ) μm; L: Measurement length (mm)
    Lighting System Adjustable LED
    X/Y Axis Travel 600x600 mm, 800x1000 mm
