    VMM5040M Manual Video Measuring Machine

    VMM5040M Manual Video Measuring Machines are equipped with servo motor-driven Z-axis movement. They offer a resolution of 0.005 mm (5μm) and feature a maximum glass table size of 570×470 mm. The system includes a 1/2” Color CCD Camera.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

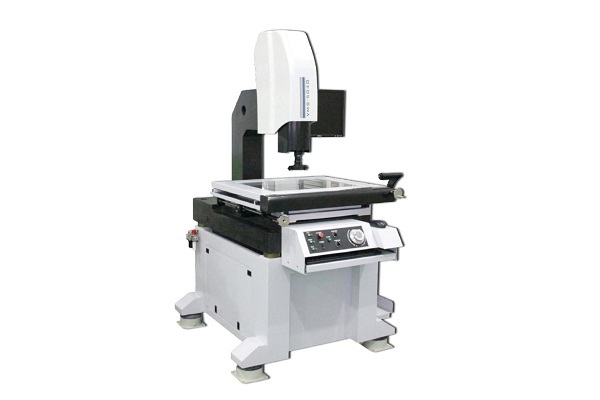

    VMM5040M MANUAL VIDEO MEASURING MACHINE

    The VMM5040M Manual Video Measuring Machine is a 2D measurement system equipped with a 1/2" Color CCD Camera.

    It can communicate with a computer via RS232 interface.

    By connecting to a PC and running the software, users can manage and export graphics in BMP or DWG formats.

    One-touch edge detection.

    Resolution 5 µm
    Power Supply 110Vac - 220Vac 50/60Hz.
    Weight 800 kg
    Table Dimensions 786x636 mm
    Glass Table Size (mm) 570x470 mm
    Z Axis Travel (mm) 200 mm
    Measurement Software 2.5D Series
    Video System CCD Camera: 1/2" Color CCD Camera, Object View: 11.1mm - 1.7mm, 0.7~4.5× zoom lens. Total magnification: 20～128× (19.5-inch display). Resolution: 1440×900
    Lighting System Adjustable LED
    X/Y Axis Travel 600x600 mm, 800x1000 mm
