    VMM-5040C CNC Video Measuring Machine

    VMM-5040C CNC Video Measuring Machines offer a resolution of 0.0005 mm (0.5μm). They feature a maximum glass stage size of 450x350 mm. Equipped with a 1/2” color CCD camera and a zoom lens.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

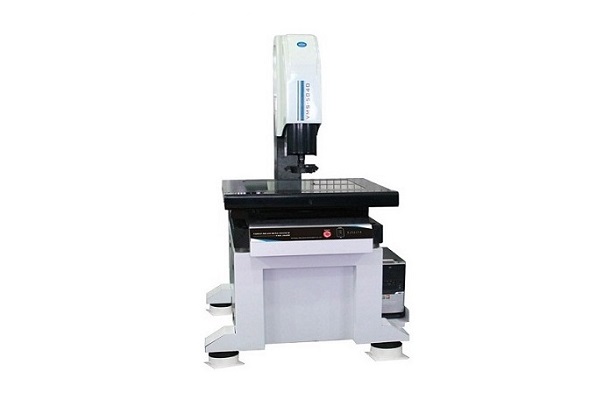

    VMM-5040C CNC VIDEO MEASURING MACHINE

    The VMM-5040C CNC Measuring Machine is a type of measuring instrument that utilizes CCD imaging to magnify the workpiece image into the software system and is used with advanced software for various measurement functions.

    It performs measurements using powerful software tools to inspect the dimensions, positions, and shapes of the measured parts through microscopy and quality control processes.

    It is widely and effectively used for measurement services at various levels in industries such as electronics, instrumentation, metering, or workshop inspection stations.

    It is functionally applied to cutting tools and gripping devices, precision machine components, fine hardware parts, electronic components, plastic and rubber products, semiconductor components, punching parts, the textile industry, aerospace, etc., and also in colleges, universities, research institutes, mold tooling, automotive, and mechanical assembly industries.

    High-resolution 1/2" color CCD camera and zoom lens for sharp imaging,

    USB interface linear encoder connectivity with professional measurement software,

    Best performance achieved with CNC software equipped with MS Windows analysis capabilities,

    High positioning accuracy in X, Y, and Z axes using servo motors,

    High-quality granite base,

    Programmable LED lighting,

    Automatic geometric element recognition,

    Convenient and easy operation via mouse and joystick (optional),

    Automatic multi-point measurement capability,

    Ability to use different measurement methods depending on part characteristics,

    Easy and efficient measurement of complex parts,

    Programmable CNC operation,

    Ability to define coordinate systems on the part and perform multiple CNC measurements using a single part or fixture,

    Auto-focus feature on the Z-axis for depth detection,

    Ability to assign individual tolerances for each measurement element,

    SPC support within the software for generating tables and histograms, as well as reporting,

    Compatible with CAD-CAM software.

    Resolution 0.0005 mm (0.5μm)
    Power Supply 110Vac - 220Vac 50/60Hz
    Weight 850 kg
    Stage Dimensions 786x636 mm
    Glass Stage Size (mm) 570x470 mm
    Z-Axis Travel (mm) 200 mm
    Measurement Software 2.5D Series
    Video System Object View: 11.1mm - 1.7mm, 0.7~4.5× zoom lens. Total magnification: 20～128× (19.5 inches display, Resolution: 1440×900)
    X/Y Axis Travel 470x370 mm
