    MS18 Ultrasonic Sensor

    MS18 Ultrasonic sensors provide reliable position detection and are used for continuous distance measurement of solid, powder, and liquid materials. It has a measurement range from 250mm to 6000mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

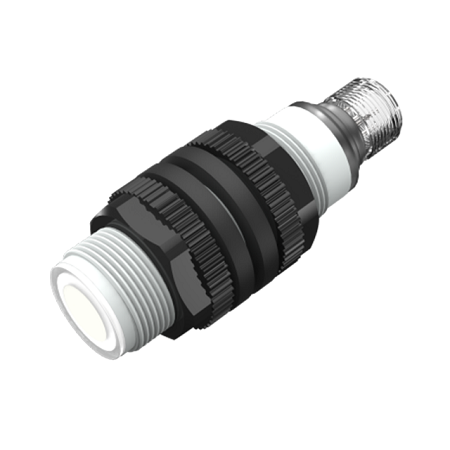

    MS18 ULTRASONIC SENSOR

    MS18 Ultrasonic sensors provide reliable position detection and are used for continuous distance measurement of solid, powder form, and liquid materials.

    Contactless detection occurs independently of the object's color, transparency, surface integrity, or gloss level.

    In environmental conditions with dust, dirt, or mist, the sensor reliably and accurately detects objects.

    Ultrasonic sensors are especially space-saving for use in areas with limited working space.

    Product variants include devices with programmable switch output and analog output.

    The output function, switch point, and measurement area settings are configured by connecting the teach-in input to the voltage supply (line teach).

    Analog signal outputs (0-5Vdc, 0-10Vdc, 4-20mA), NPN, PNP, TTL signals, and control outputs are available.

    Resolution 2mm
    Operating Temperature -40°C ... +80°C
    Electrical Connection M12 4-Pin Socket
    Protection Class IP67
    Repeatability 2.0%
    Linearity ±3%
    Supply Voltage 10-30Vdc ±10%
    Signal Output NPN, PNP, 4-20 mA, 0-5 Vdc, 0-10 Vdc
    Opening Angle ±7°, ±2°
    Measurement Range 250...3500mm, 350...6000mm
